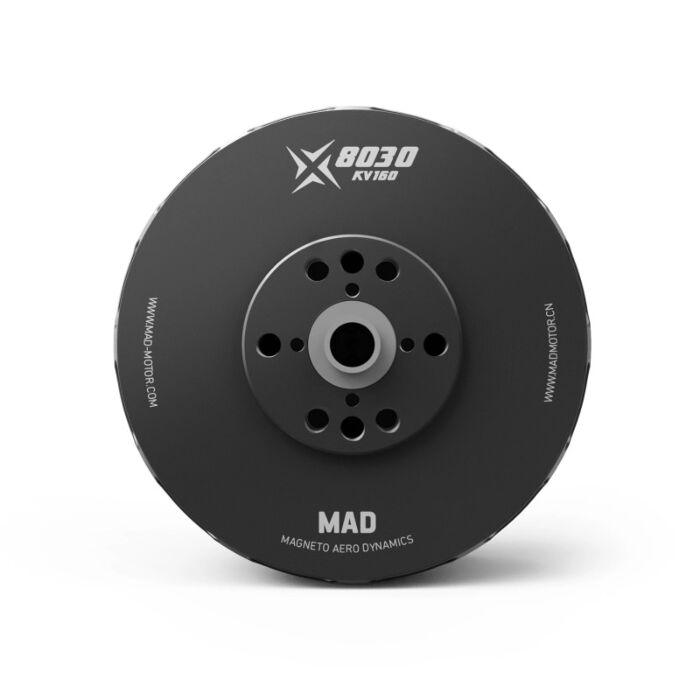

X8030 eVTOL Airplane Drone Motor

As low as: $319.00

only left for same day shipping. Order now!
Model: X8030
Selected SKU: Select options

Options

X8030 eVTOL Airplane Drone Motor
X8030

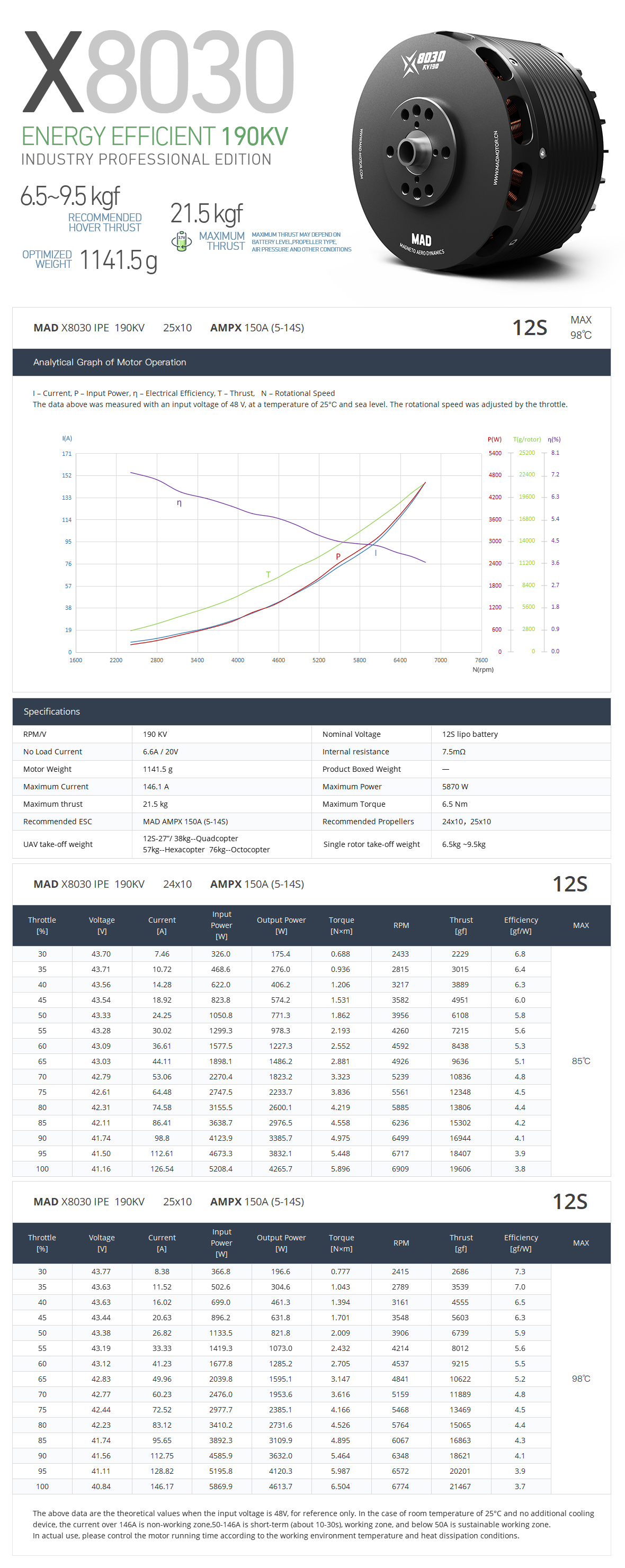

Motor Data
Motor Model MAD X8030 IPE V1.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:90 ×77.15 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 100mm  (extended Enameled wires）
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4,  M10 Nut Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:45 M5×4
Bearing  6900ZZ *3 Disruptive test 1000 V

___________________________________________________________________________________________________________________________

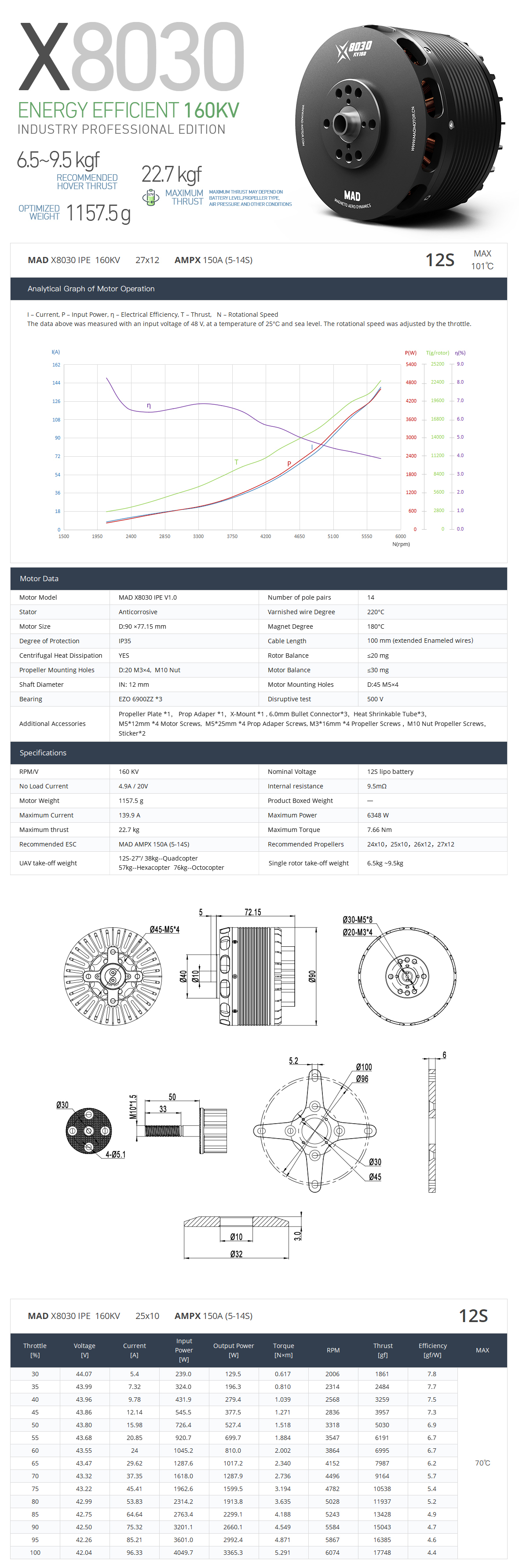

Drawing and mount holes

More Information

Manufacturer MAD
