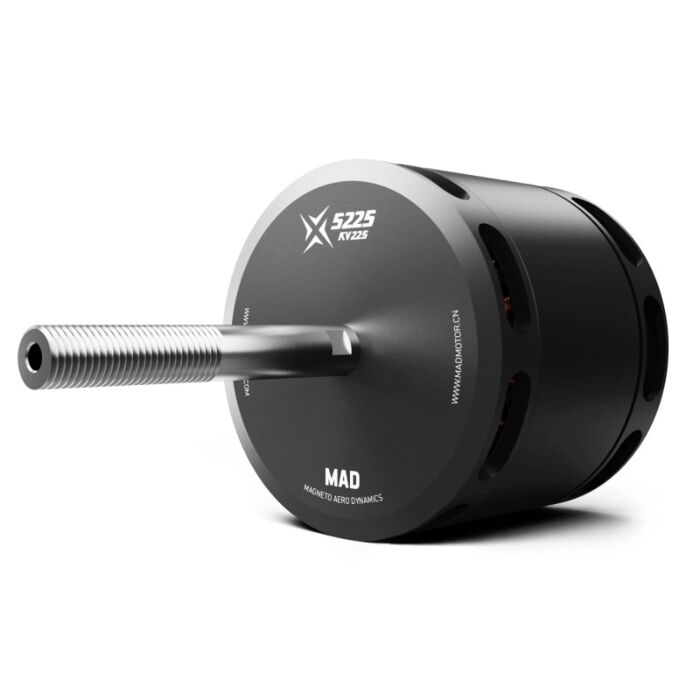

X5225 (Long Shaft) IPE eVTOL Airplane Drone Motor
As low as:
$146.00
As low as:
only left for same day shipping. Order now!
X5225 (Long Shaft) IPE eVTOL Airplane Drone Motor
SPECIFICATION225KV
Motor Data
Motor Model
MAD X5225 IPE V1.0
Number of pole pairs
14
Stator
Anticorrosive
Varnished wire Degree
220°C
Motor Size
D:60 × 111 mm
Motor Balance
180°C
Degree of Protection
IP35
Cable Length
100 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation
YES
Rotor Balance
≤5 mg
Propeller Mounting Holes
M8 Nut
Motor Balance
≤10 mg
Shaft Diameter
IN: 10 mm
Motor Mounting Holes
D:30 M4×4，D:44 M4×4
Bearing
6800*2 6900*1
Disruptive test
500 V
___________________________________________________________________________________________________________________________

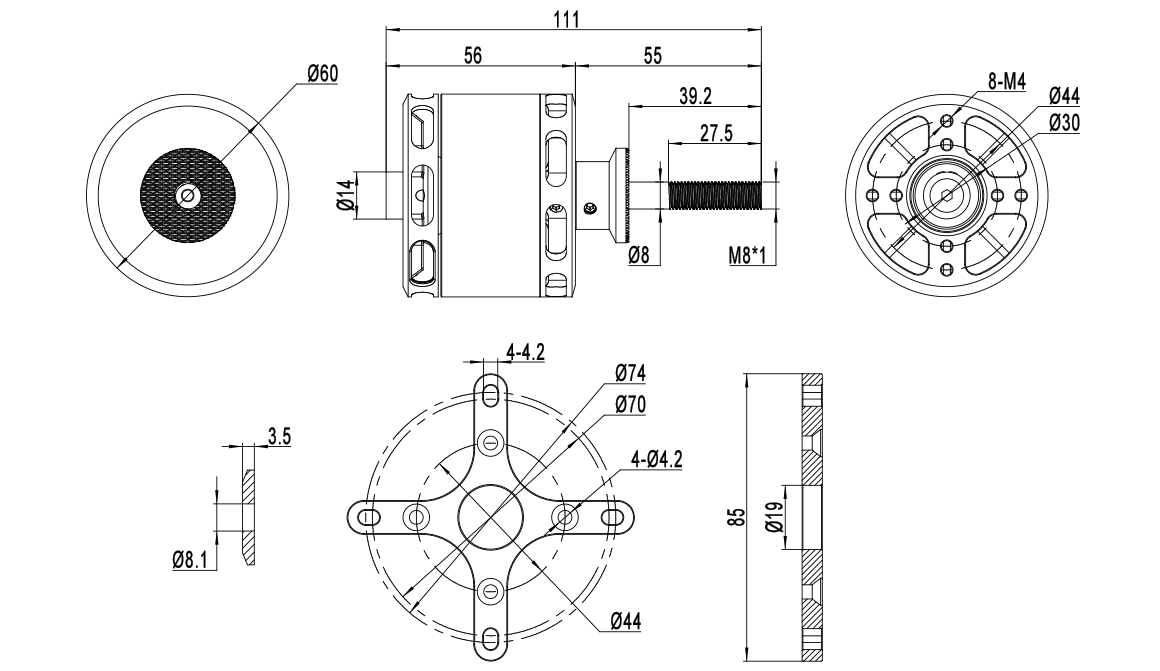

Drawing and mount holes
About this product
Motor Data |
|||
| Motor Model | MAD X5225 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:60 × 111 mm | Motor Balance | 180°C |
| Degree of Protection | IP35 | Cable Length | 100 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | M8 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:30 M4×4，D:44 M4×4 |
| Bearing | 6800*2 6900*1 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
