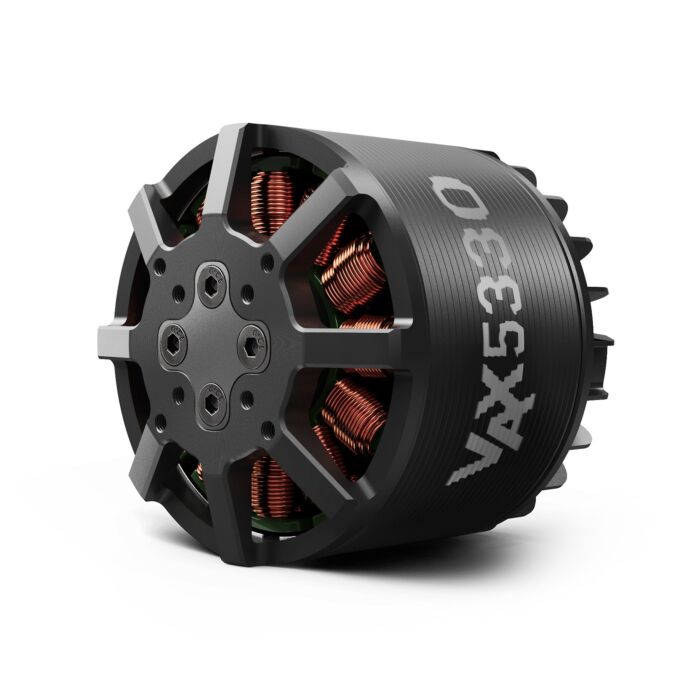

VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
As low as:
$169.00
As low as:
only left for same day shipping. Order now!
VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
SPECIFICATION220KV260KV
Motor Data
Motor Model
MAD VAX 5330 EEE V1.0
Number of pole pairs
Anticorrosive
Stator
Anticorrosive
Varnished wire Degree
180°C
Motor Size
D:61.1 × 84 mm
Magnet Degree
150°C
Degree of Protection
Rain protection
Cable Length
150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation
Independent
Rotor Balance
≤5 mg
Propeller Mounting Holes
D:31 M3×4, D:20 M3×4
Motor Balance
≤10 mg
Shaft Diameter
IN: 8 mm
Motor Mounting Holes
D:30 M4×4, D:44 M4×4
Bearing
688ZZ*2 / 1980*1
Disruptive test
500 V
Drawing and mount holes
About this product
Motor Data |
|||
| Motor Model | MAD VAX 5330 EEE V1.0 | Number of pole pairs | Anticorrosive |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:61.1 × 84 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:31 M3×4, D:20 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | 688ZZ*2 / 1980*1 | Disruptive test | 500 V |
Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
