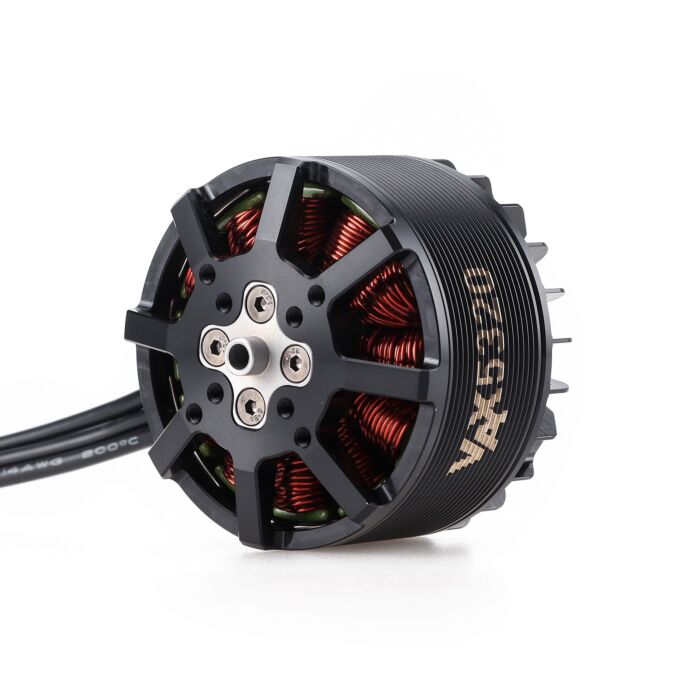

VAX 5320 EVTOL Drone Motor (Short Shaft)
As low as:
$149.00
As low as:
only left for same day shipping. Order now!
VAX 5320 EVTOL Drone Motor (Short Shaft)
VAX 5320 IPE
About this product
Motor Data |
|||
| Motor Model | MAD VAX 5320 EEE V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:61.1 × 51 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:31 M3×4, D:20 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | 688ZZ*2 / 1980*1 | Disruptive test | 500 V |

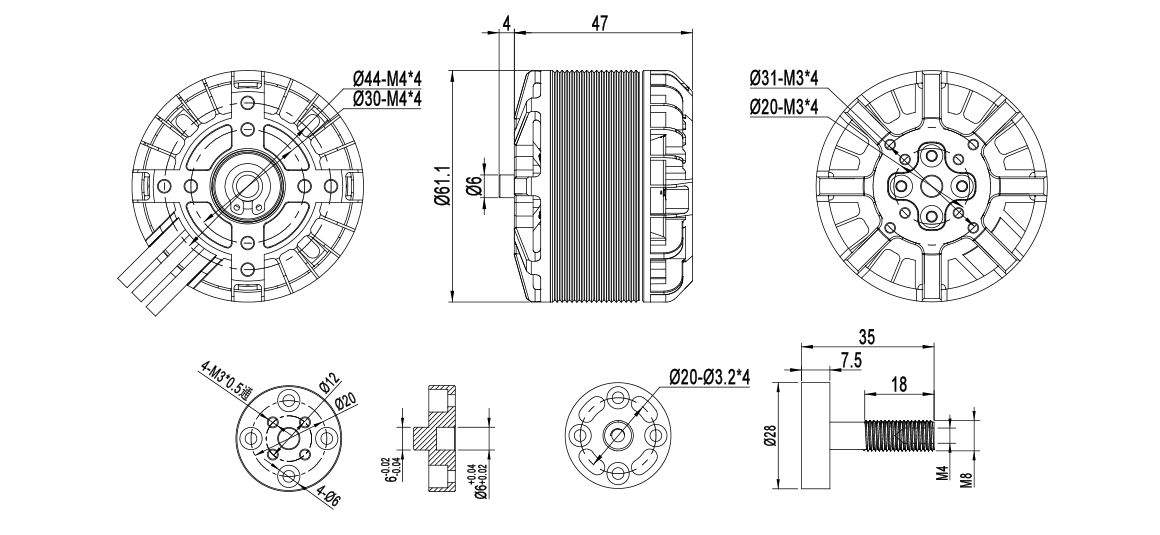

Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
