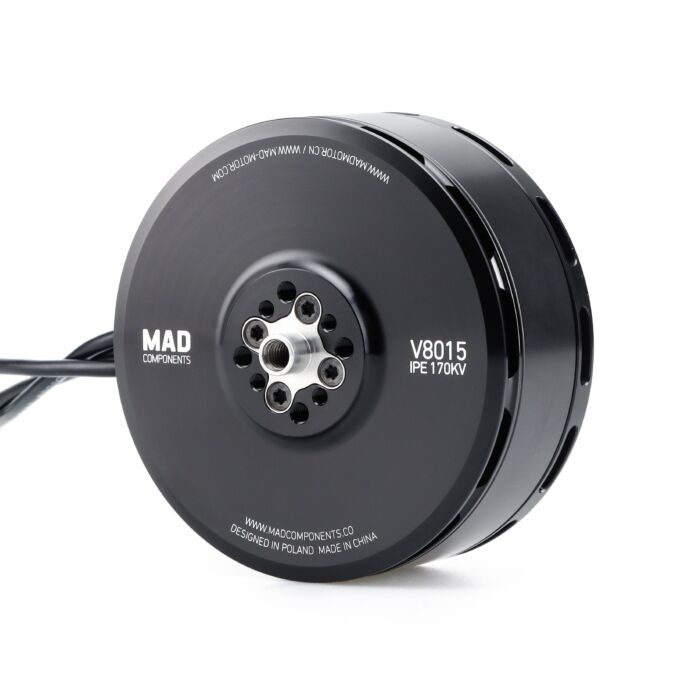

V8015 IPE eVTOL Drone Motor
As low as:
$269.00
As low as:
only left for same day shipping. Order now!
V8015 IPE eVTOL Drone Motor
V8015 motor is the most classic product among eVTOL UAV motors. MAD V8015 IPE is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min. Designed for harsh conditions Oversized durable bearings for extended motor life.
Motor Data |
|||
| Motor Model | MAD V8015 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.5 × 44.2 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 1000 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤25 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6901ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

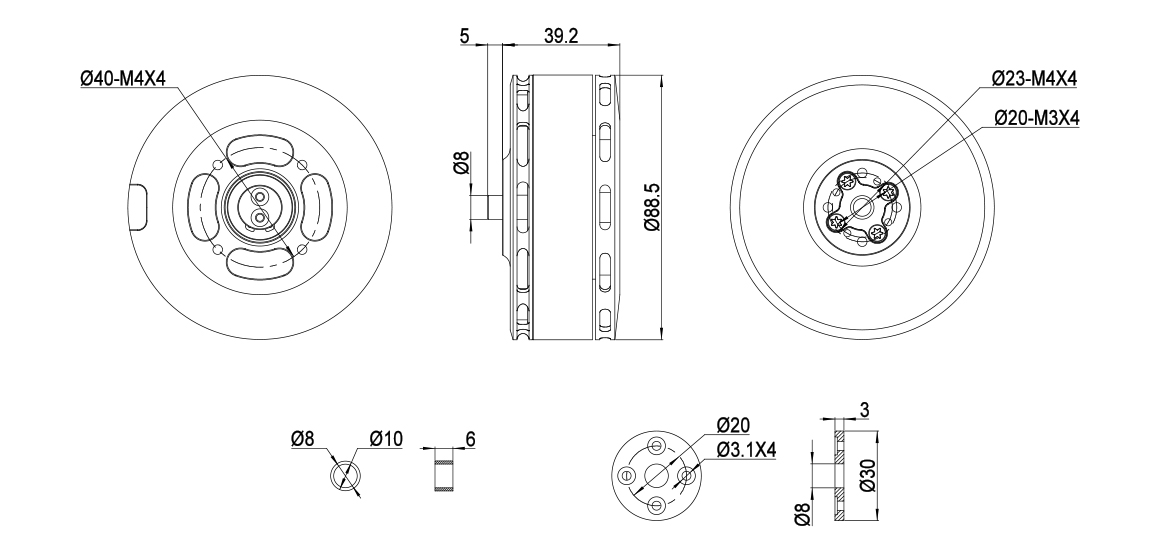

Drawing and mount holes
___________________________________________________________________________________________________________________________

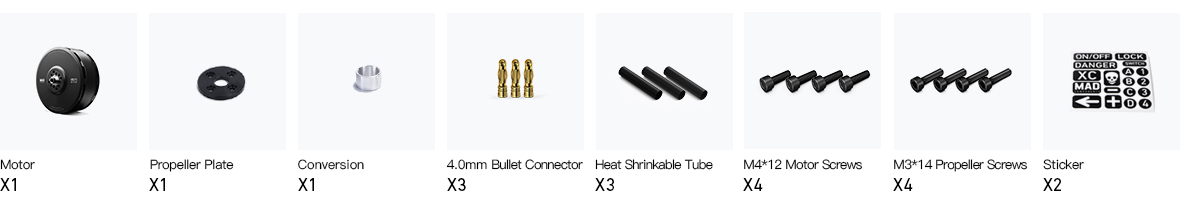

Accessories
| SOLUTION | ||
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| V8015 180KV | Fluxer VTOL 26X7.8 | MAD AMPX 120A (5-14S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 rotors) |
| 12S(单节4.3V)/42-52V | 6kg ~ 8kg | 28kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
