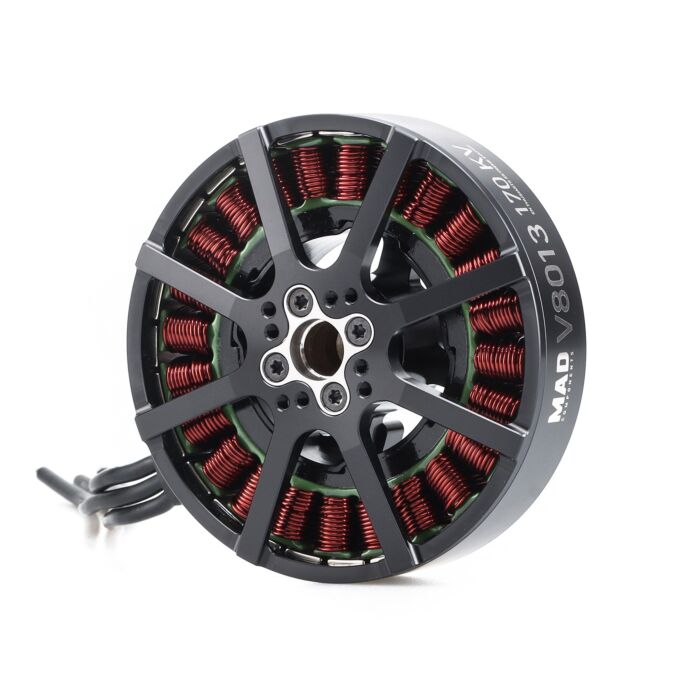

V8013 EEE eVTOL Drone Motor
As low as:
$259.00
As low as:
only left for same day shipping. Order now!
V8013 EEE eVTOL Drone Motor
V8013 EEE
About this product
Motor Data |
|||
| Motor Model | MAD V8013 EEE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.5 × 36.3 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:25 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6901ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

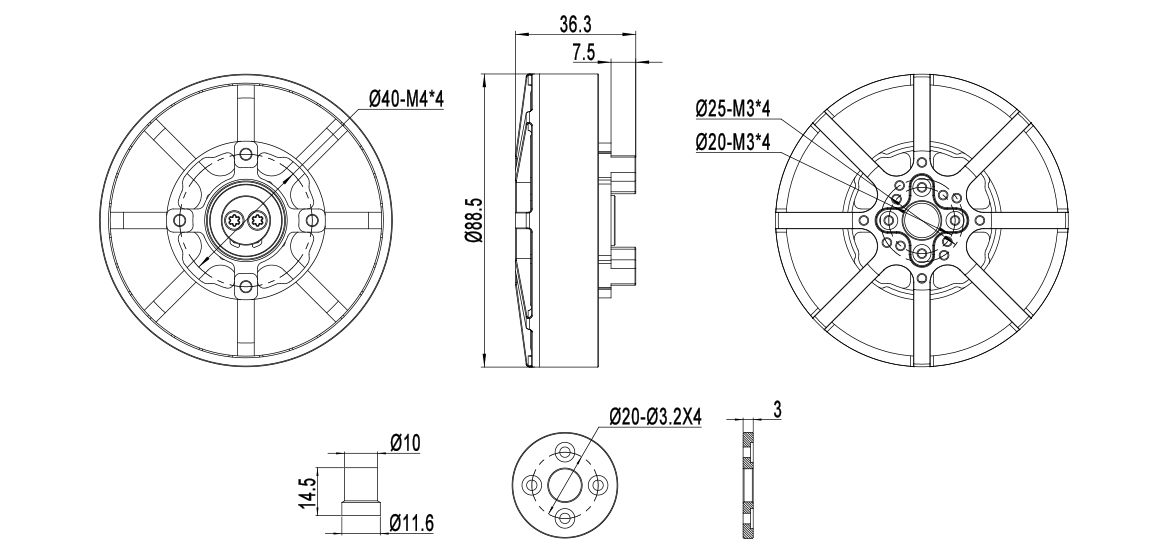

Drawing and mount holes
___________________________________________________________________________________________________________________________

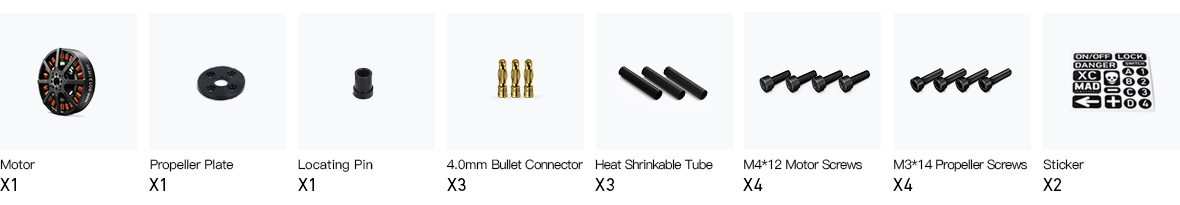

Accessories
More Information
| Manufacturer | MAD |
|---|
