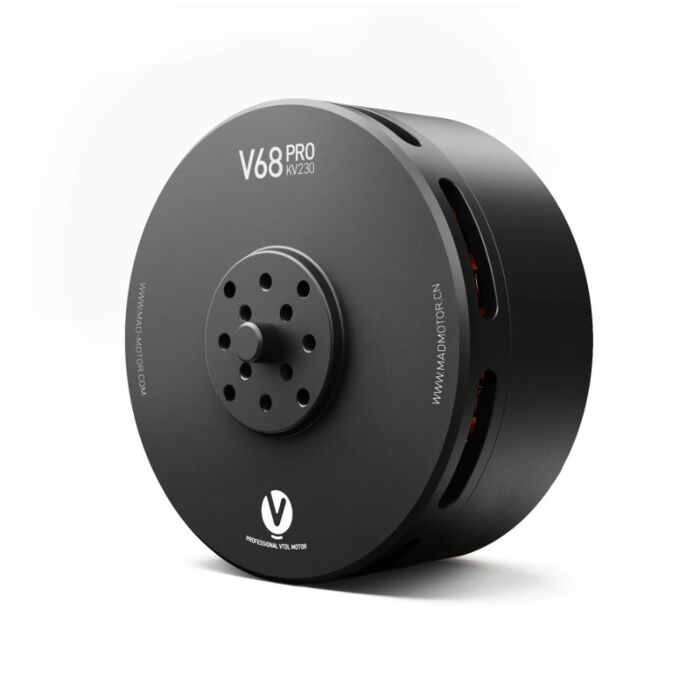

V68 Pro IPE eVTOL Drone Motor

As low as: $179.00

only left for same day shipping. Order now!

V68

Motor Data
Motor Model	MAD V68 PRO IPE V1.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	150°C
Motor Size	D:72 × 43.5 mm	Motor Balance	150°C
Degree of Protection	IP35	Cable Length	80 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, 18 M3×4, 22 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 12 mm	Motor Mounting Holes	D:25 M3×4, D:30 M4×4
Bearing	6801ZZ*2	Disruptive test	500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes___________________________________________________________________________________________________________________________

More Information

Manufacturer	MAD
