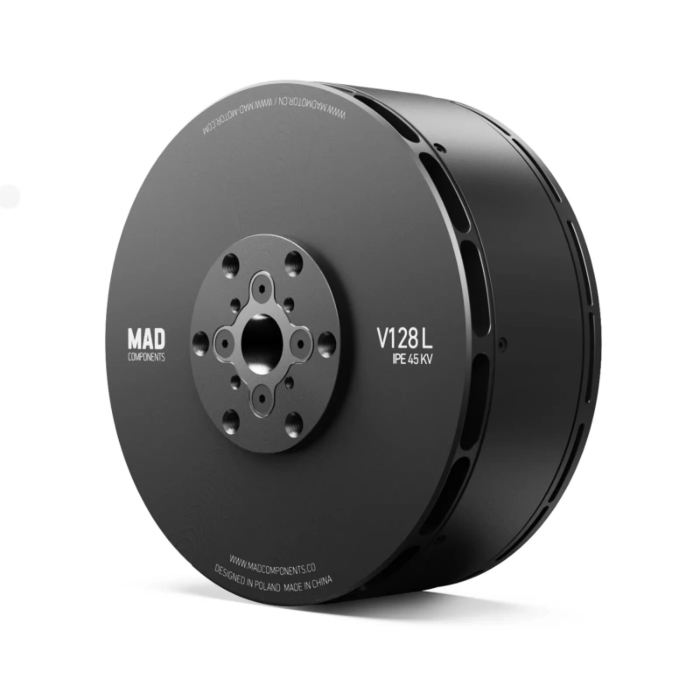

V128L eVTOL Drone Motor
As low as:
$689.00
As low as:
only left for same day shipping. Order now!
V128L eVTOL Drone Motor
Designed to carry payloads of 20-26kg per rotor, with 47.5″ carbon propeller. Max thrust is up to 50kg per rotor, unit motor weighs only 1910g. with large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional aerial UAVs.
Motor Data |
|||
| Motor Model | MAD V128L IPE V2.0 | Number of pole pairs | 19 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:144.6 × 59 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:50 M6×6 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 20 mm | Motor Mounting Holes | D:50 M6×4 |
| Bearing | 6904ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

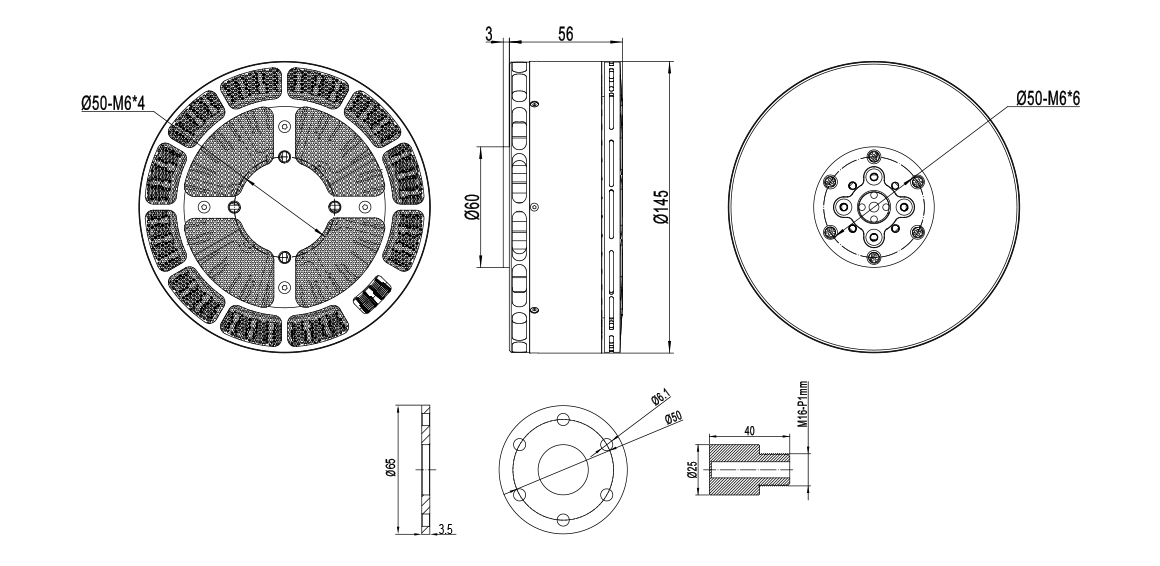

Drawing and mount holes
___________________________________________________________________________________________________________________________

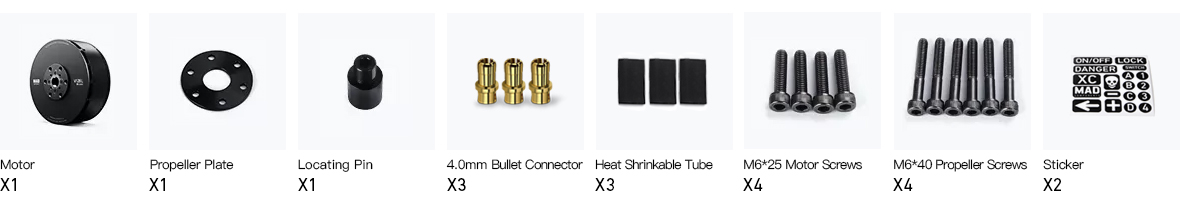

Accessories
More Information
| Manufacturer | MAD |
|---|
