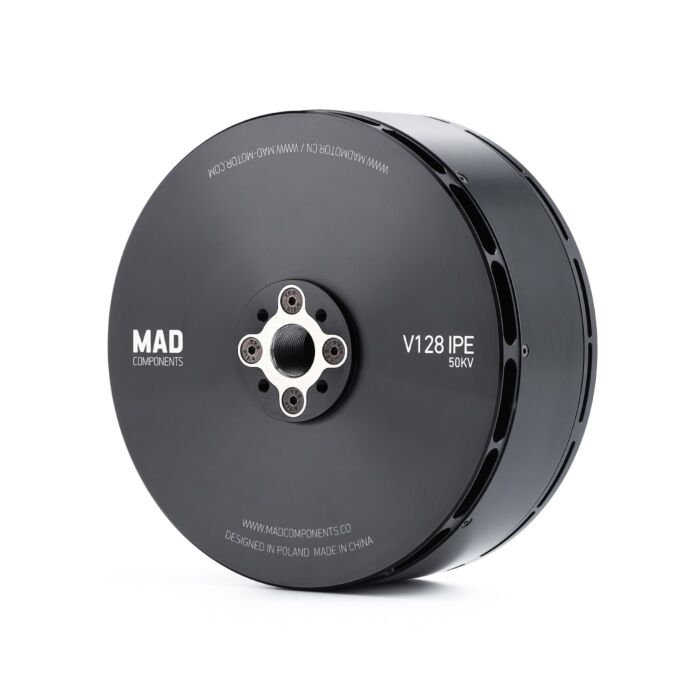

V128 EVTOL Drone Motor
As low as:
$689.00
As low as:
only left for same day shipping. Order now!
V128 EVTOL Drone Motor
✔ Heavy Lift Capacity: Up to 62kg max thrust （continue thrust 20-27kg) per rotor✔ Lightweight Design: Motor weighs only 1910g✔ Endurance-Optimized: High-efficiency carbon fiber propellers✔ Customizable: Optional ENCR (Electronic Control)✔ Reliable & Durable: Ideal for demanding aerial missions
Motor Data |
|||
| Motor Model | MAD V128 IPE V2.0 | Number of pole pairs | 19 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:145 × 59 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:24 M4×4，D:30 M5×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 20 mm | Motor Mounting Holes | D:50 M6×4 |
| Bearing | 6904ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

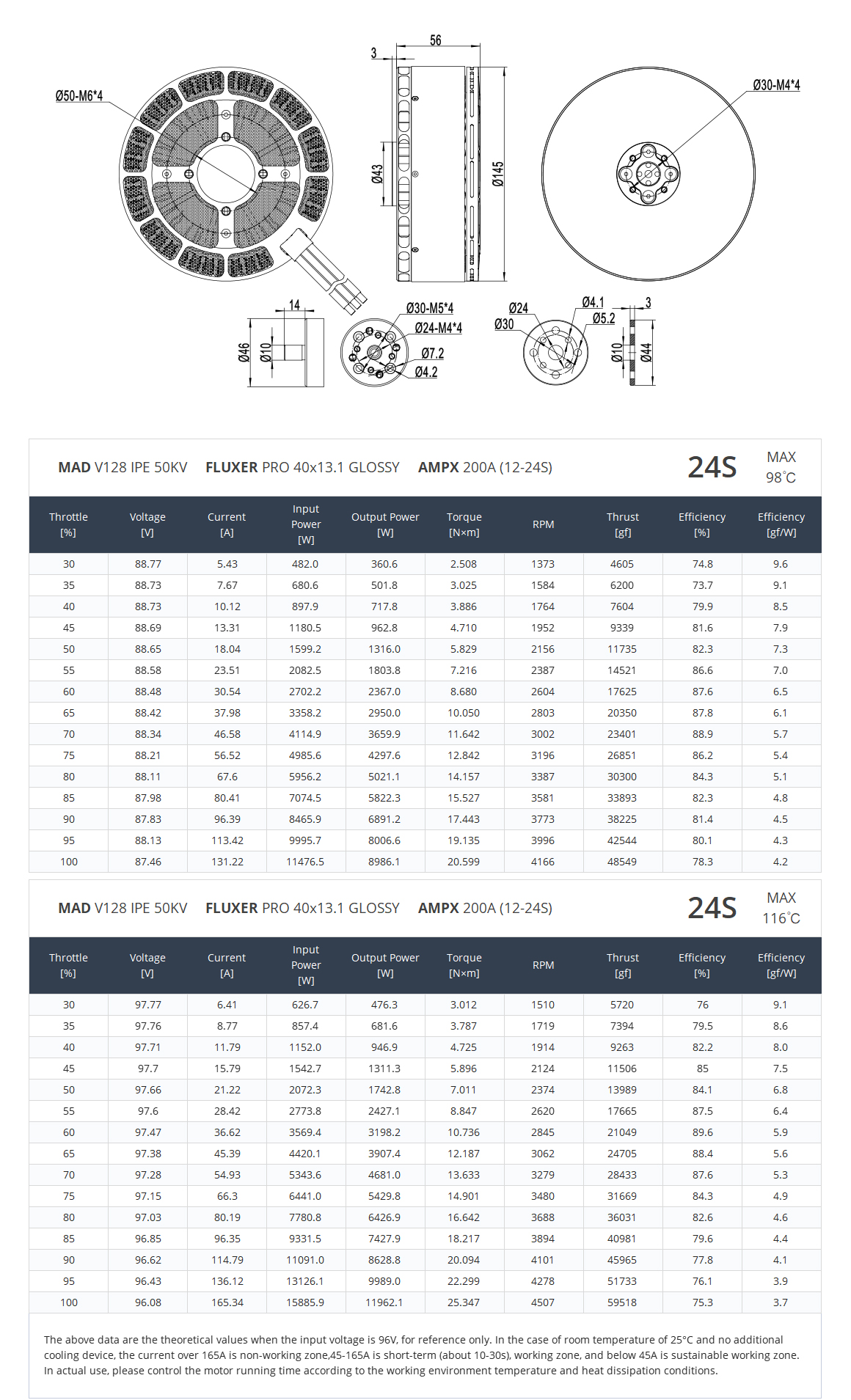

Drawing and mount holes
___________________________________________________________________________________________________________________________

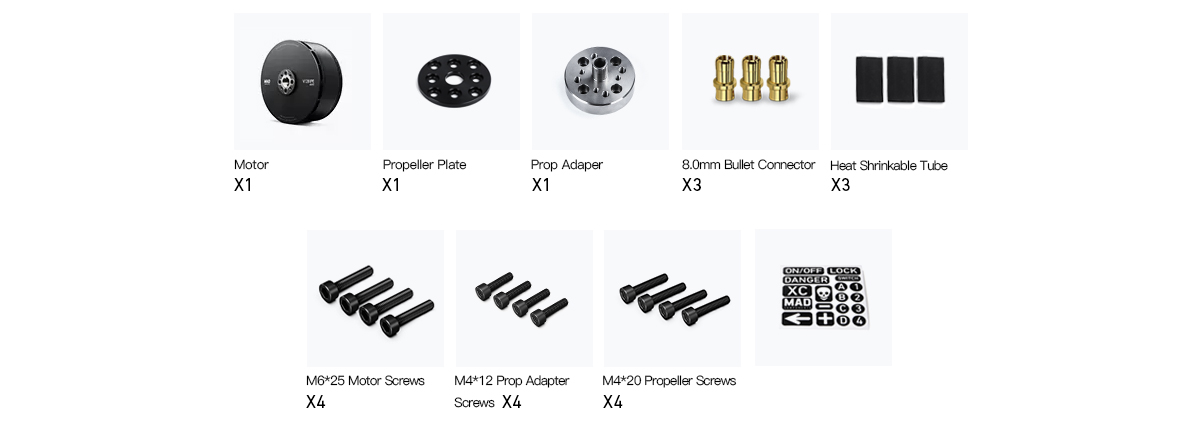

Accessories
More Information
| Manufacturer | MAD |
|---|
