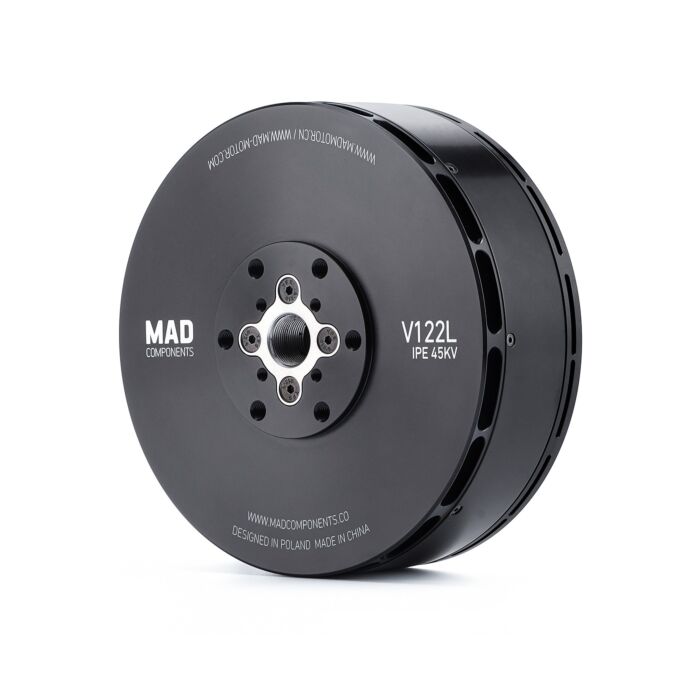

V122L eVTOL Drone Motor
As low as:
$669.00
As low as:
only left for same day shipping. Order now!
V122L eVTOL Drone Motor
Designed to carry payloads of 18-21kg (39.6bl-46.29bl) per rotor, with 47.5″ carbon propeller. Max thrust is up to 50kg(110.23bl) per rotor, unit motor weighs only 1620g. With large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVs.

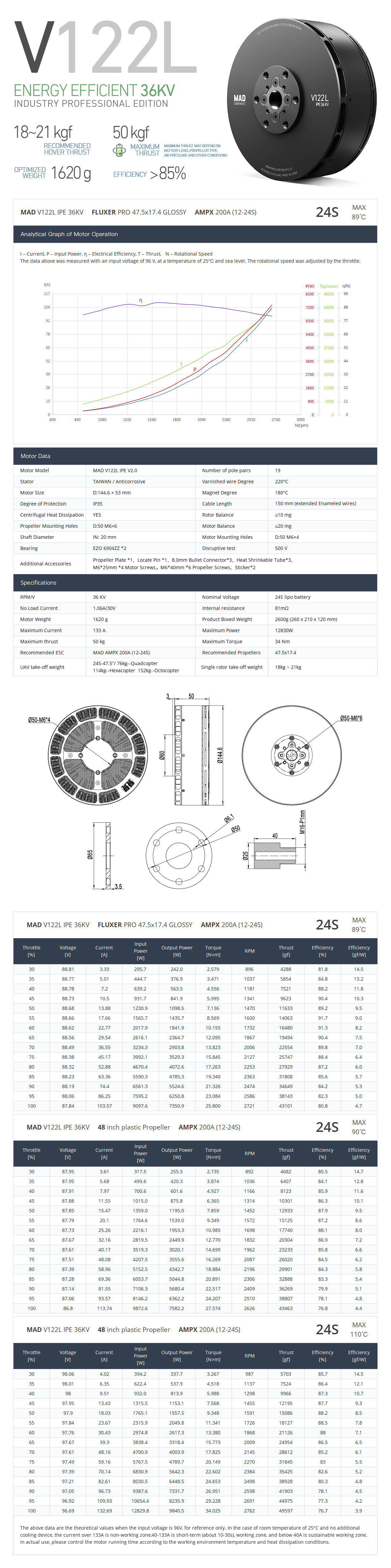

Motor Data |
|||
| Motor Model | MAD V122L IPE V2.0 | Number of pole pairs | 19 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:144.6 × 53 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:50 M6×6 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 20 mm | Motor Mounting Holes | D:50 M6×4 |
| Bearing | 6904ZZ*2 | Disruptive test | 500 V |

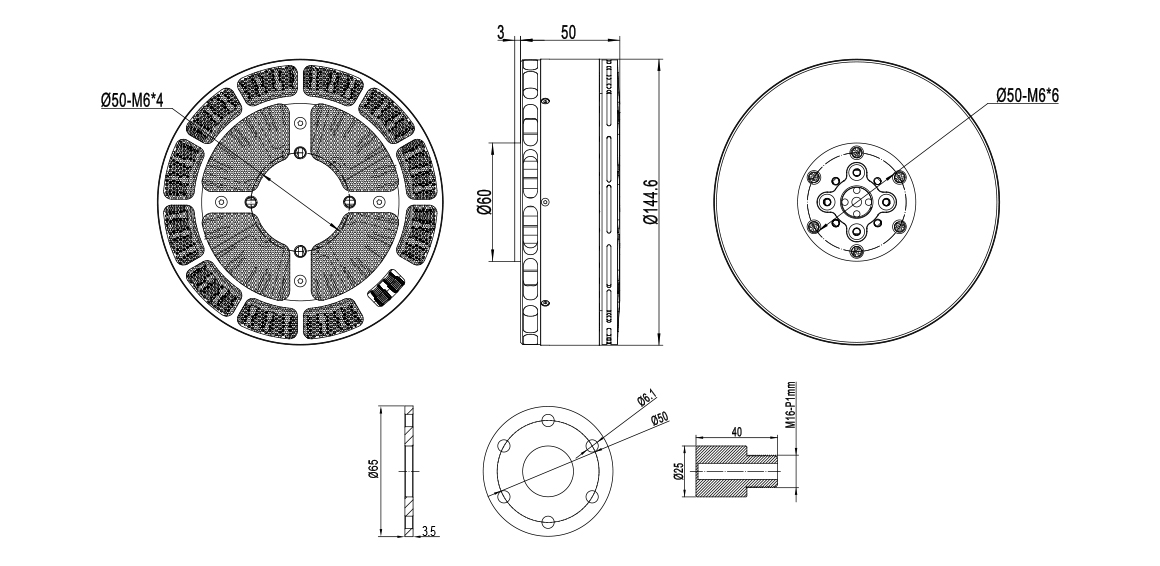

Drawing and mount holes
___________________________________________________________________________________________________________________________

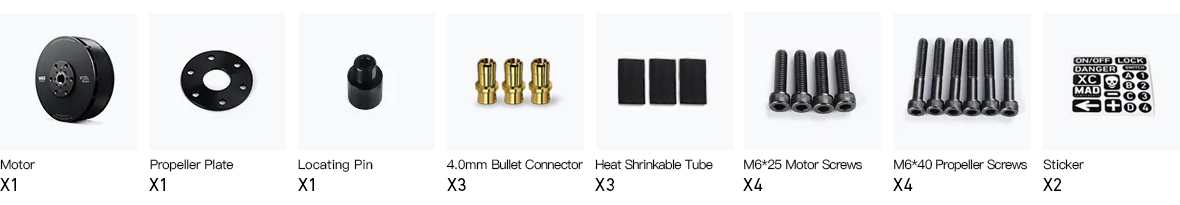

Accessories
More Information
| Manufacturer | MAD |
|---|
