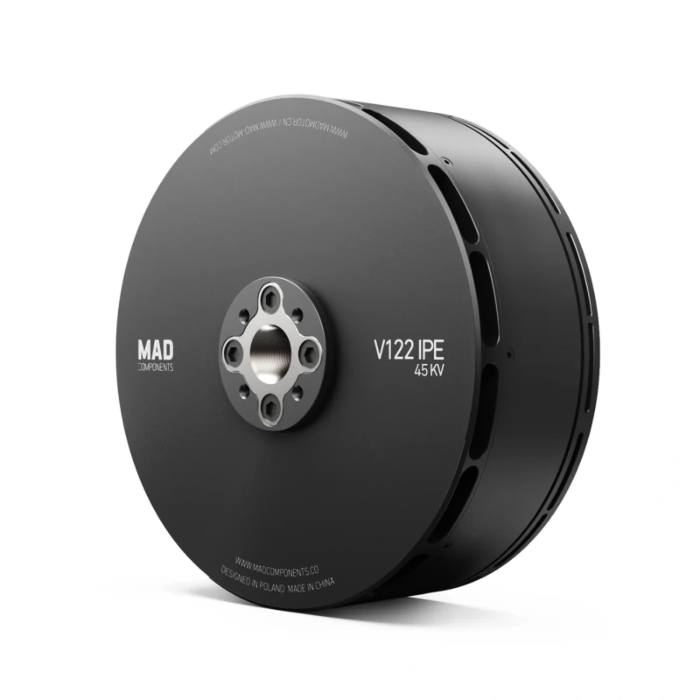

V122 eVTOL Drone Motor
As low as:
$669.00
As low as:
only left for same day shipping. Order now!
V122 eVTOL Drone Motor
Designed to carry payloads of 16-20kg per rotor, with 42″ carbon propeller. Max thrust is up to 48kg(105.8bl) per rotor, unit motor weighs only 1600g. With large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAV.

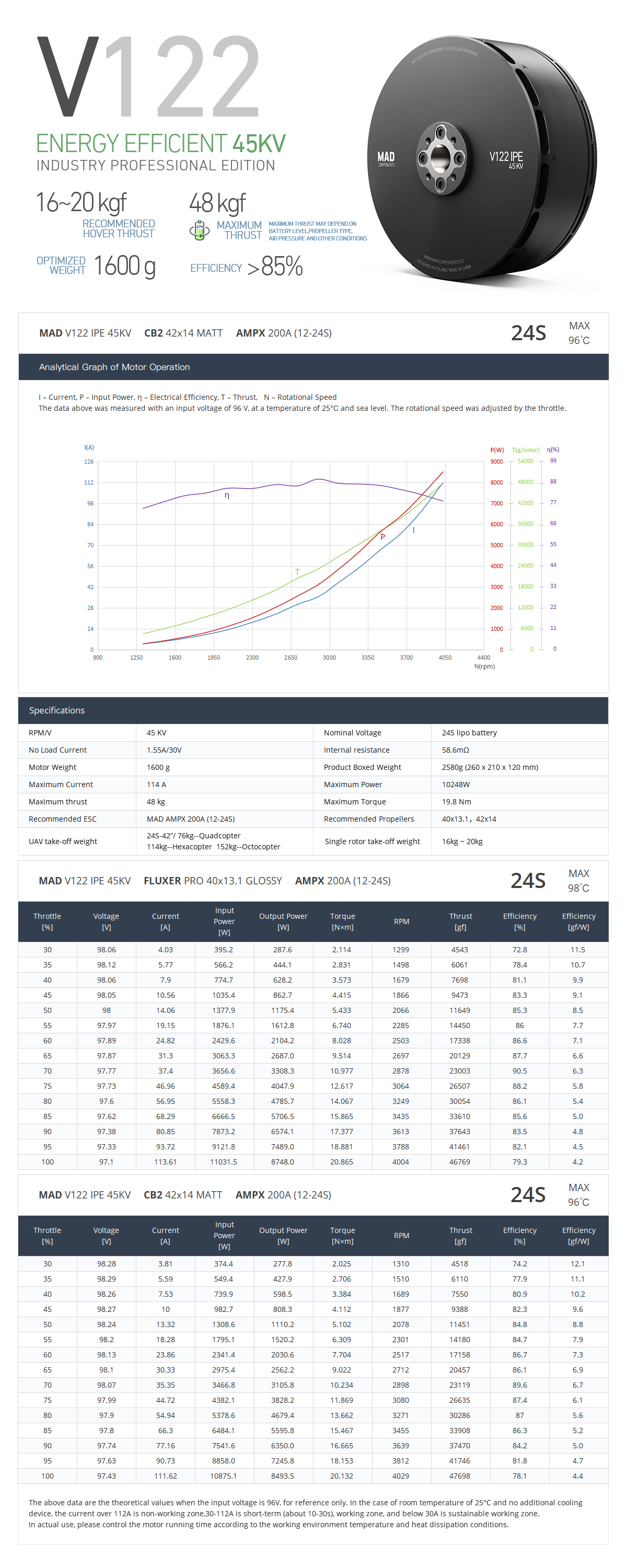

Motor Data |
|||
| Motor Model | MAD V122 IPE V2.0 | Number of pole pairs | 19 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:145 × 53 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:24 M4×4，D:30 M5×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 20 mm | Motor Mounting Holes | D:50 M6×4 |
| Bearing | 6904ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
___________________________________________________________________________________________________________________________

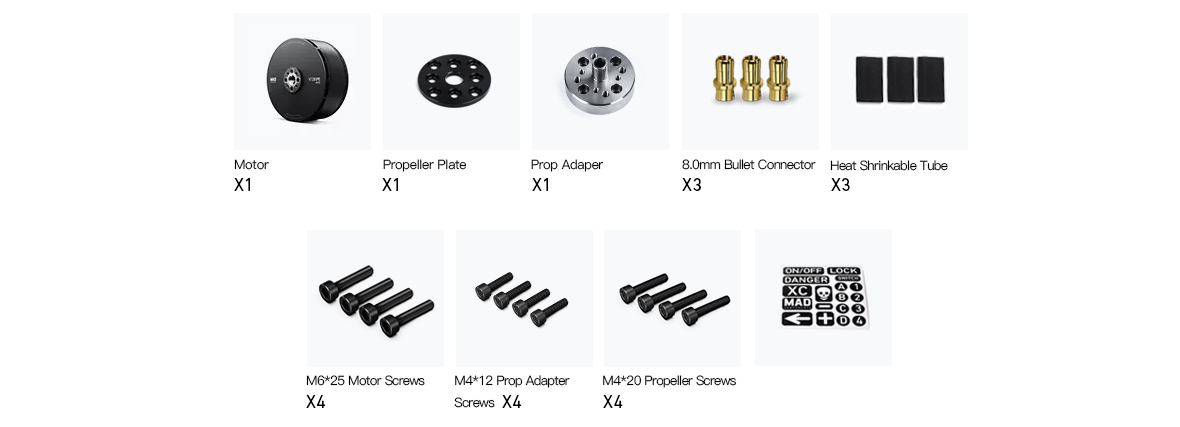

Accessories
More Information
| Manufacturer | MAD |
|---|
