V105 IPE VTOL Drone Motor
As low as:
$379.00
As low as:
only left for same day shipping. Order now!
V105 IPE VTOL Drone Motor
Designed to carry payloads of 10-13kg per rotor, with 30″ carbon propeller. Max thrust is up to 30.4kg per rotor, unit motor weighs only 999g. With large pitch EVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVS.
Motor Data |
|||
| Motor Model | MAD V105 IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:108.6 × 49.9 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:24 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 20 mm | Motor Mounting Holes | D:50 M5×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
___________________________________________________________________________________________________________________________

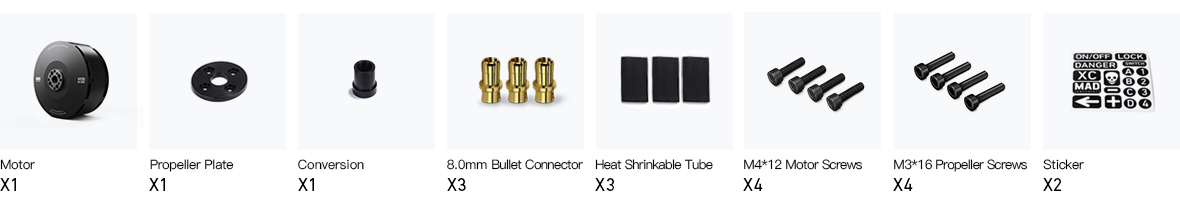

Accessories
More Information
| Manufacturer | MAD |
|---|
