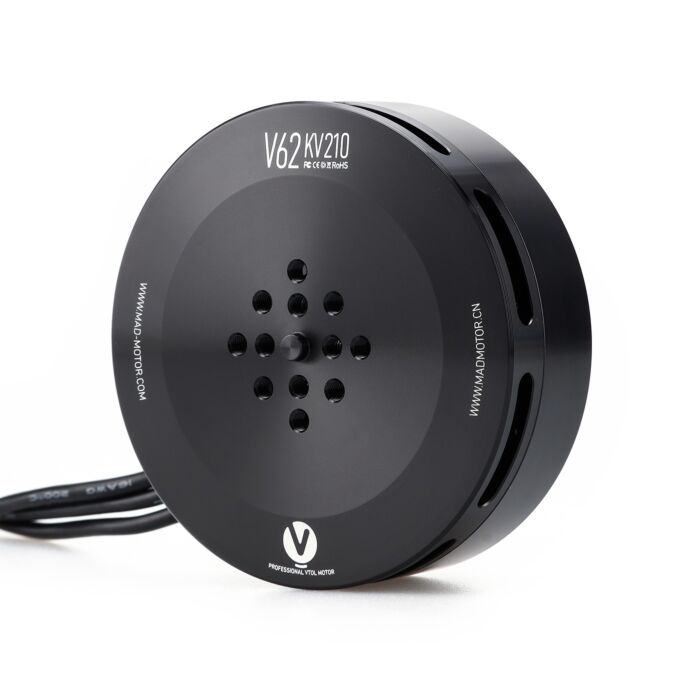

MAD V62 eVTOL Drone Motor
As low as:
$169.00
As low as:
only left for same day shipping. Order now!
MAD V62 eVTOL Drone Motor
Built for 15-20kg MTOW professional industrial eVTOL fixed-wing UAS, with large pitch eVOTL CF 18-22" propellers, achieving high payload, high efficiency and excellent reliability, providing reliable power support for various endurance flights. Max thrust is up to 11.5kg per rotor, unit motor weighs only 270g.
Motor Data |
|||
| Motor Model | MAD V62 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 33.5 mm | Motor Balance | 150°C |
| Degree of Protection | IP35 | Cable Length | 80mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:25 M3×4, D:30 M3×4 |
| Bearing | 6801ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

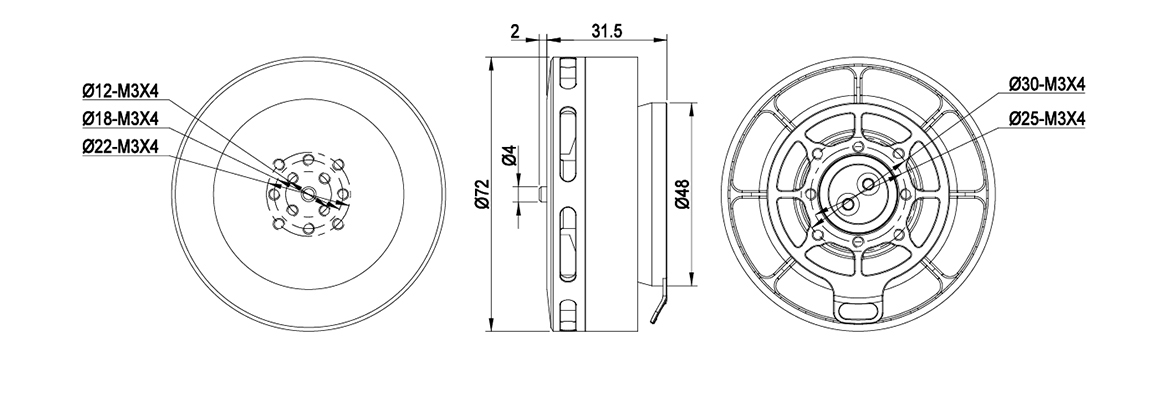

Drawing and mount holes
___________________________________________________________________________________________________________________________

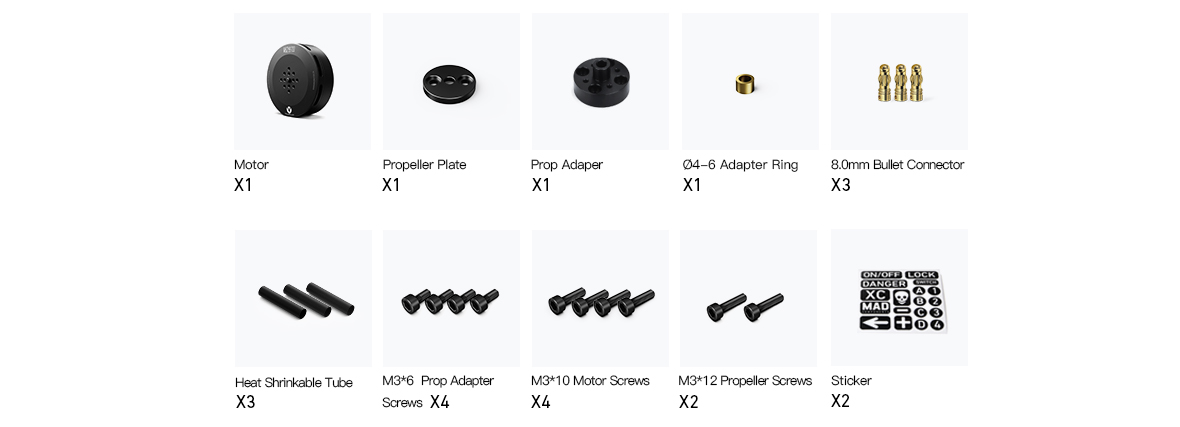

Accessories
More Information
| Manufacturer | MAD |
|---|
