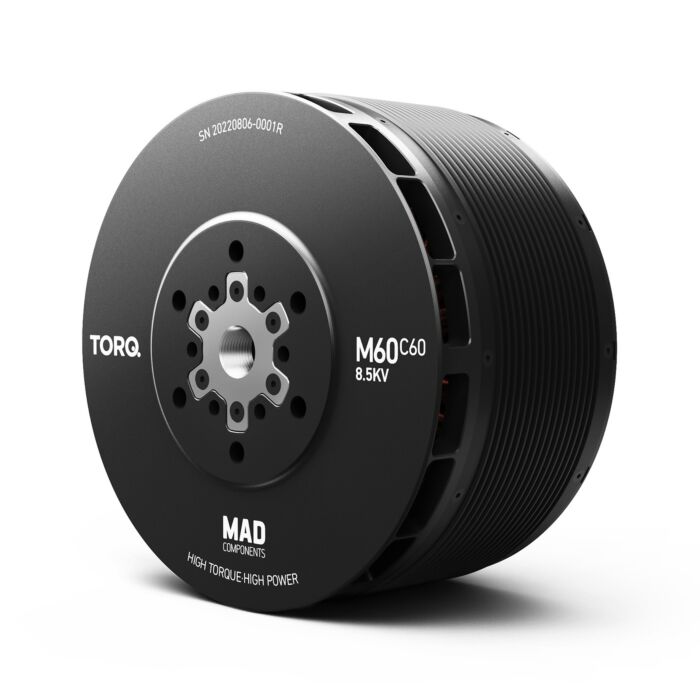

MAD M60C60 PRO IPE 8.5KV Drone Motor
$3,600.00
only left for same day shipping. Order now!
- It has a power output of 46 kW, equivalent to 62hp.
- Recommended ESC and propeller: 72x25-inch propeller
This item has been discontinued.
If you need it,please purchase the upgraded AM90 8.5KV Motor to replace it.
About this product
Motor Data |
|||
| Motor Model | MAD M60C60 IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:196.8 ×130 mm | Magnet Degree | 180°C |
| Degree of Protection | IP45 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤20 mg |
| Propeller Mounting Holes | D:75 M8×6 D:50 M6*6 | Motor Balance | ≤30 mg |
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:80 M6×6 |
| Bearing | NSK 6205 ZZ *2 NSK 61822 ZZ *1 | Disruptive test | 2000 V |
___________________________________________________________________________________________________________________________

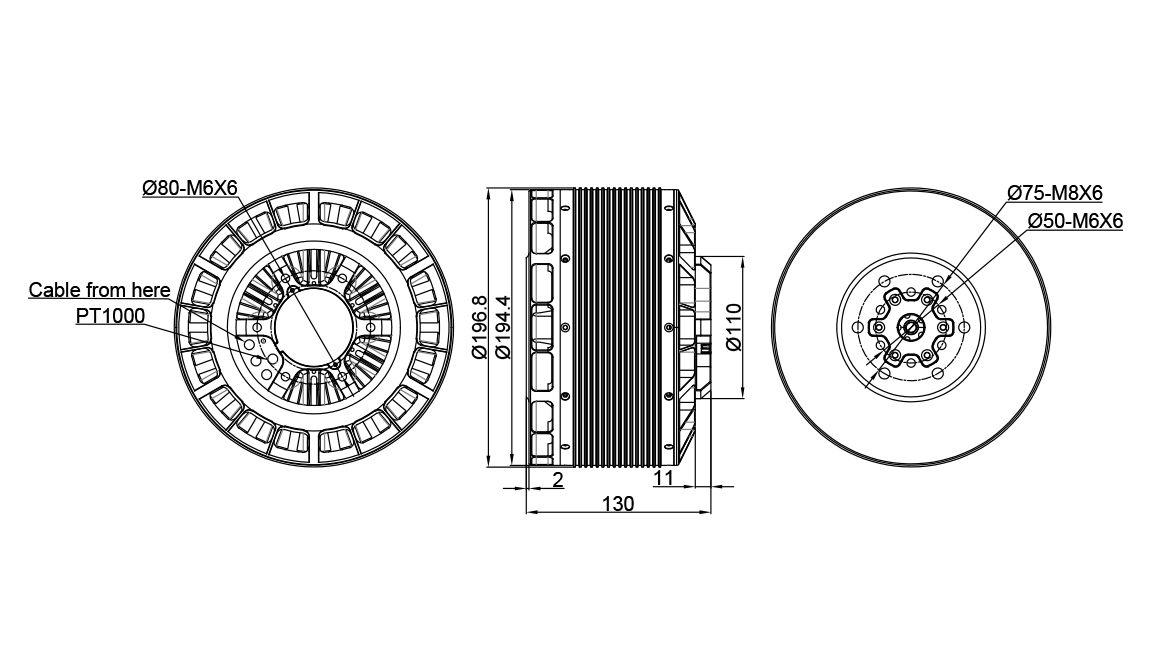

Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
