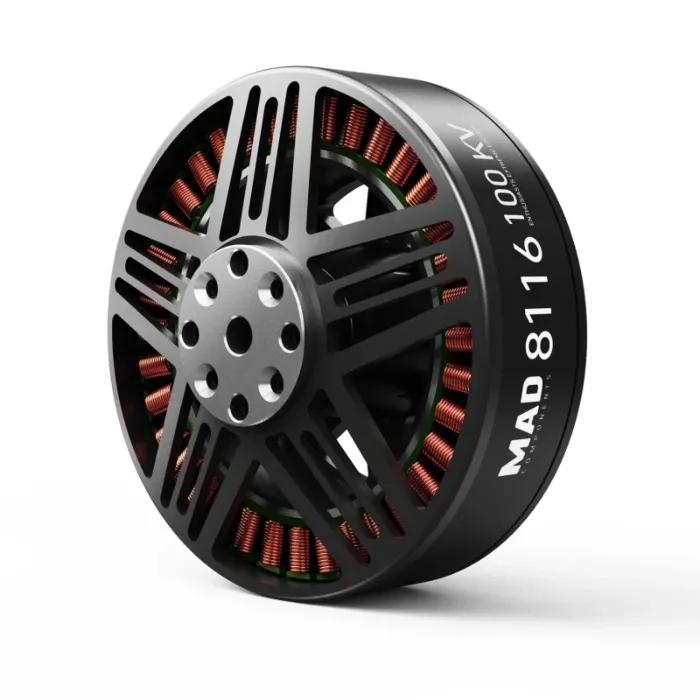

MAD 8116 EEE brushless drone motor 100KV

$255.00

only left for same day shipping. Order now!

The MAD 8116 EEE is a high-torque, 460g single-axis motor designed to deliver exceptional efficiency and up to 11.5kg of maximum thrust for 4000–5000g payloads. Optimized for 28–32 inch carbon fiber propellers, its reliable and compact structure makes it perfect for demanding industrial prototypes, robotic arms, and experimental UAV systems. It serves as the ideal high-performance stepping stone for users looking to transition to advanced M9C12 100KV or 90KV models.

Positioning:
• The MAD 8116 EEE is designed for single-axis loads of 4000–5000g
• It is optimized for use with 28–32 inch carbon fiber propellers
• With a single motor weight of 460g, it delivers a maximum thrust of up to 11.5kg per axis
• Originally designed to deliver similar efficiency to the 8108 series with added torque

Key Features:
✔ Reliable structure with proven performance in various industrial prototypes
✔ Designed to meet demand for both efficiency and enhanced thrust
✔ Compatible with custom applications where compact yet powerful motors are required

Perfect for:
• Robotic arm prototypes and experimental UAV systems
• Users transitioning to M9C12 100KV or 90KV models for upgraded performance

Downloads: STP File

Motor Data
Motor Model	MAD 8116 EEE V1.0	Number of pole pairs	21
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:87.2 × 42 mm	Magnet Degree	150°C
Degree of Protection	Rain protection	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:23 M4×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 15 mm	Motor Mounting Holes	D:30 M3×4, D:32 M4×4, D:50 M3×4
Bearing	6802ZZ*2	Disruptive test	500 V
