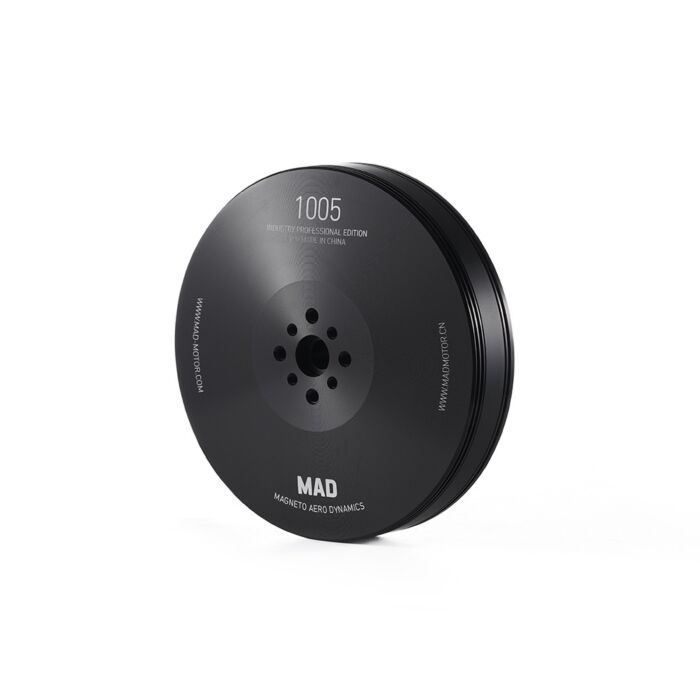

MAD 1005 IPE Drone Motor
1005 IPE
About this product
About 1005 IPE Drone Motor
Positioning:
• Designed for 3.5–4.5 kg single-axis payloads with 32-inch carbon fiber propellers
• Built for professional long-endurance drone missions requiring stable thrust and reliability
Key Features:
✔ Up to 10.1 kg maximum thrust per axis
✔ 12g/W efficiency
✔ Over 1000 hours of verified service life
✔ Precision-built with imported aerospace-grade aluminum
✔ Motor weight: 320g
✔ Recommended ESC: FOC 60A 12S ，AMPX 40A(5-14)s.
Perfect for:
• Industrial UAVs.
• Drones carrying medium-to-heavy payloads.
• Builders prioritizing durability and high-efficiency performance.

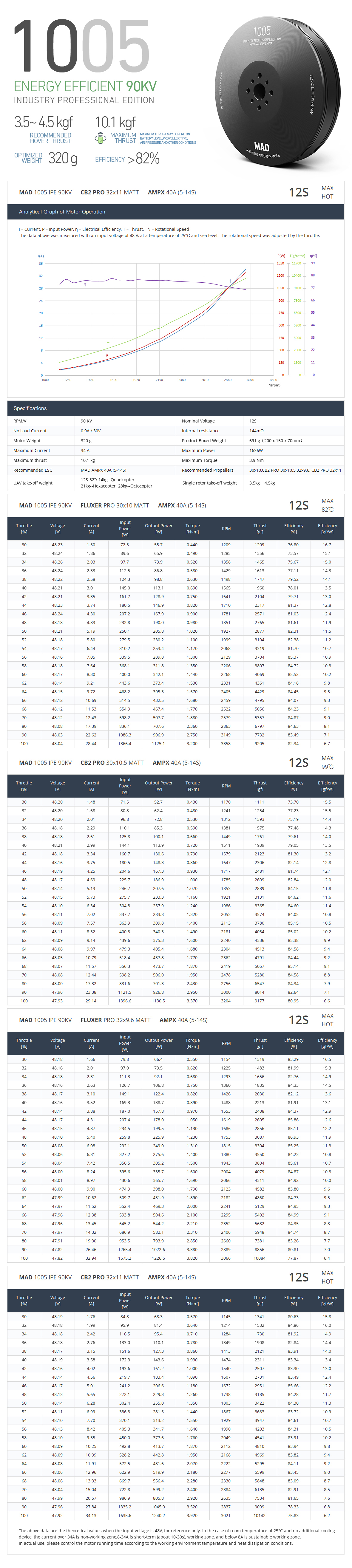

| Specification |
|||||||||
| Motor Model |
MAD1005 IPE |
Number of pole pairs |
21 | ||||||
| Stator |
TAIWAN / Anticorrosive | Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:107× 22.5mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
100 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:20 M3×4,D:23 M4x4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 17mm |
Motor Mounting Holes |
D:32 M4×4 | ||||||
| Bearing | EZO 6803ZZ*2, EZO 6706-2RU |
Disruptive test |
500 V |
||||||
Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
