MAD 1005 EEE Drone Motor
As low as:
$175.00
As low as:
only left for same day shipping. Order now!
About this product

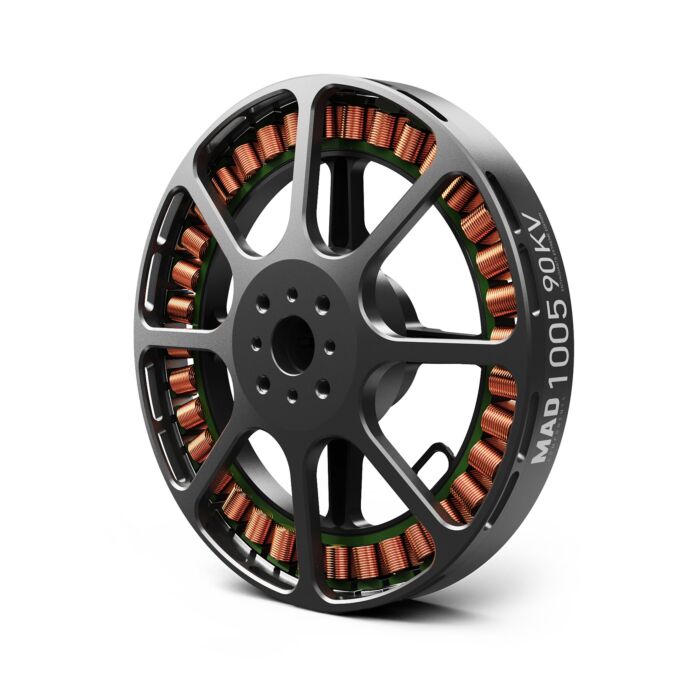

About 1005 EEE Drone Motor
Positioning:
• High-efficiency motor built for 3.5–4.5 kg single-axis payloads with 32-inch carbon fiber propellers
• Ideal for professional drones requiring lightweight build and extended service life
Key Features:
✔ Up to 10.1 kg maximum thrust
✔ 12g/W efficiency at 3 kg thrust with 30–32 inch propellers
✔ 279g motor weight, crafted from imported aerospace-grade aluminum
✔ Over 1000 hours of service life
✔ Recommended ESC: FOC 60A 12S ，AMPX 40A(5-14)s.
Perfect for:
• Long-endurance UAVs
• Drones carrying mid-to-heavy payloads
• Builders focused on efficient, durable propulsion systems
| Specification |
|||||||||
| Motor Model |
MAD1005 EEE |
Number of pole pairs |
21 | ||||||
| Stator |
TAIWAN / Anticorrosive | Varnished wire Degree |
180°C | ||||||

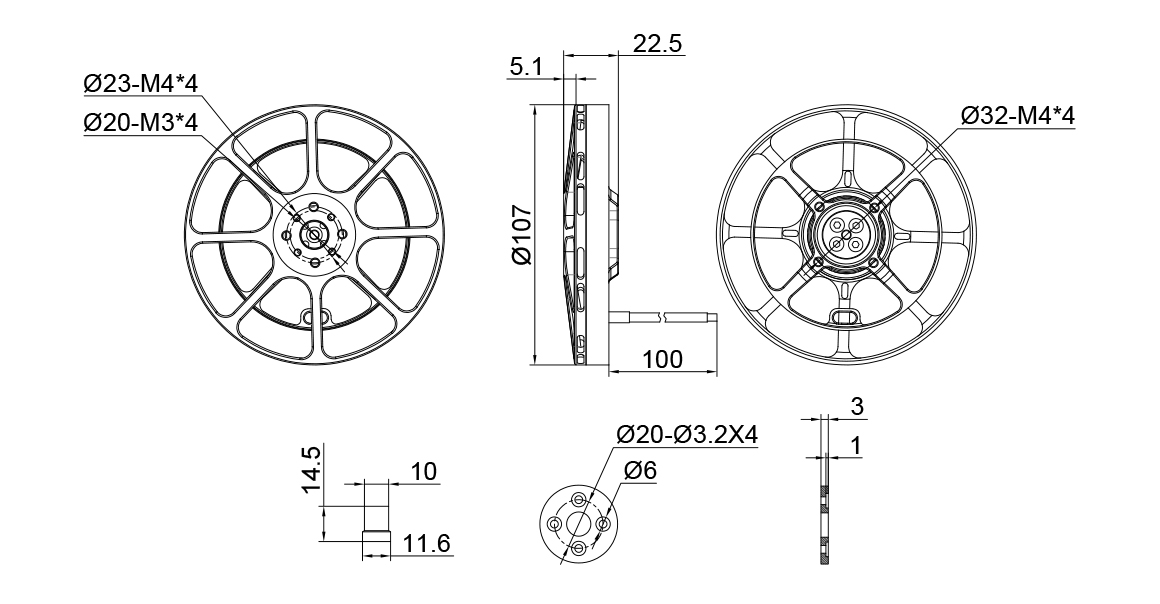

| Motor Size |
D:107× 22.5mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
100 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:20 M3×4,D:23 M4x4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 17mm |
Motor Mounting Holes |
D:32 M4×4 | ||||||
| Bearing | EZO 6803ZZ*2, EZO 6706-2RU |
Disruptive test |
500 V |
||||||
___________________________________________________________________________________________________________________________
|
|||||||||
More Information
| Manufacturer | MAD |
|---|
