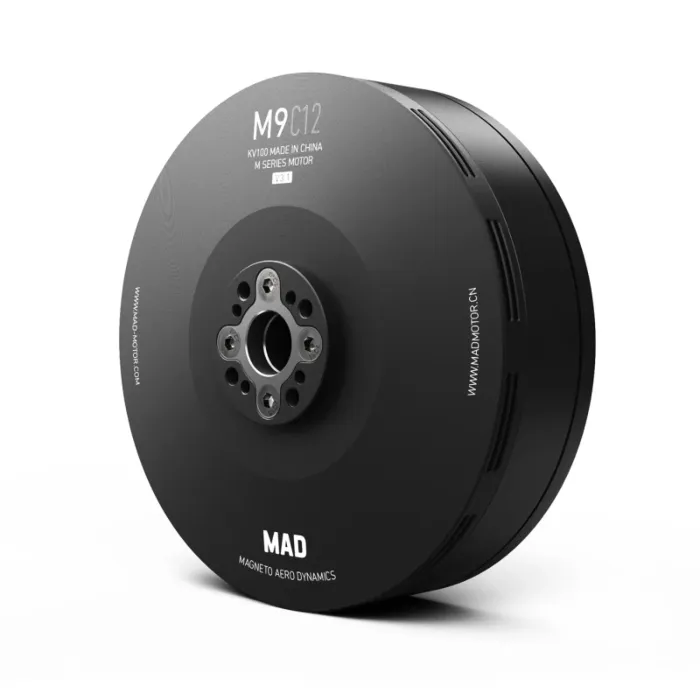

M9C12 IPE V3.1 Drone Motor
As low as:
$279.00
As low as:
only left for same day shipping. Order now!
About this product
About M9C12 IPE V3.1
Positioning:
• Designed for 4–5 kg single-axis payloads with 28–32 inch carbon fiber propellers
• Engineered for low energy consumption and high efficiency through advanced magnetic simulation
• Ideal for professional UAV applications requiring high thrust and structural strength
Key Features:
✔ Maximum thrust up to 13.8 kg per axis
✔ Motor weight: 463g
✔ Unique 36N42P motor core design for smooth, stable power delivery
✔ Constructed with 7075-T6 aviation-grade aluminum for durability
✔ Reinforced with a precision steel shaft for long-term reliability
Perfect for:
• Heavy-lift drones using large-diameter props
• UAVs needing efficient, high-thrust motors
Motor Data |
|||
| Motor Model | MAD M9C12 IPE V3.1 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:98.5 × 33.55 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 50mm 16# Awg(Black Yellow Red) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

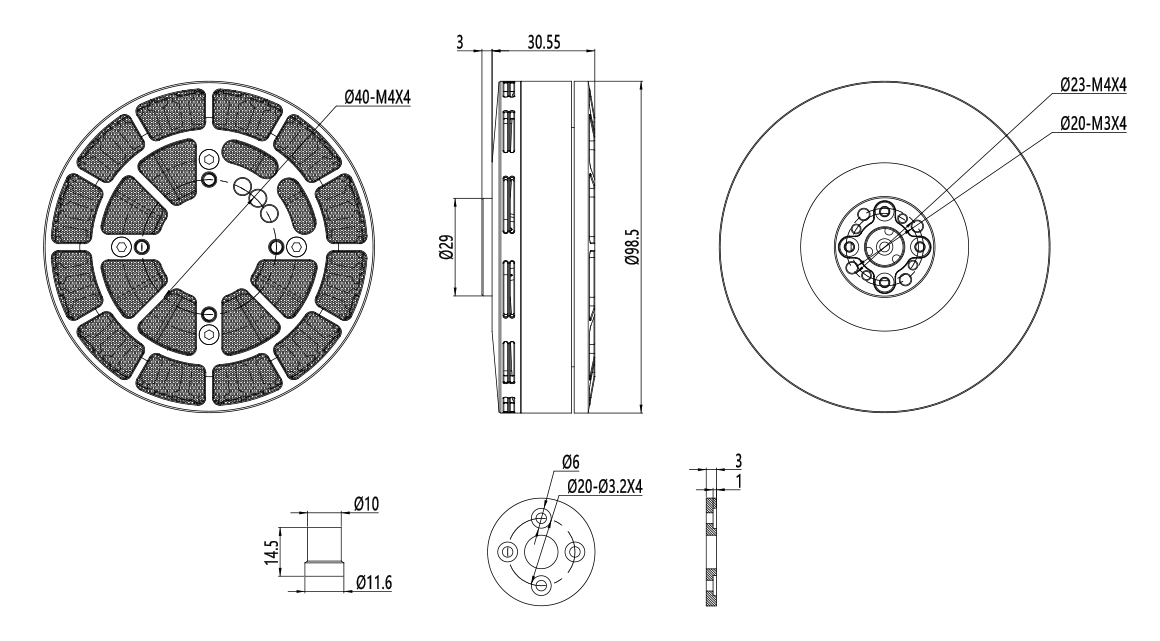

Drawing and mount holes
___________________________________________________________________________________________________________________________

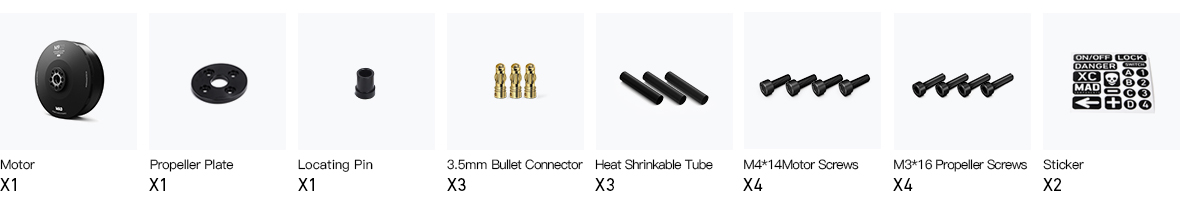

Accessories
More Information
| Manufacturer | MAD |
|---|
