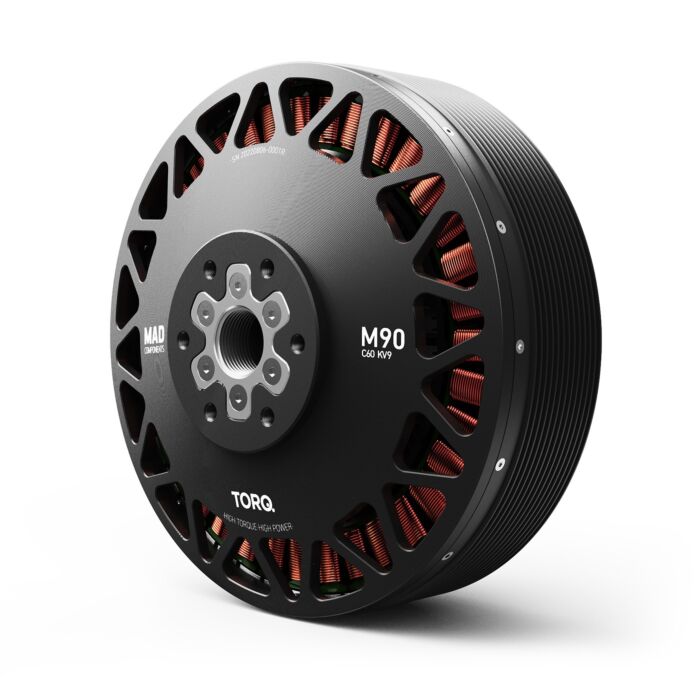

M90C60 EEE Manned Drone Motor

It is designed for large manned multi-rotor aircraft, electric paragliders, large E-VTOL UAVs, paramotors and paratrikes. This type of motor is manufactured using industrial grade components.

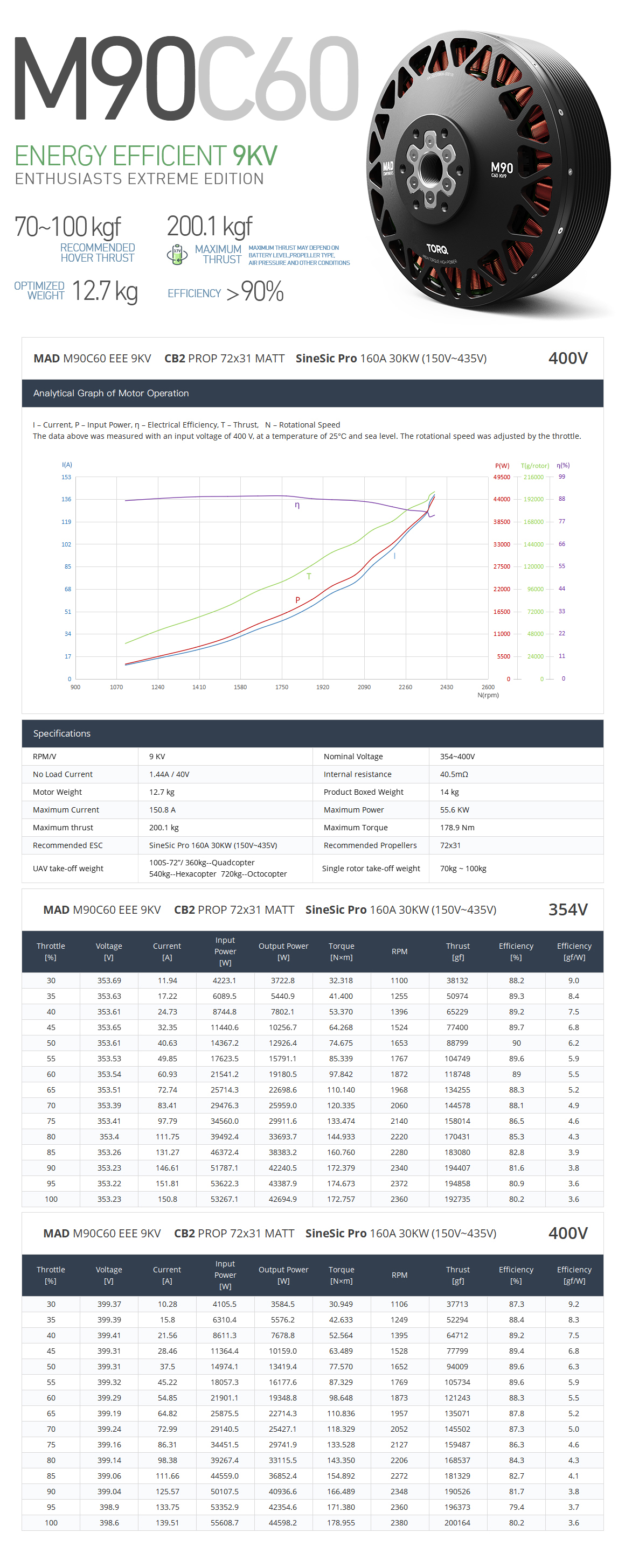

Motor Data
Motor Model	MAD M90C60 EEE V1.0	Number of pole pairs	21
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:257 × 123 mm	Magnet Degree	180°C
Degree of Protection	Rain protection	Cable Length	250 mm (extended Enameled wires）
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤20 mg
Propeller Mounting Holes	D:75 M8×6	Motor Balance	≤30 mg
Shaft Diameter	IN: 35 mm	Motor Mounting Holes	D:140 M8×6
Bearing	6007ZZ *2	Disruptive test	1000 V

___________________________________________________________________________________________________________________________

Drawing and mount holes

___________________________________________________________________________________________________________________________

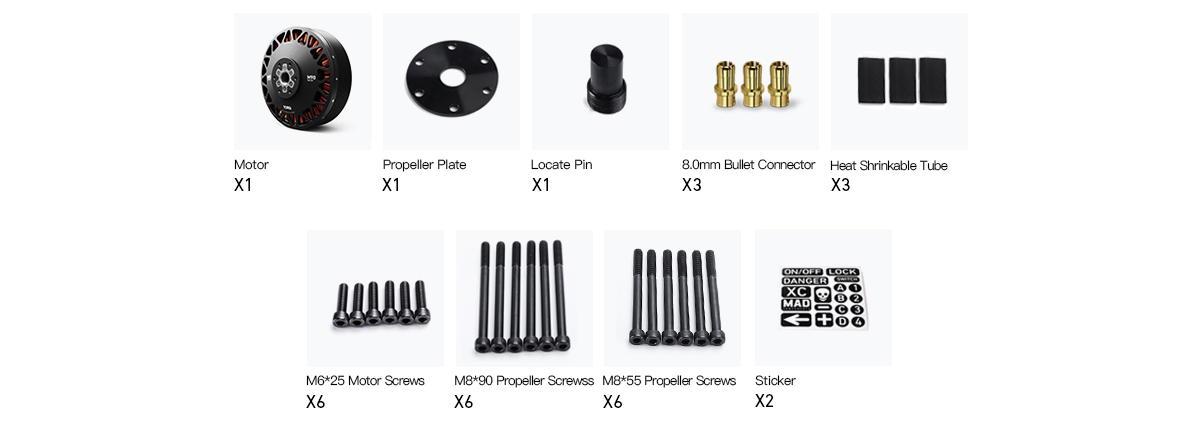

Accessories
