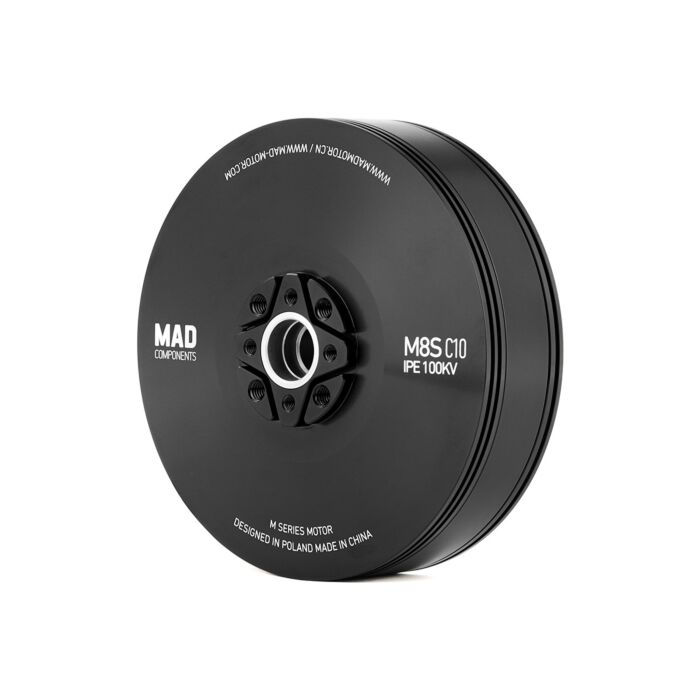

M8S C10 (8110) IPE V1 Drone Motor
M8SC10 IPE V1
About this product
About M8S C10 IPE V1.0
Positioning:
• Based on the classic 8110 motor platform, trusted in high-end aerial photography, exploration, archaeology, and mapping
• Optimized for endurance flights ranging from 30 to 120 minutes
• Designed for 3.5–5 kg single-axis payloads with 29–32 inch carbon fiber propellers
Key Features:
✔ Maximum thrust up to 10.7 kg per axis
✔ Motor weight: 334g
✔ Engineered for smooth, long-duration flight performance
Perfect for:
• UAVs of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc.
• Builders prioritizing endurance, stability, and motor legacy performance in the 8110 class
Motor Data |
|||
| Motor Model | MAD M8S C10 IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:87.3 × 30.15 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:36 M4×4 |
| Bearing | 6901*2 | Disruptive test | 1000 V |
___________________________________________________________________________________________________________________________

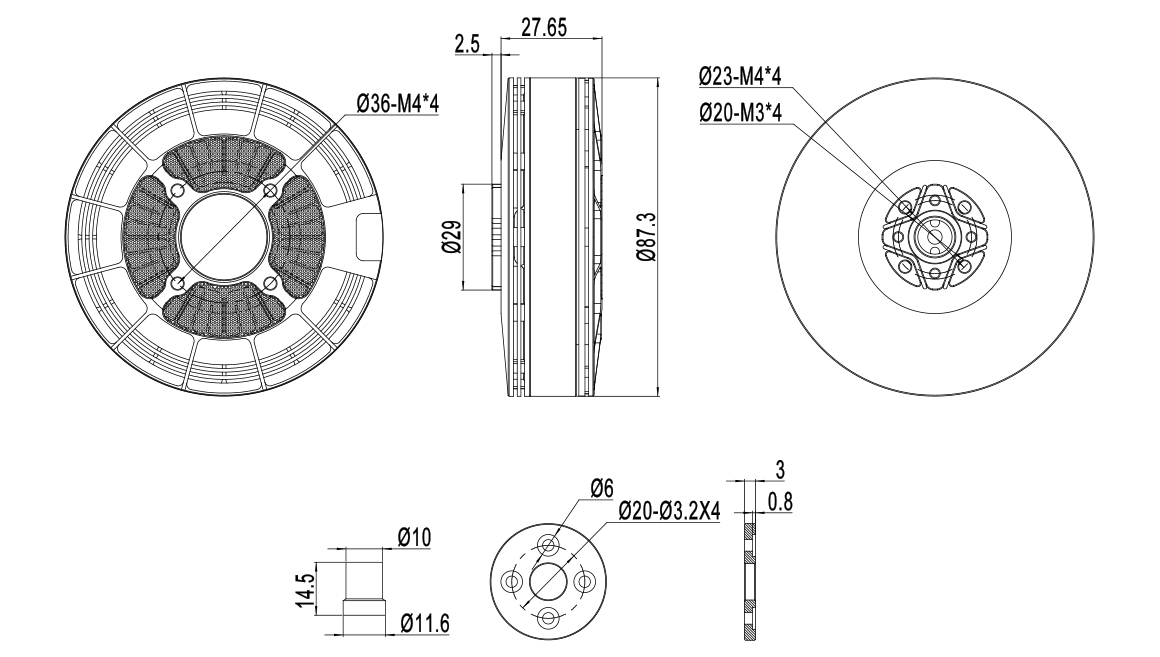

Drawing and mount holes
___________________________________________________________________________________________________________________________

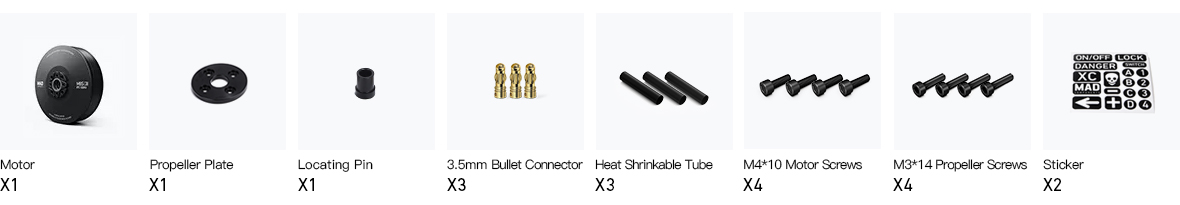

Accessories
More Information
| Manufacturer | MAD |
|---|
