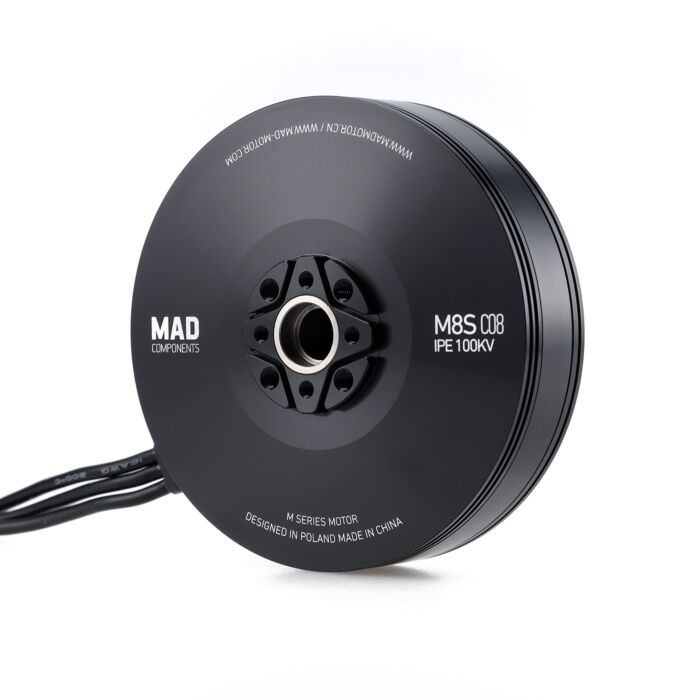

M8S C08 (8108) IPE V1.0 Drone Motor

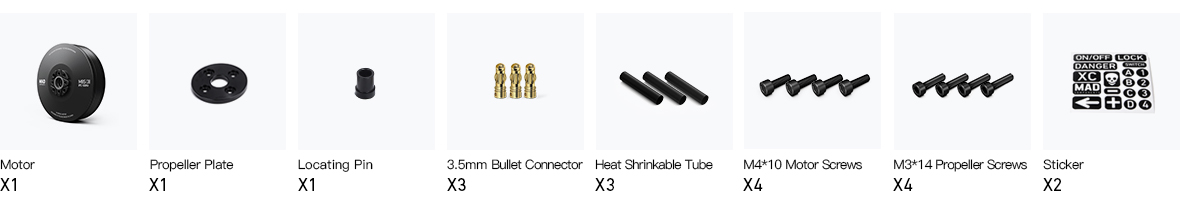

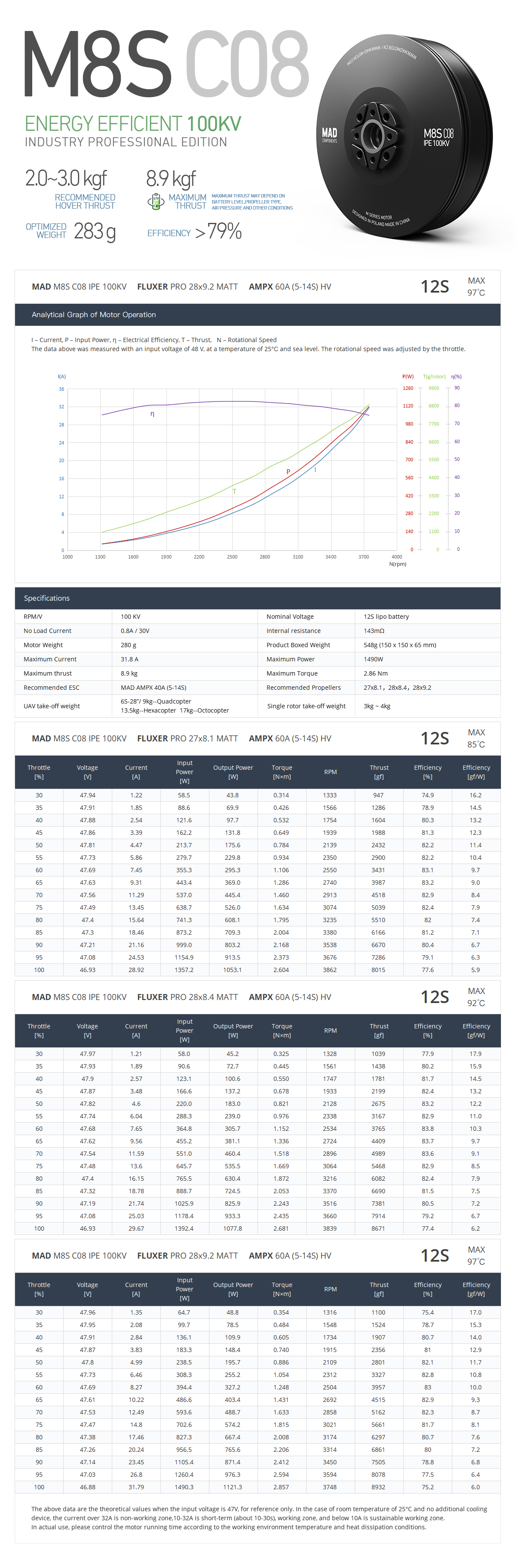

Specification100KVAbout M8S C08 Positioning:• Optimized for 3–4 kg single-axis payloads with 27–28 inch carbon fiber propellers• Suitable for multirotor drones requiring stable thrust in mid-weight applications Key Features:✔ Delivers up to 8.9 kg maximum thrust per axis✔ Motor weight: 285g✔ Balanced performance for efficient and reliable flight Perfect for:• Drones requiring consistent lift in the 3–4 kg payload range Motor Data Motor Model MAD M8S C08 IPE V1.0 Number of pole pairs 21 Stator Anticorrosive Varnished wire Degree 180°C Motor Size D:87.3 × 28.15 mm Magnet Degree 150°C Degree of Protection IP45 Cable Length 80 mm  16# Awg(Black) silicone Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg Propeller Mounting Holes D:20 M3×4,  D:23 M4×4 Motor Balance ≤10 mg Shaft Diameter IN: 12 mm Motor Mounting Holes D:36 M4×4 Bearing 6901*2 Disruptive test 1000 V ___________________________________________________________________________________________________________________________ Drawing and mount holes___________________________________________________________________________________________________________________________ Accessories
