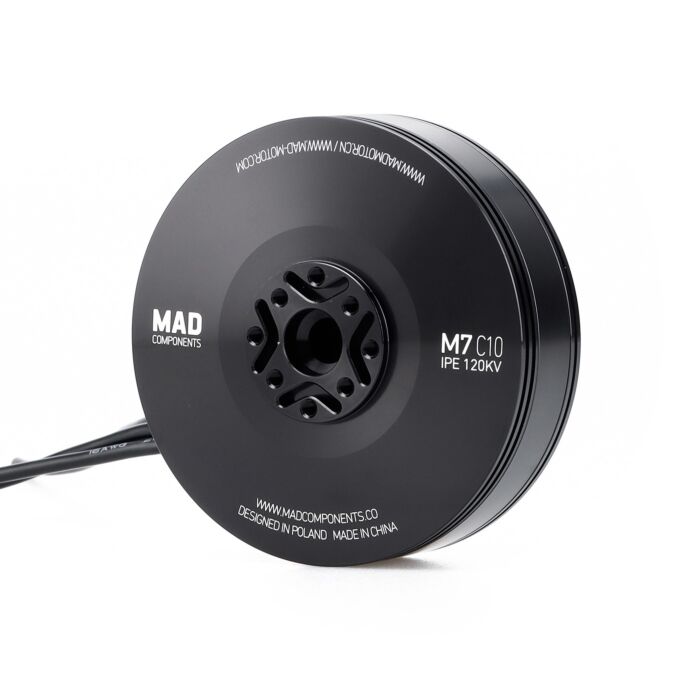

M7C10 IPE V2 Drone Motor
As low as:
$199.00
As low as:
only left for same day shipping. Order now!
About this product
About M7C10 IPE
Positioning:
• Designed for UAVs including multirotor hexacopters and octocopters
• Supports 12S voltage and optimized for 2–4 kg single-axis payloads
• Ideal for mid-to-heavy lift applications with 26–28 inch carbon fiber propellers
Key Features:
✔ Delivers up to 8.7 kg maximum thrust per axis
✔ Motor weight: 270g
✔ Engineered for high stability and performance in multi-rotor systems
Perfect for:
• Medium-lift UAVs
• Hexacopter and octocopter builds requiring efficient and lightweight motors
• Professional users balancing thrust, voltage compatibility, and motor weight
Motor Data |
|||
| Motor Model | MAD M7C10 IPE V2.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:78.3 × 27.8 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:32 M4×4 |
| Bearing | 6901ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

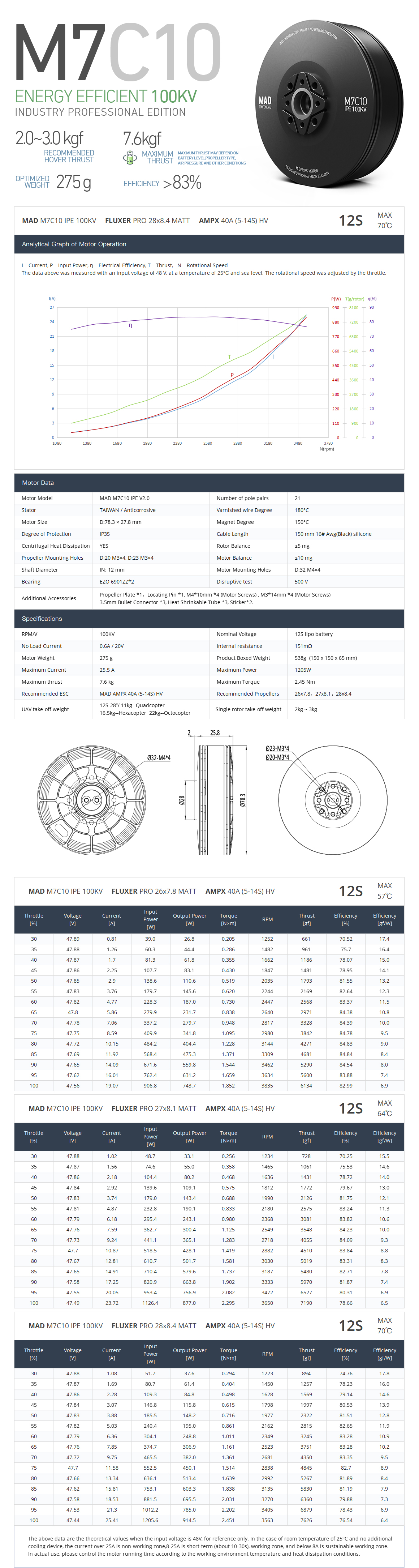

Drawing and mount holes
___________________________________________________________________________________________________________________________

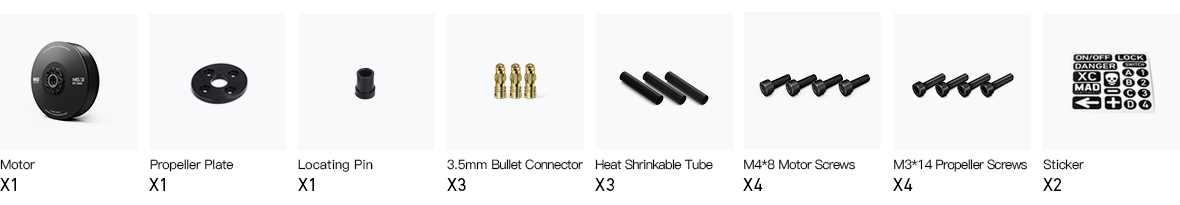

Accessories
More Information
| Manufacturer | MAD |
|---|
