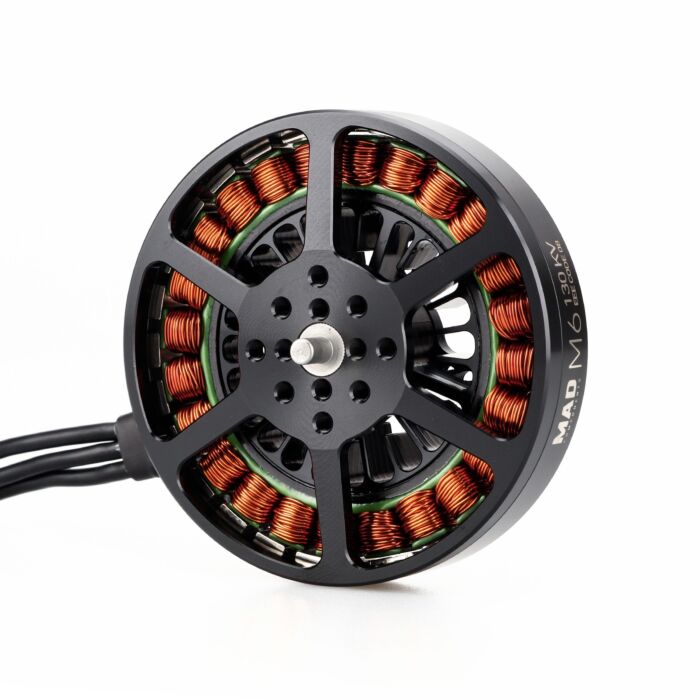

M6C08 EEE brushless drone motor
Our ANTIMATTER brand motors are defined as "not ordinary" in the field of multi-rotor motors. We are proud to launch the ANTIMATTER series motors (M6C06, M6C08, M6C10, M6C12) at the end of 2019. We spent a year designing and proving which drone motors are the most efficient with 21-24in props. This is the magic! MAD Components in Poland.M6C08 EEE is designed to carry a payload of 1.5-3kg, supports 6S.8S,12S voltage. Unique stator design, 24N28P configuration.
About this product
| Specification |
|||||||||
| Motor Model |
MAD M6C08 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:72 × 29.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:22 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4, D:32 M4×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
||||||
More Information
| Manufacturer | MAD |
|---|
