M6C06 EEE V3 Drone Motor
As low as:
$99.00
As low as:
only left for same day shipping. Order now!

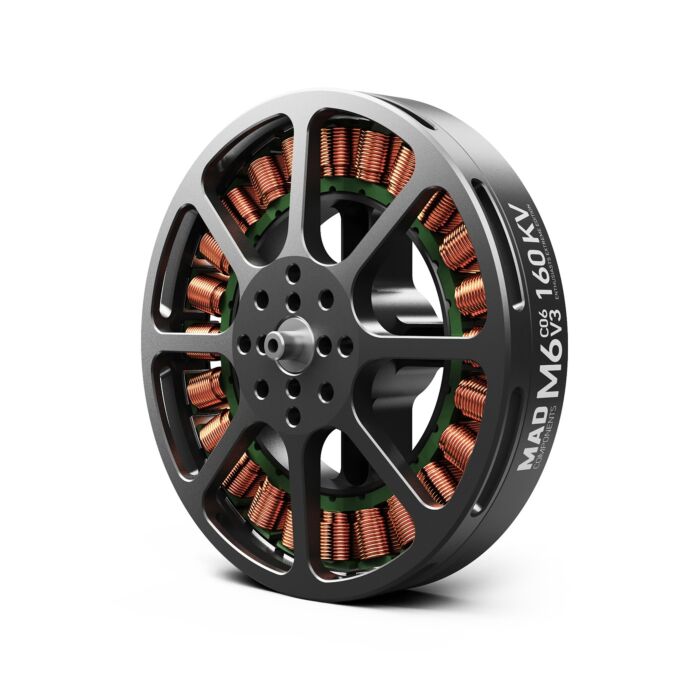

M6C06 EEE V3 Drone Motor
M6C06 V3Payload :2-3kg/rotor and supports 320KV/6S, 160KV/12S voltages.Propeller:21-22inch Recommend ESC: XROTOR Pro 60A(4-6S) AMPX 60A(5-14S）
About this product

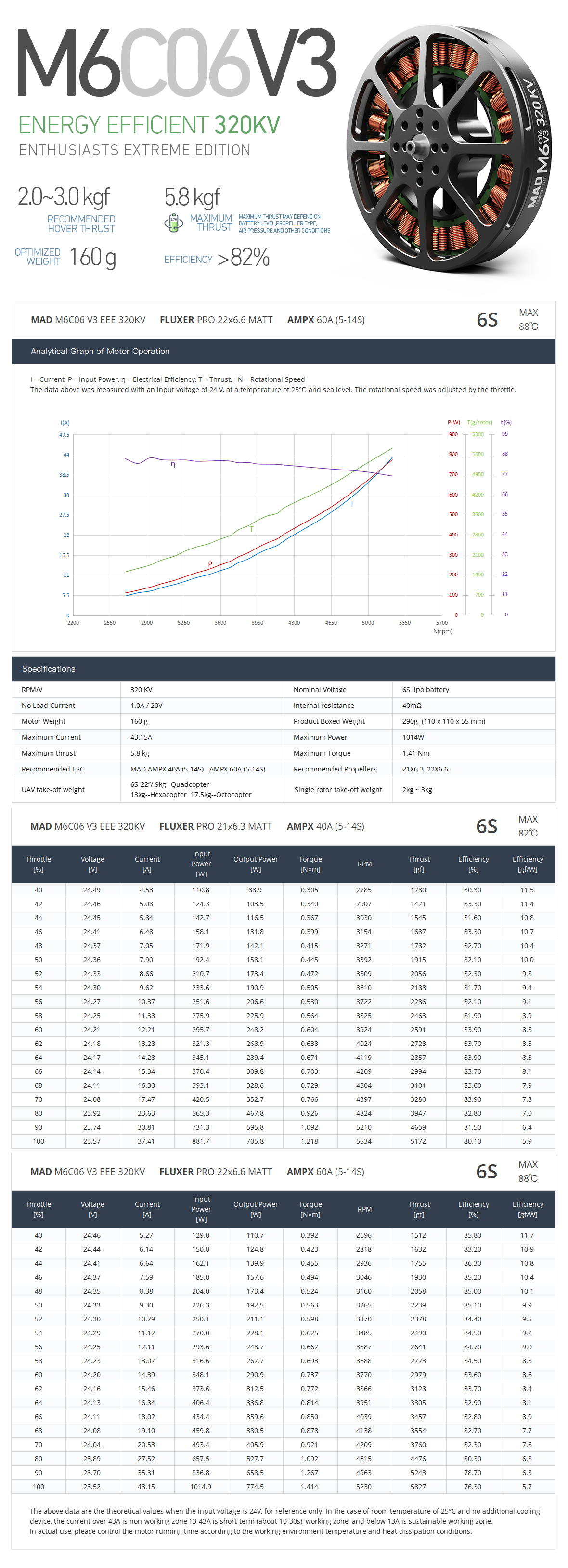

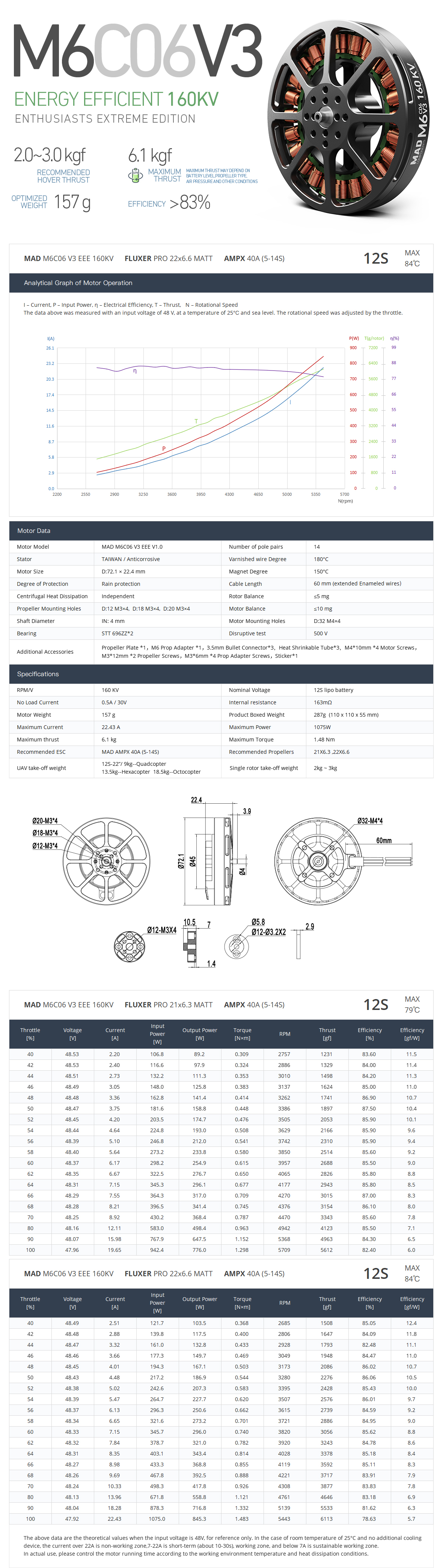

| Specification |
|||||||||
| Motor Model |
MAD M6C06 V3 EEE |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||

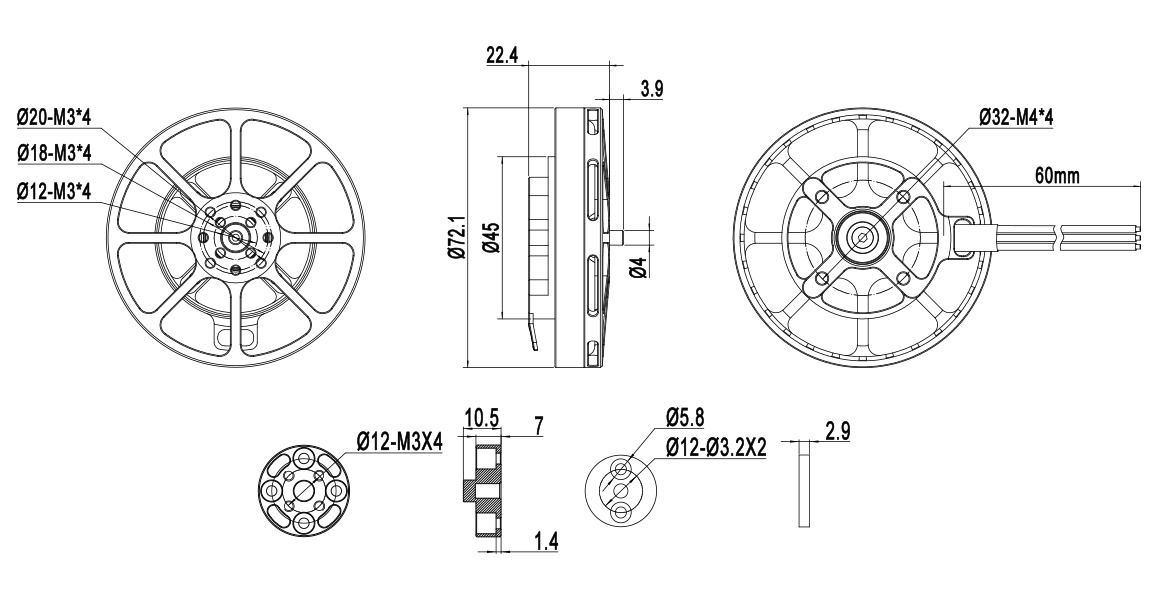

| Motor Size |
D:72.1× 22.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:20 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 4 mm |
Motor Mounting Holes |
D:32 M4×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
||||||
More Information
| Manufacturer | MAD |
|---|
