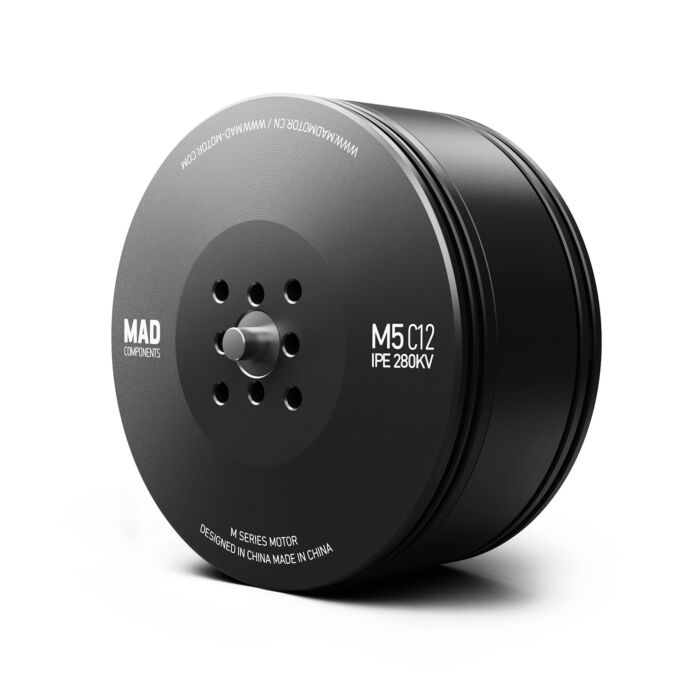

M5C12 IPE Drone Motor

About M5C12 IPE

Positioning:
• Designed for 1.5–3 kg single-axis payloads with 15–22 inch carbon fiber propellers
• Suitable for environments requiring water and dust resistance
Key Features:
✔ Maximum thrust: 6.9 kg per axis
✔ Motor weight: 263g
Perfect for:
• Multirotor drones operating in variable outdoor conditions
• Builders seeking reliable and weather-resistant propulsion systems

Specification
Motor Model	MAD M5C12 IPE	Polar Number	7P
Stator core	Anti-rust treatment	Varnished wire tolerate temp	180 ℃
Motor Size	D:61 × 36.5 mm	Magnet tolerate temp	150 ℃
IP rating	IP45	Power Cable	150 mm 18Awg(Black)silicone weld
Cooling method	YES	Roto balance	≤5mg
Propeller Mount Holes	D:12 M3×4,  D:18 M3×4	Motor balance	≤10mg
Shaft Diameter	IN: 4 mm	Mounting Holes	D:30 M3×4
Bearing	626ZZ*2	Winding Withstand voltage test	500V

___________________________________________________________________________________________________________________________

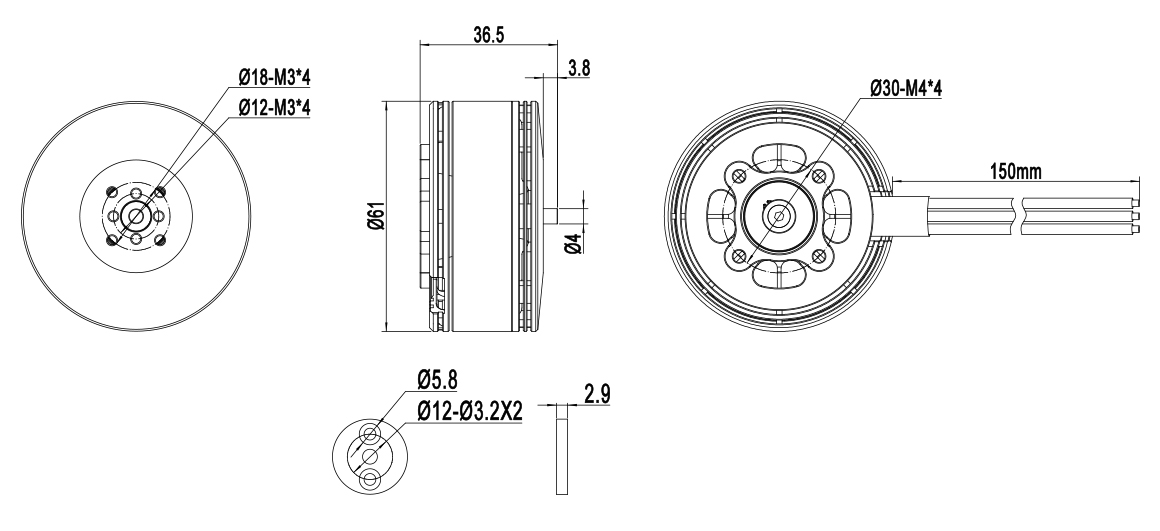

Drawing and mount holes

___________________________________________________________________________________________________________________________

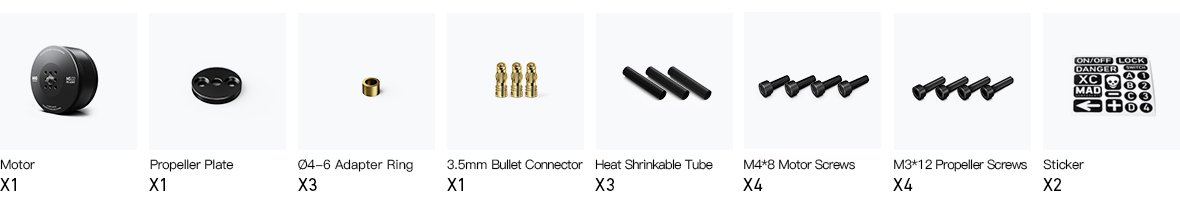

Accessories
