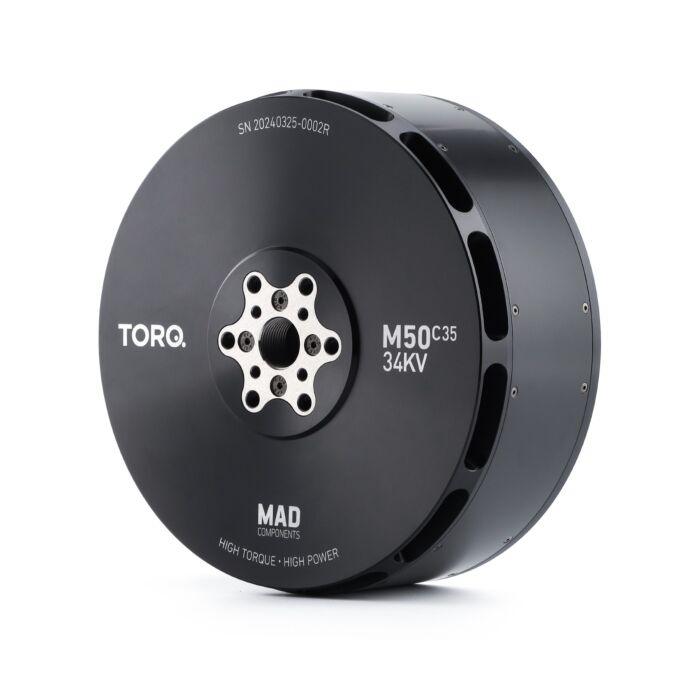

M50C35 PRO IPE Manned Drone Motor
As low as:
$1,299.00
As low as:
only left for same day shipping. Order now!
M50C35 PRO IPE Manned Drone Motor
M50C35 Pro IPE
About this product

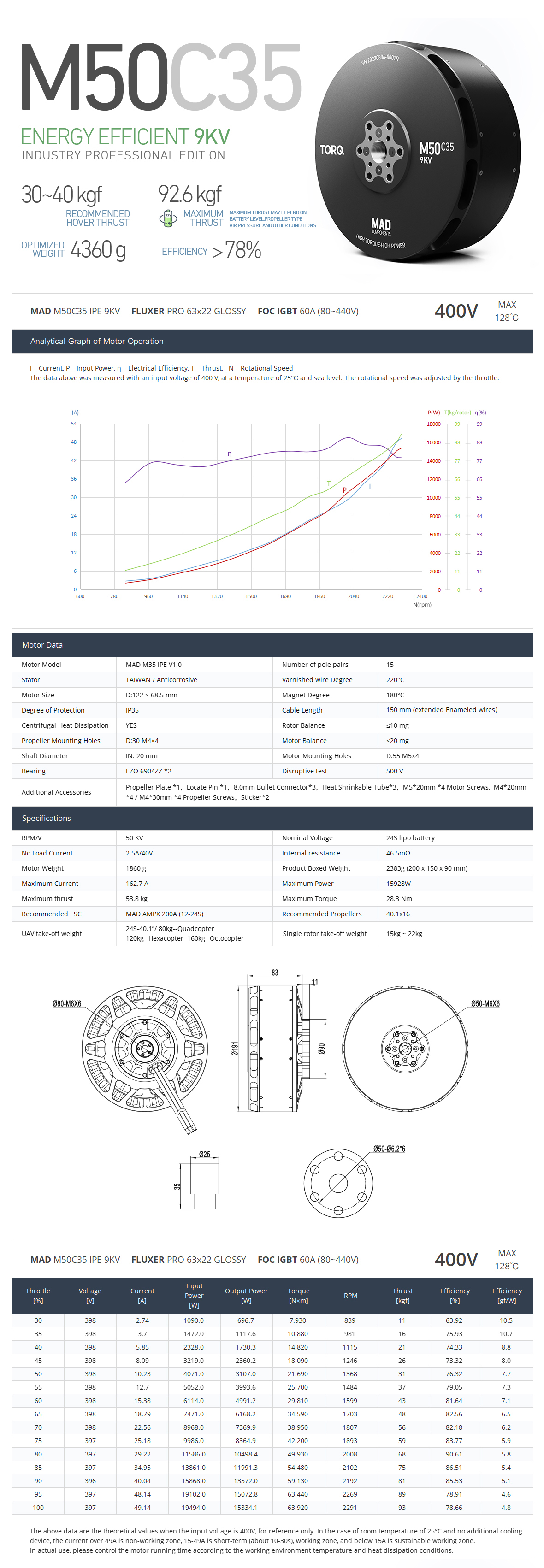

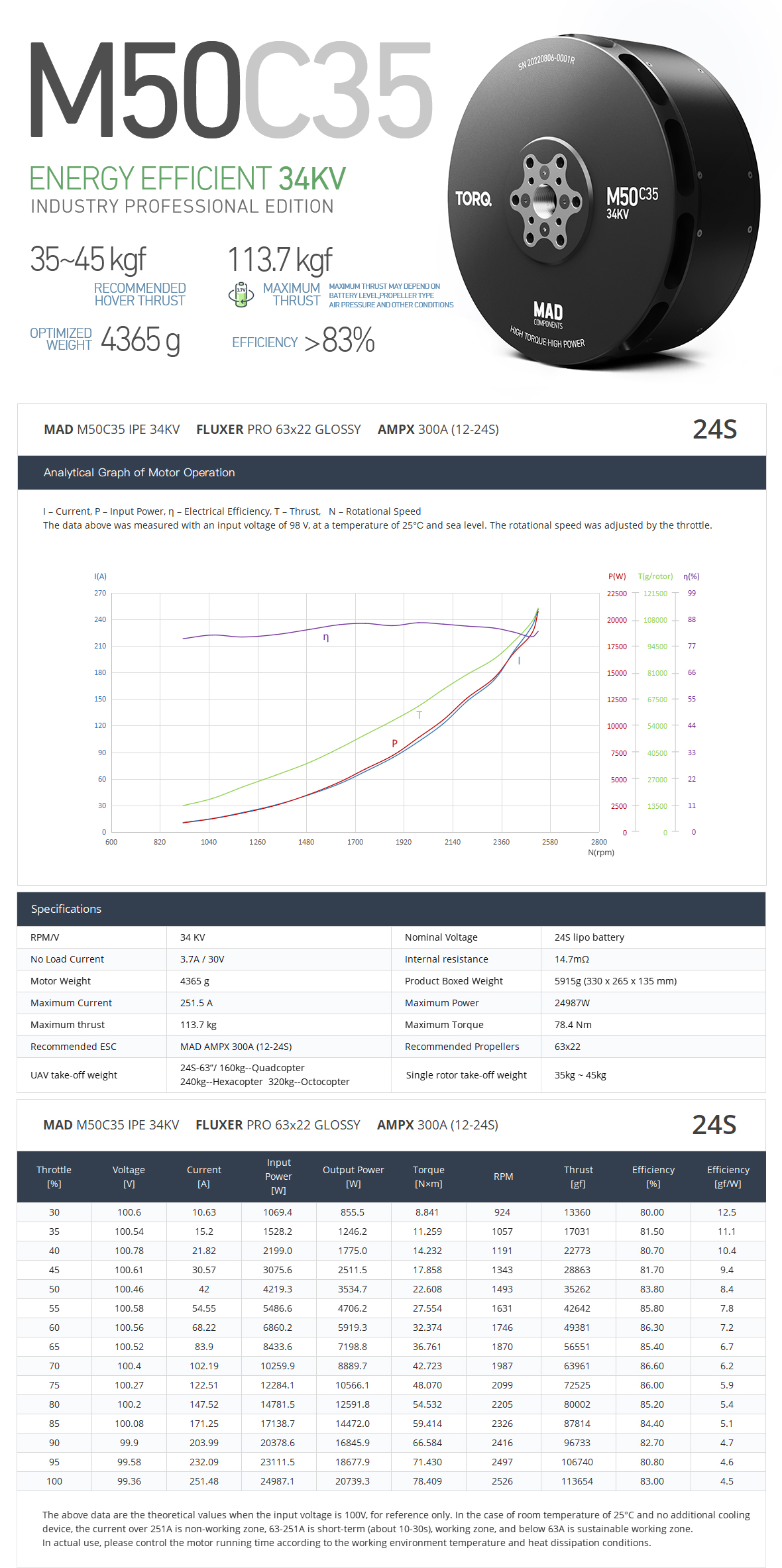

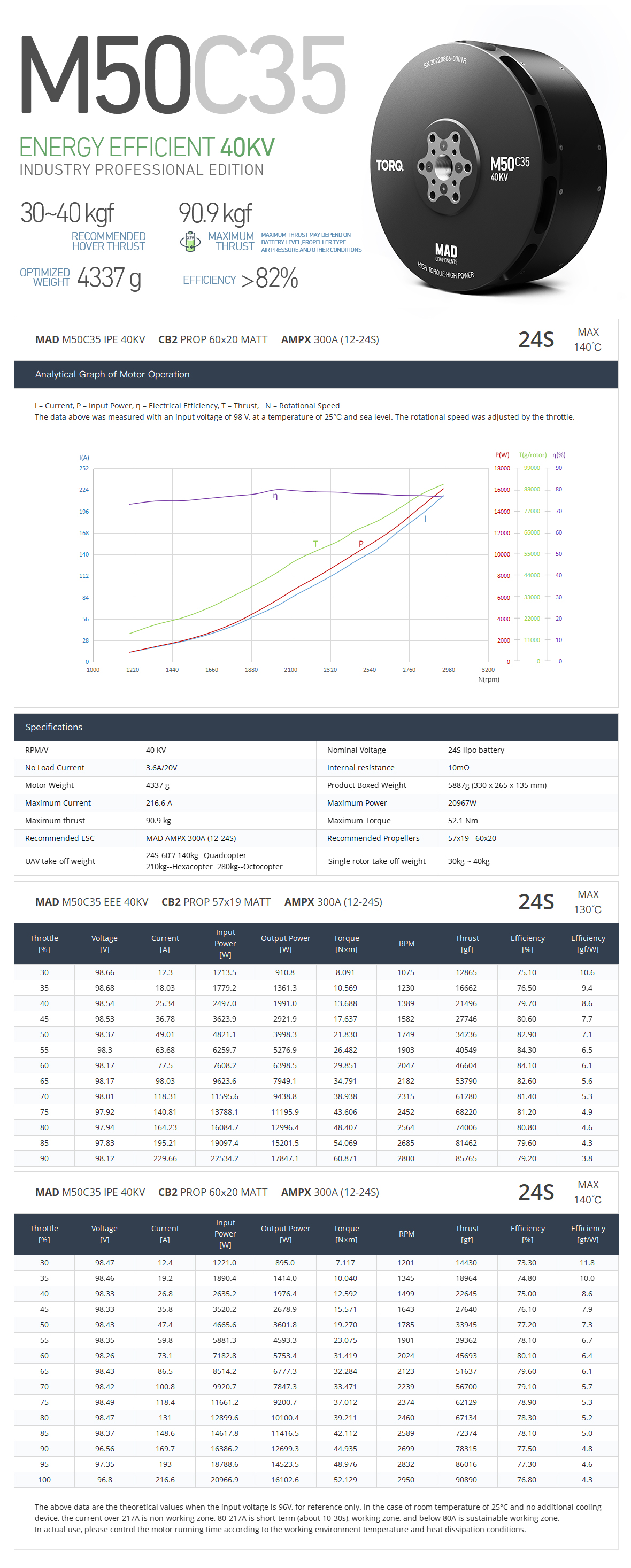

Motor Data |
|||
| Motor Model | MAD M50C35 IPE V1.0 | Number of pole pairs | 31 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:191 × 94 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤20 mg |
| Propeller Mounting Holes | D:50 M6×6 | Motor Balance | ≤30 mg |
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:80 M6×6 |
| Bearing | 6905ZZ *2 / 6818ZZ | Disruptive test | 1000 V |
___________________________________________________________________________________________________________________________

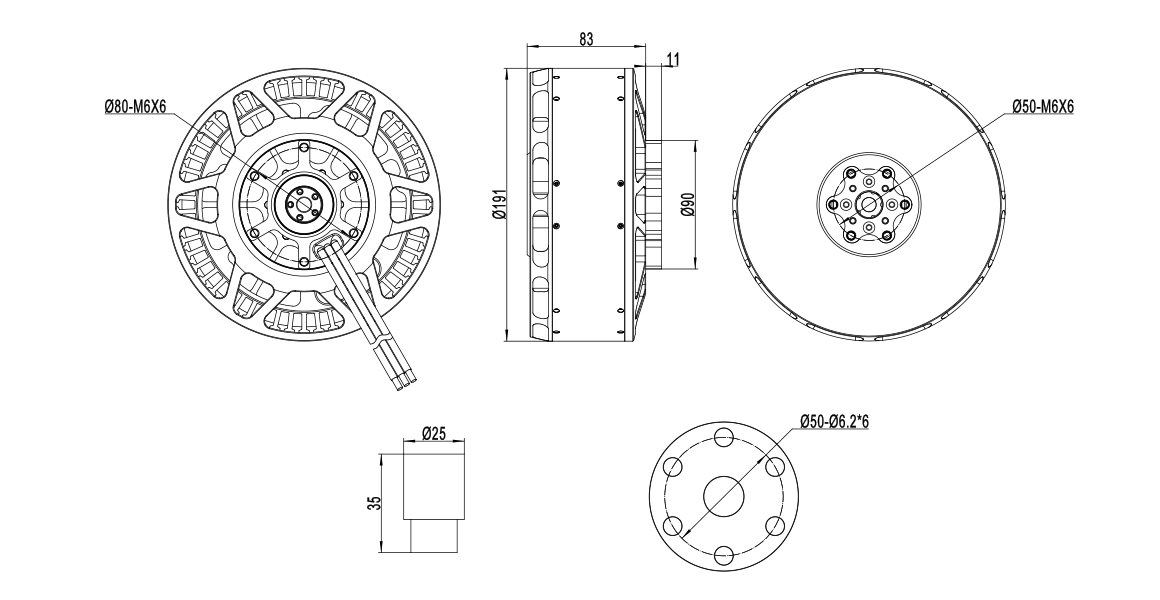

Drawing and mount holes
___________________________________________________________________________________________________________________________

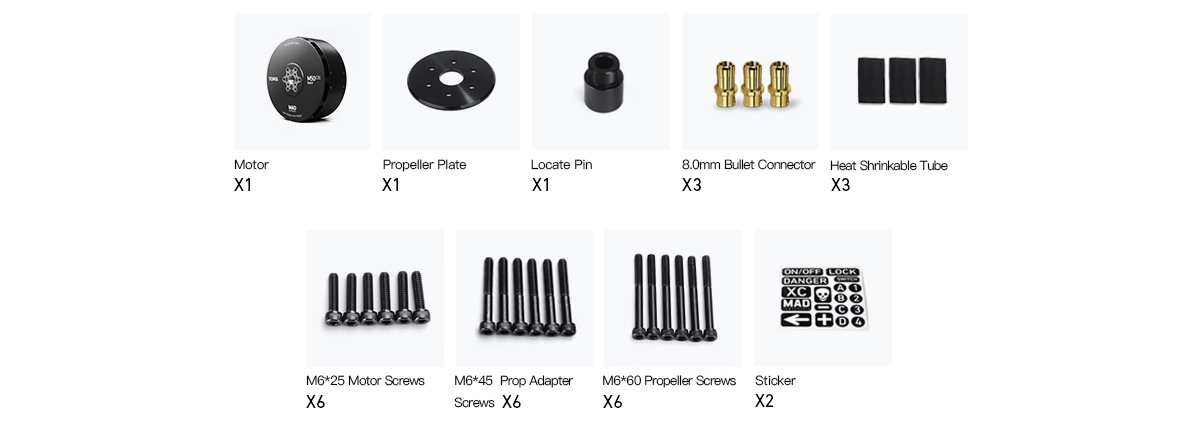

Accessories
More Information
| Manufacturer | MAD |
|---|
