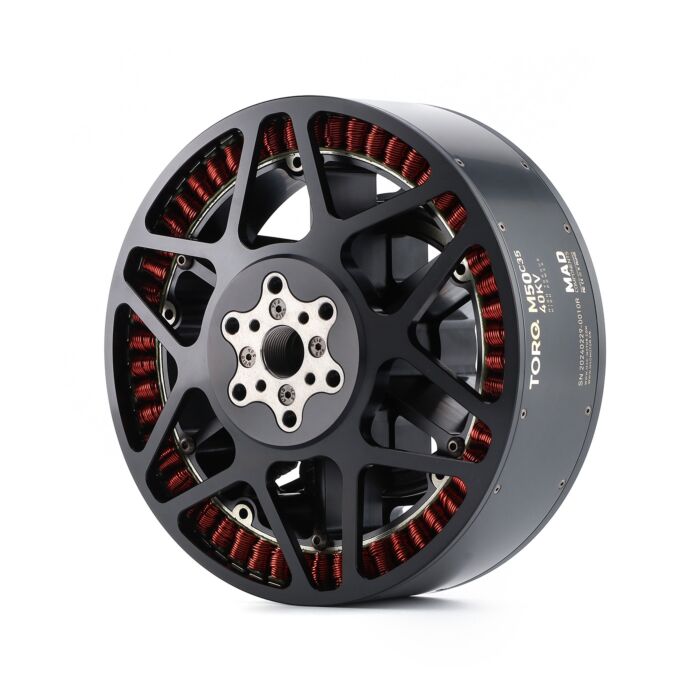

M50C35 PRO EEE Manned Drone Motor

It is for large maned multi-rotor, electric para-glider, large E-VTOL, UAV. para-motor, para-trike. This type of motor is made with industrial grade components.

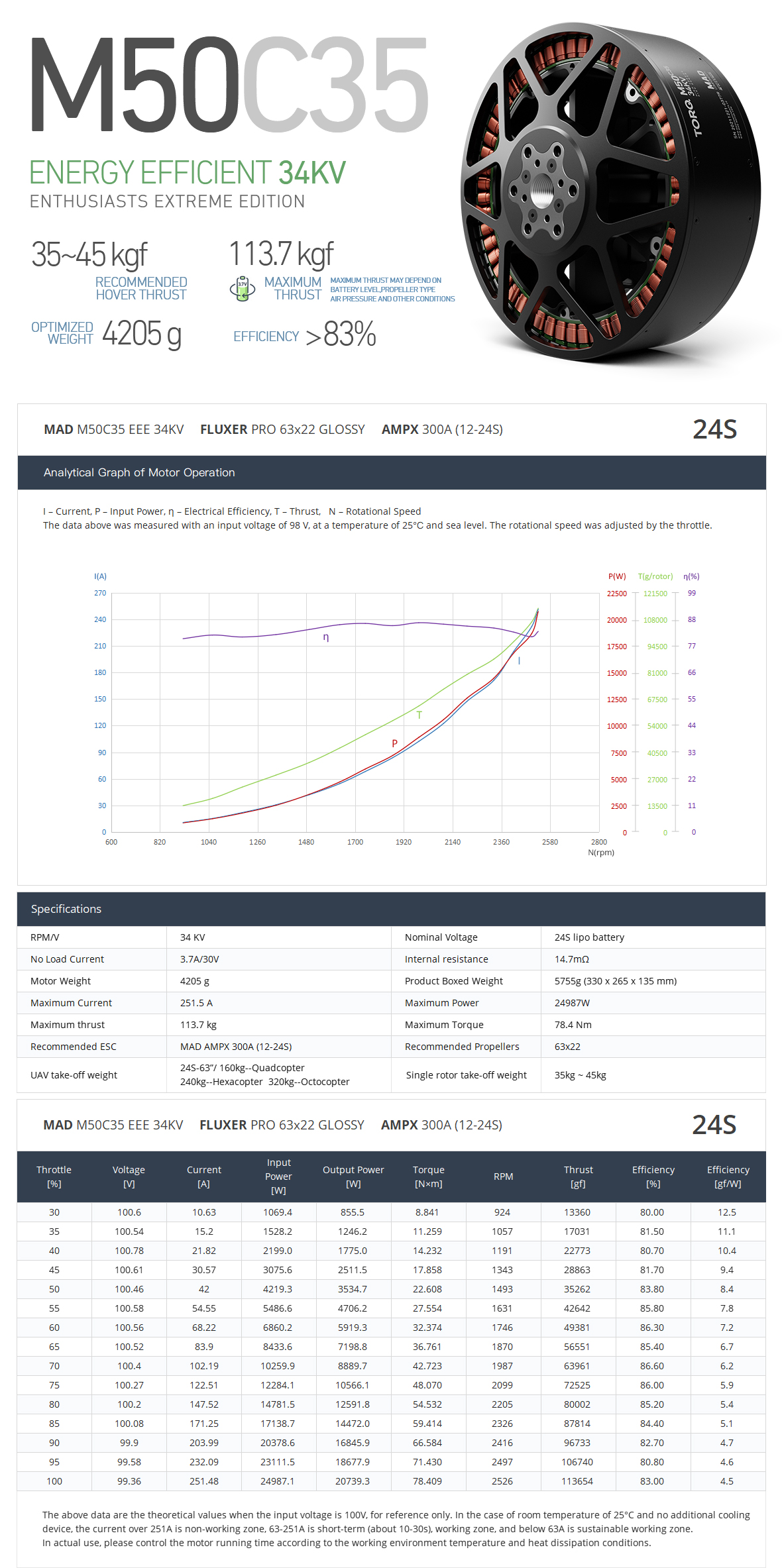

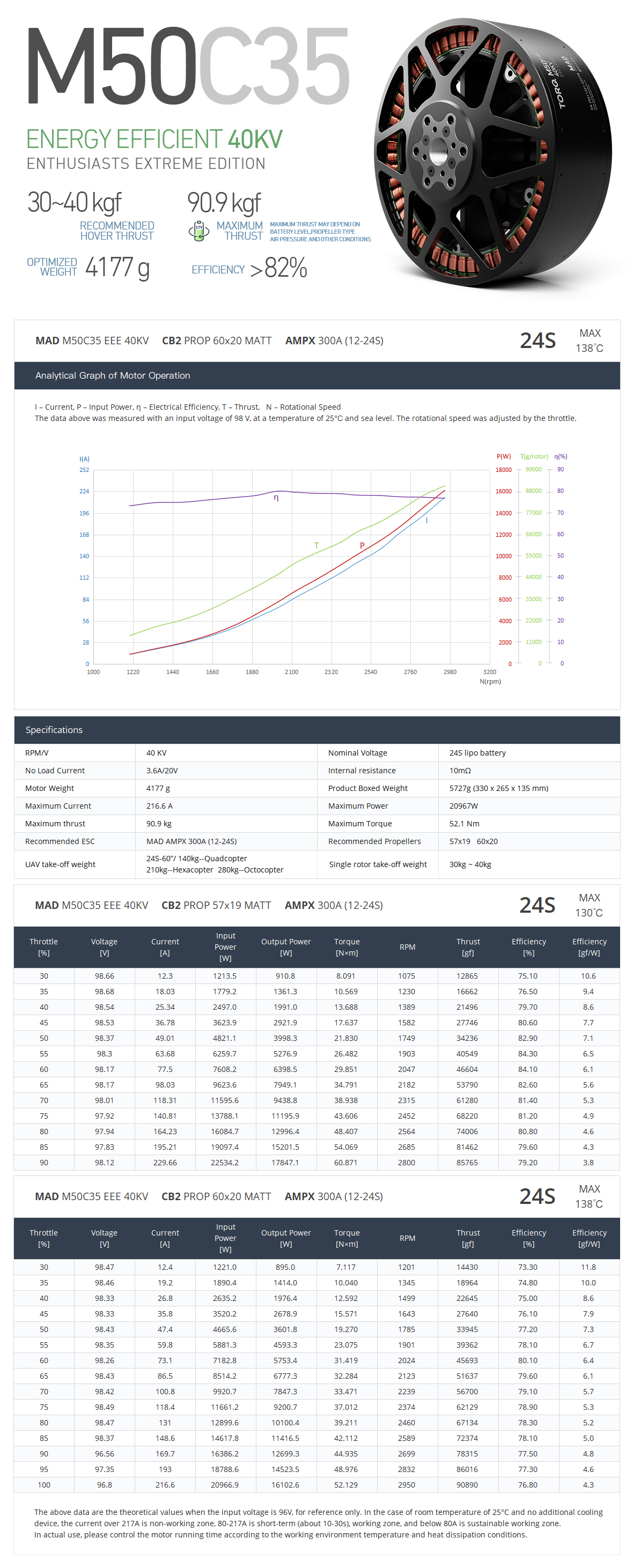

Motor Data
Motor Model	MAD M50C35 EEE V2.0	Number of pole pairs	31
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:191 × 94 mm	Magnet Degree	180°C
Degree of Protection	Rain protection	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤20 mg
Propeller Mounting Holes	D:50 M6×6, D:32 M4×4	Motor Balance	≤30 mg
Shaft Diameter	IN: 25 mm	Motor Mounting Holes	D:80 M6×6
Bearing	6905ZZ *2 / 6818ZZ	Disruptive test	1000 V

___________________________________________________________________________________________________________________________

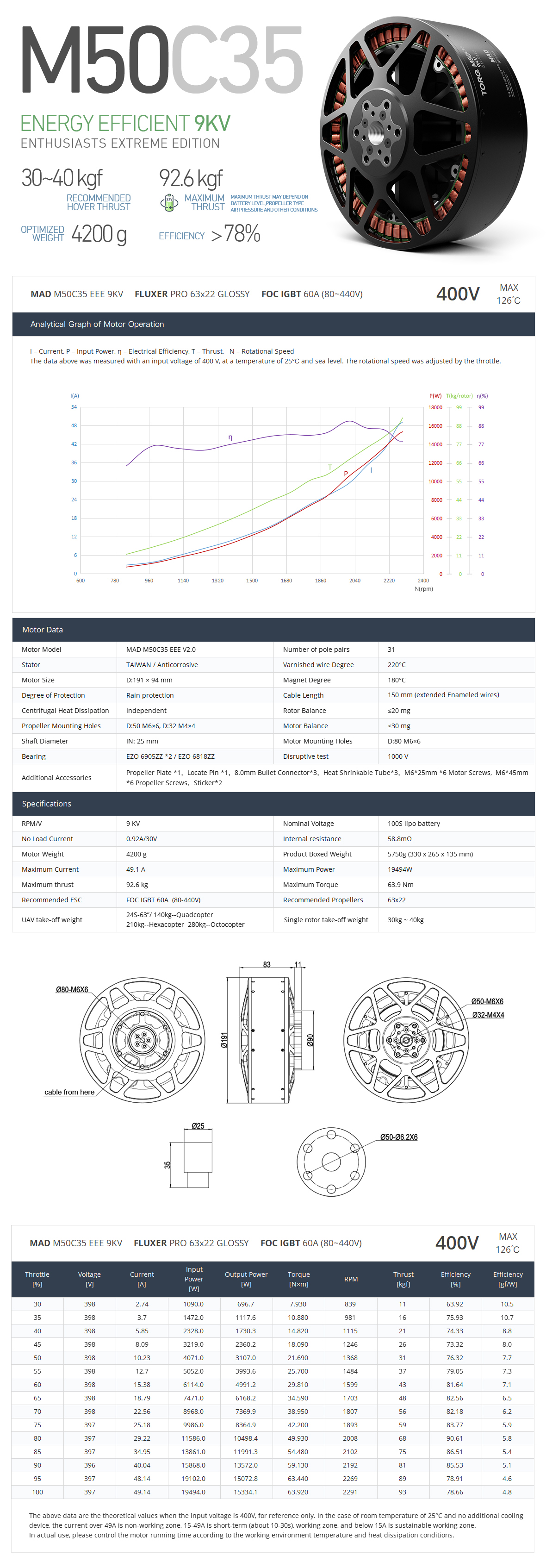

Drawing and mount holes

___________________________________________________________________________________________________________________________

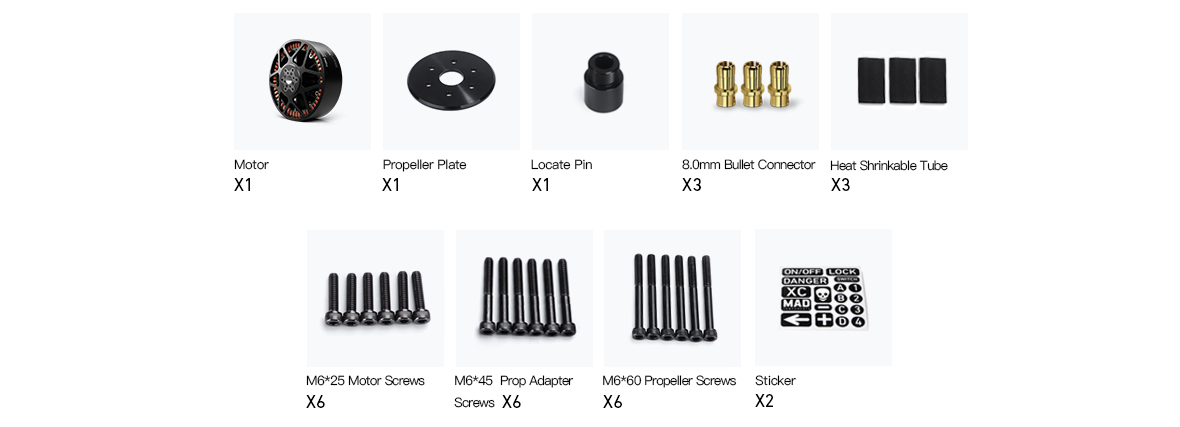

Accessories
