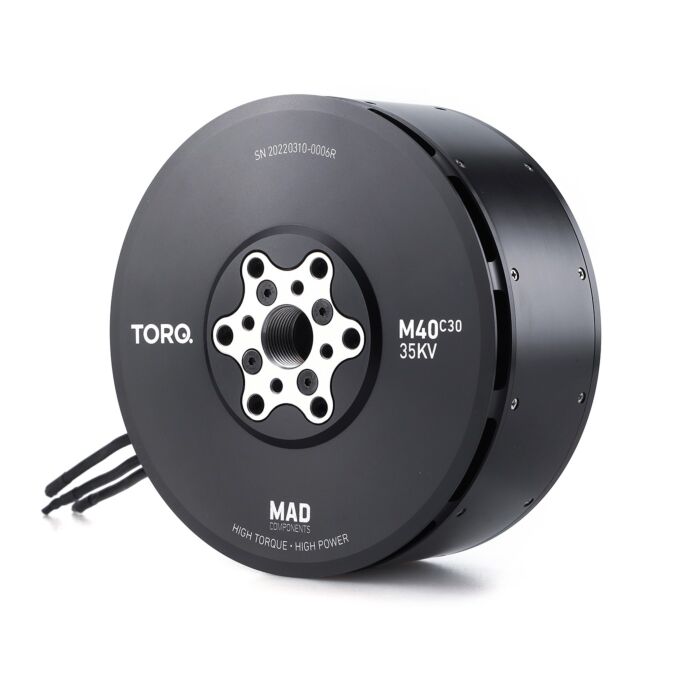

M40C30 PRO IPE Drone Motor
As low as:
$1,069.00
As low as:
only left for same day shipping. Order now!
M40C30 PRO IPE Drone Motor
M40C30 IPE
About this product
Motor Data |
|||
| Motor Model | MAD M40C30 IPE V3.0 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:151.4 × 81 mm | Magnet Degree | 180°C |
| Degree of Protection | IP45 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤20 mg |
| Propeller Mounting Holes | D:50 M6×6 D:32 M4×4 | Motor Balance | ≤30 mg |
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:65 M6×6 |
| Bearing | 6805ZZ *2 / 6818ZZ | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

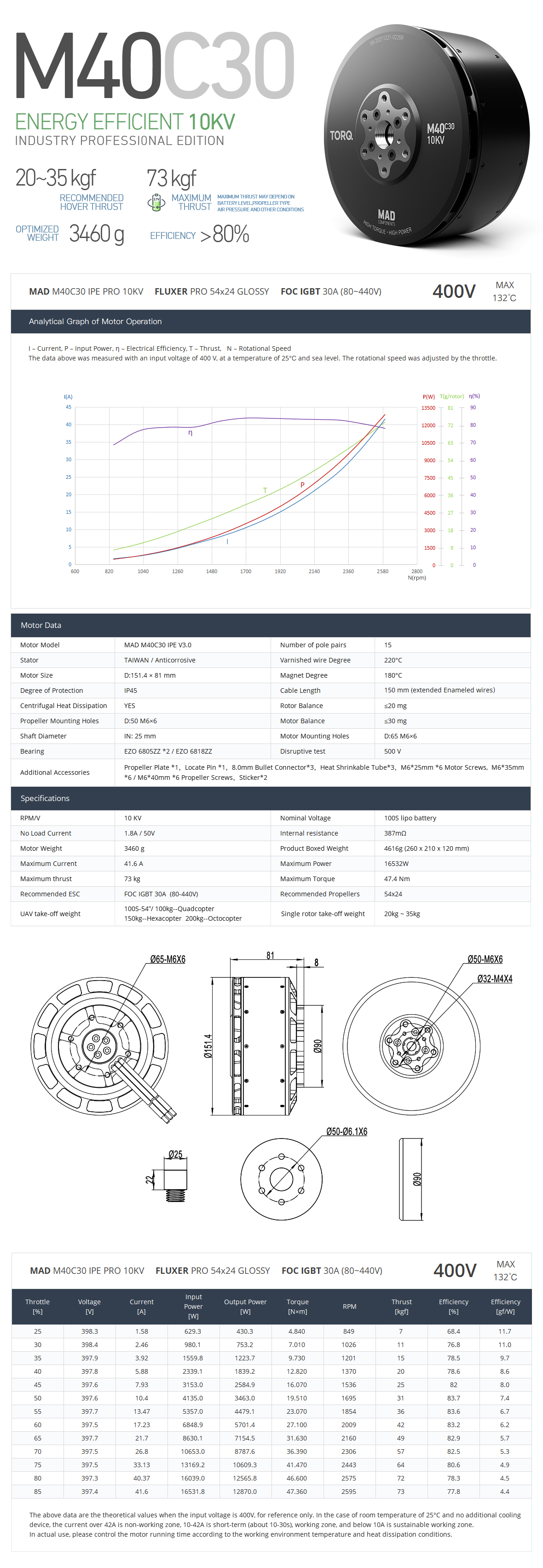

Drawing and mount holes
___________________________________________________________________________________________________________________________

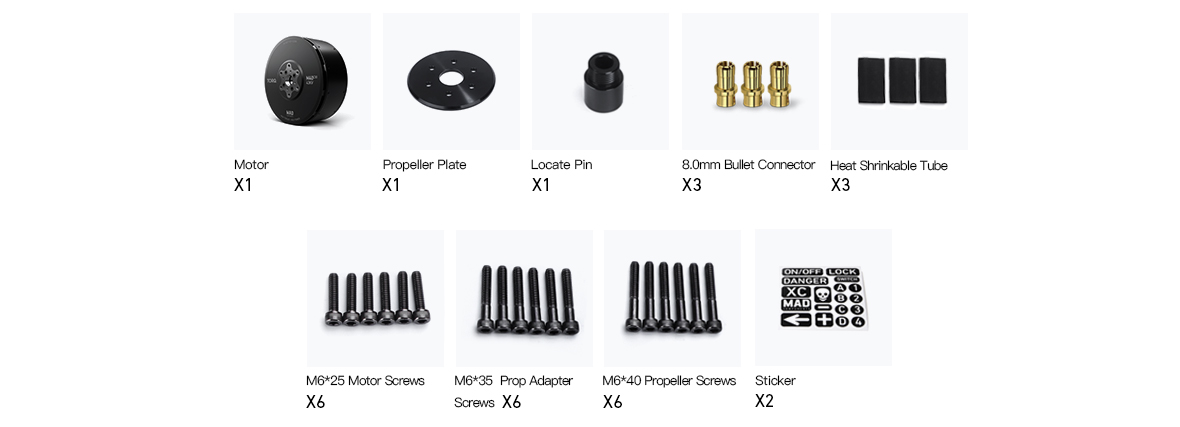

Accessories
More Information
| Manufacturer | MAD |
|---|
