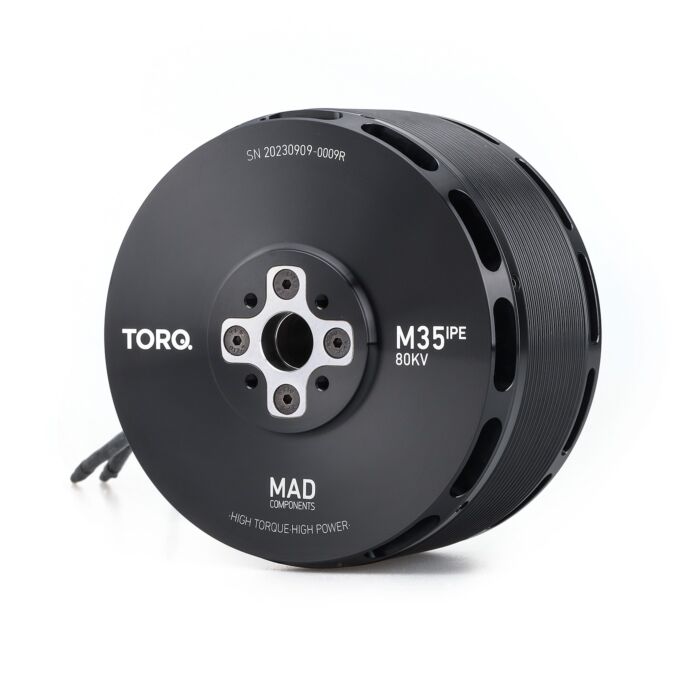

M35 TORQ IPE Manned Drone Motor
As low as:
$929.00
As low as:
only left for same day shipping. Order now!
M35 TORQ IPE Manned Drone Motor
M35 TORQ
About this product
About M35 IPE V1
Positioning:
• Flagship motor built for ultra-heavy-lift UAV platforms
• Optimized for VTOL systems and 40.1x16 inch propeller in high-demand aerial applications
• Designed to deliver maximum thrust under 24S voltage for manned or high-end industrial drones
Key Features:
✔ Peak thrust: 53.8 kgf | Rated thrust: 15–22 kgf
✔ Lightweight for its class: 1860g
✔ Supports 24S voltage systems
✔ Compatible with AMPX ESC 200a 12-24s and FOC 250A 24S Drone ESC
Perfect for:
• Large VTOL, logistics, or heavy-payload UAV applications
• Manned drone systems and professional aerial transport solutions

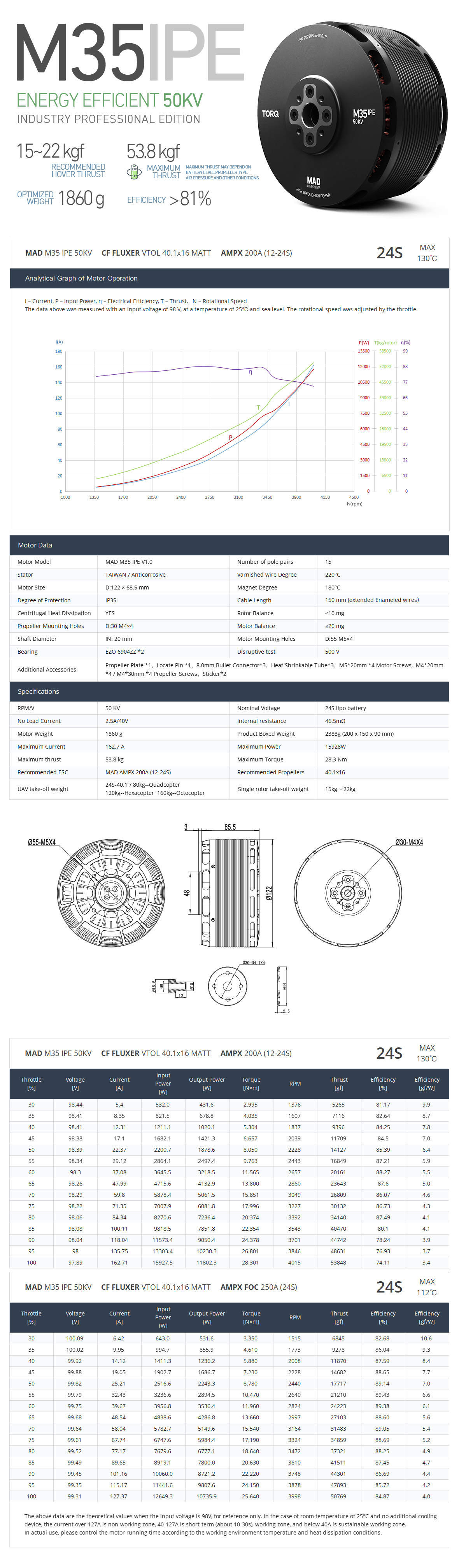

Motor Data |
|||
| Motor Model | MAD M35 IPE V1.0 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:122 × 68.5 mm | Motor Balance | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:30 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 20 mm | Motor Mounting Holes | D:55 M5×4 |
| Bearing | 6904ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
___________________________________________________________________________________________________________________________

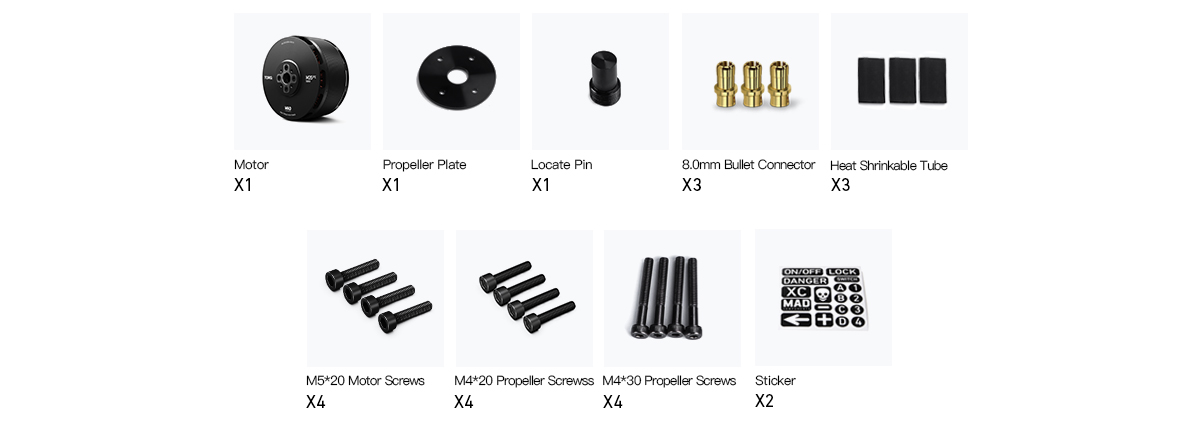

Accessories
More Information
| Manufacturer | MAD |
|---|
