M30 Pro IPE Drone Motor

As low as: $689.00

only left for same day shipping. Order now!

Options

mail Ask a Question
chat-alt-2 Whatsapp

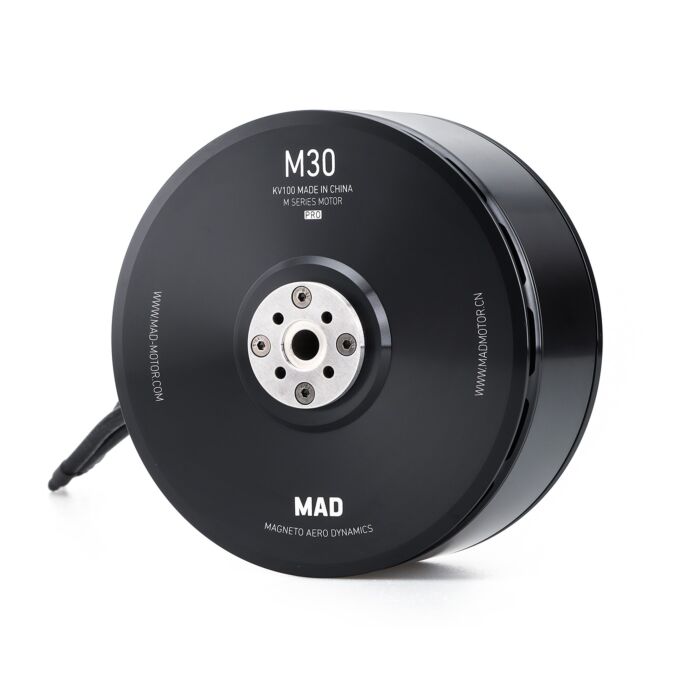

M30 Pro IPE Drone Motor
M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying or anything in between where professional industrial grade propulsion systems are required. This type of motor is made with industrial grade components.
Share

About this product

About M30 IPE PRO V1.0

Positioning:
• Heavy-class motor tailored for 12–15 kg single-axis payloads
• Built for industrial UAV platforms requiring extreme thrust and reliability
• Optimized for 40x13.1 inch carbon fiber prop, fluxer vtol 40.1x16 inch propeller

Key Features:
✔ Peak thrust: 45.2 kgf | Rated thrust: 12–15 kgf
✔ Ultra-lightweight for its class: 1630g
✔ Supports 12S voltage systems
✔ Compatible with AMPX ESC 200a 5-14s, AMPX ESC 300a (5-14s)
✔ Maximized thrust-to-weight ratio for heavy-lift, long-endurance flight

Perfect for:
• Industrial drones in logistics, VTOL, or firefighting operations
• Large multirotor platforms requiring exceptional power and propeller flexibility
• UAV builders seeking maximum performance with 40-inch prop compatibility


Motor Data
Motor Model MAD M30 IPE PRO V1.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:122 × 59 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires）
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:31 M4.2×4   D:24 M4.2×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M4×4
Bearing HR30202J / 3202A-2RZTN Disruptive test 500 V

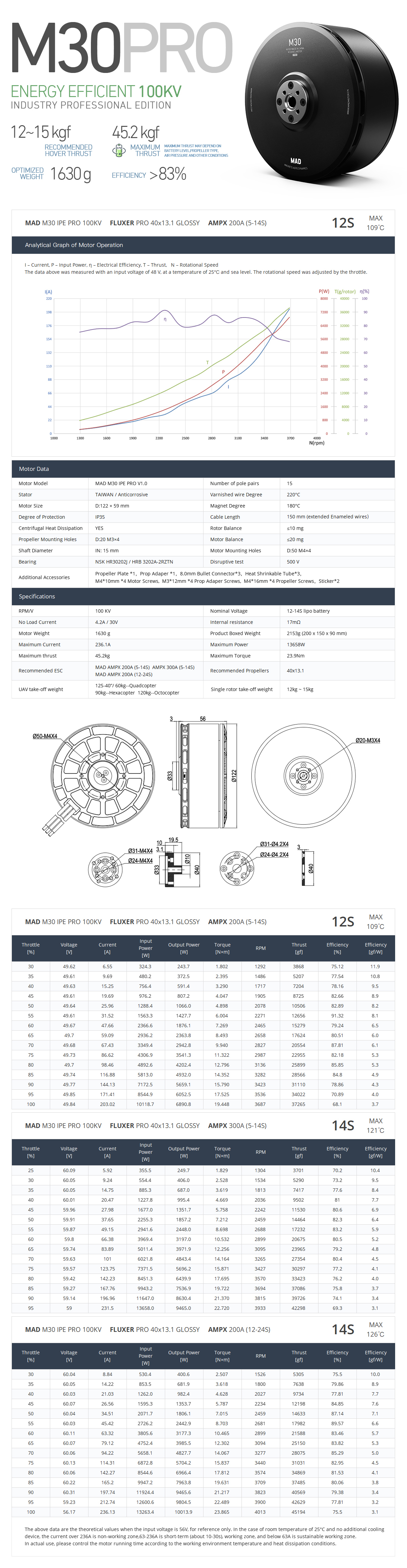

Drawing and mount holes

___________________________________________________________________________________________________________________________

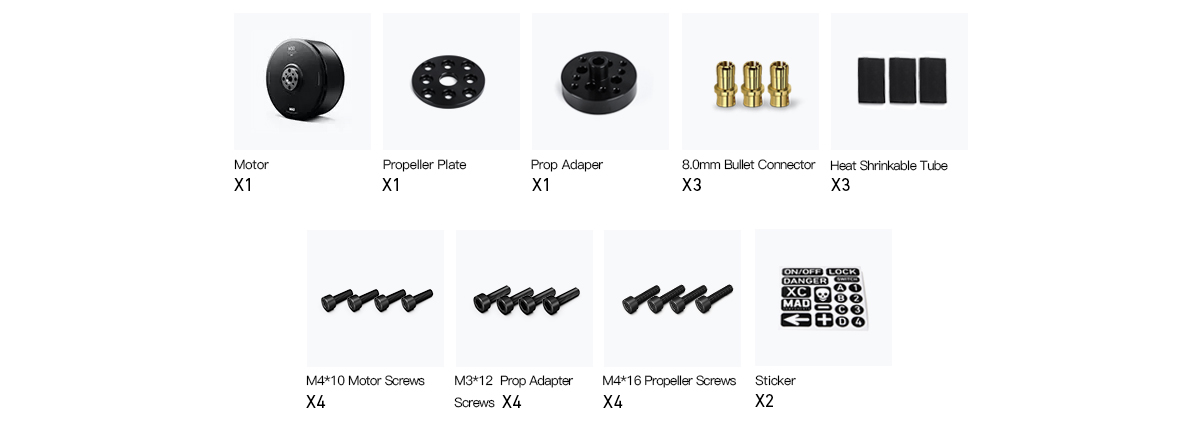

Accessories

More Information

Manufacturer MAD
