M17 IPE V1.1 Drone Motor
As low as:
$359.00
As low as:
only left for same day shipping. Order now!

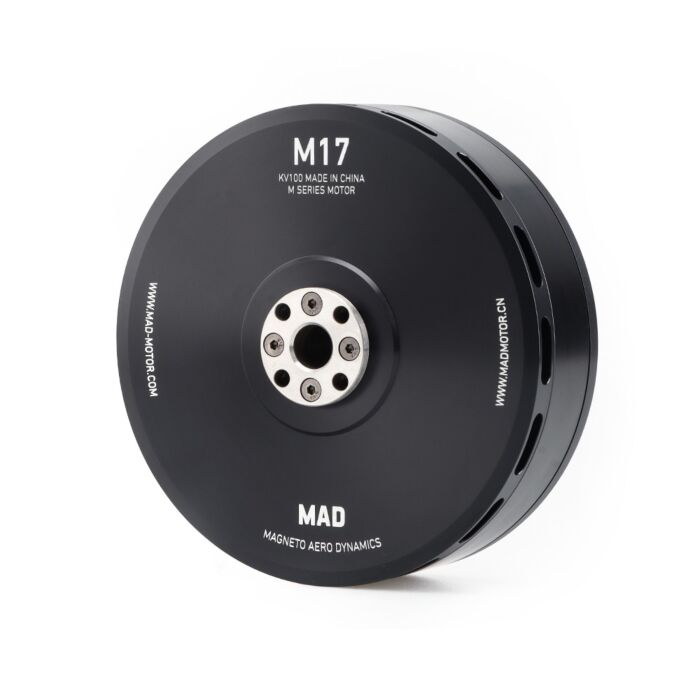

M17 IPE V1.1 Drone Motor
M17 IPE V1.1
About this product
About M17 IPE V1.1
Positioning:
• Optimized for use with 32–36 inch carbon fiber propellers
• Built for maximum thrust-to-weight ratio in demanding industrial UAV applications
Key Features:
✔ Peak thrust up to 28.8 kg per axis
✔ Rated thrust: 7–9 kg
✔ Ultra-lightweight for its class: 860g
✔ Compatible with 12S voltage systems
Perfect for:
• Heavy-lift drones in logistics, firefighting, or industrial inspection
• UAVs requiring extreme thrust with weight efficiency
• Builders aiming for stable power output on high-payload aerial platforms

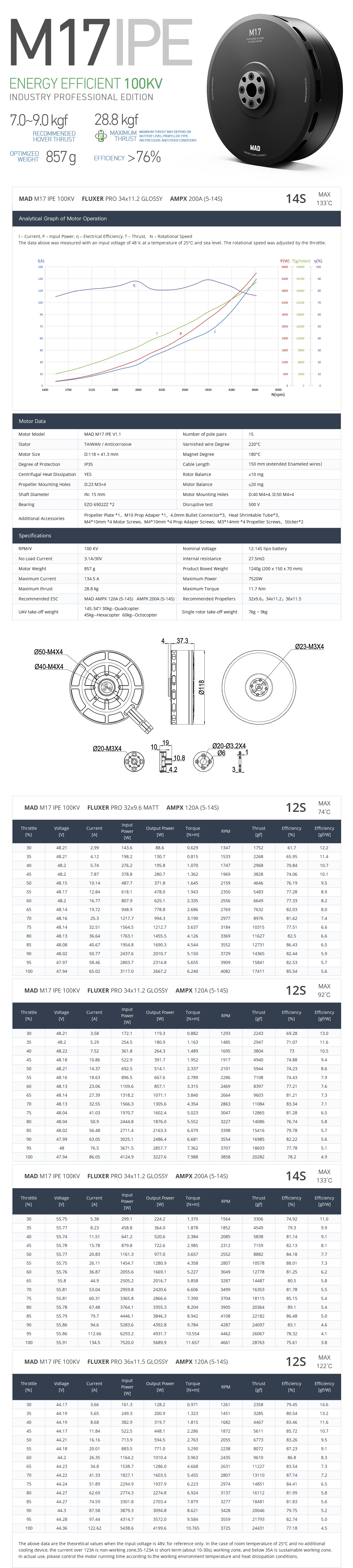

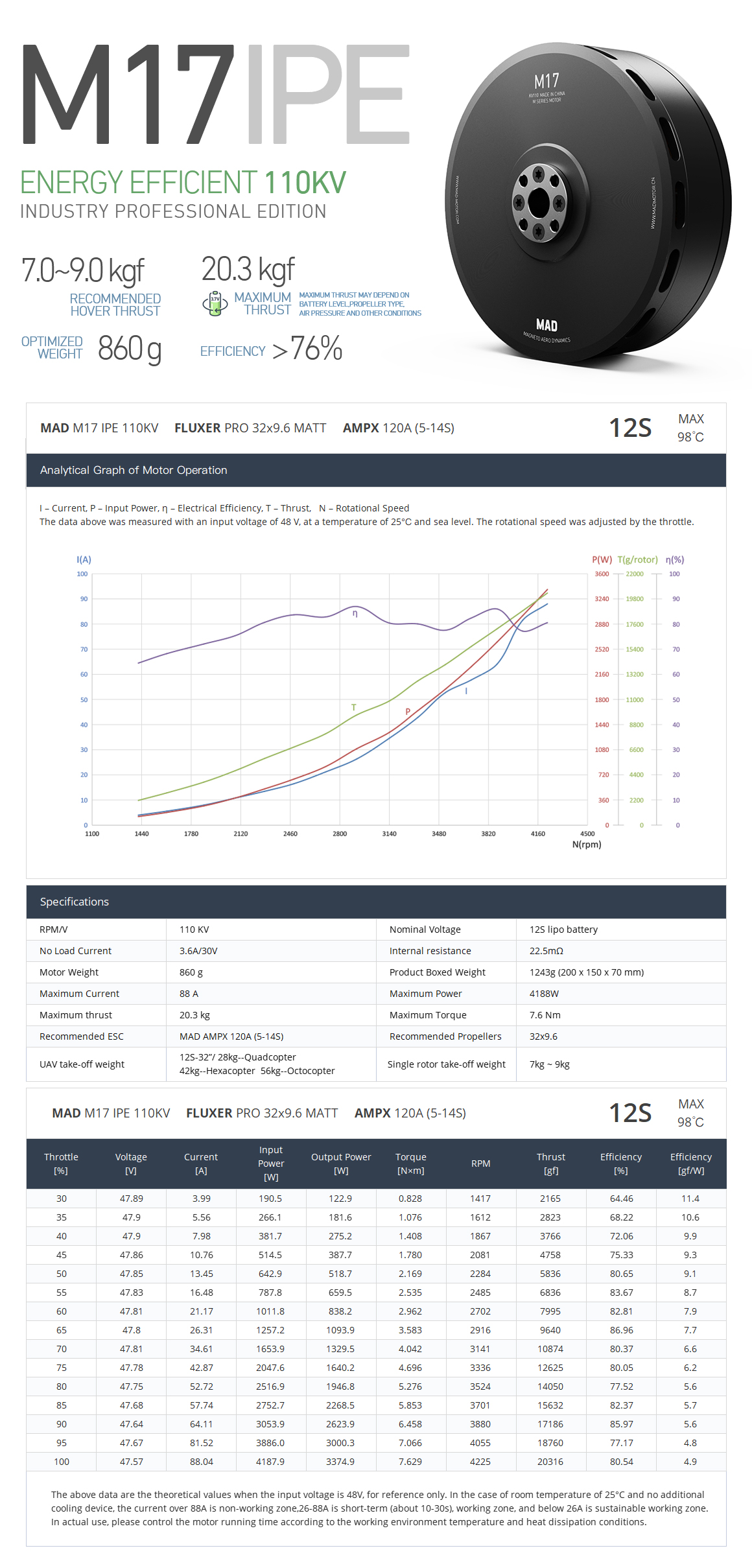

Motor Data |
|||
| Motor Model | MAD M17 IPE V1.1 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:118 × 41.3 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:23 M3×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:40 M4×4, D:50 M4×4 |
| Bearing | 6902ZZ *2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
___________________________________________________________________________________________________________________________

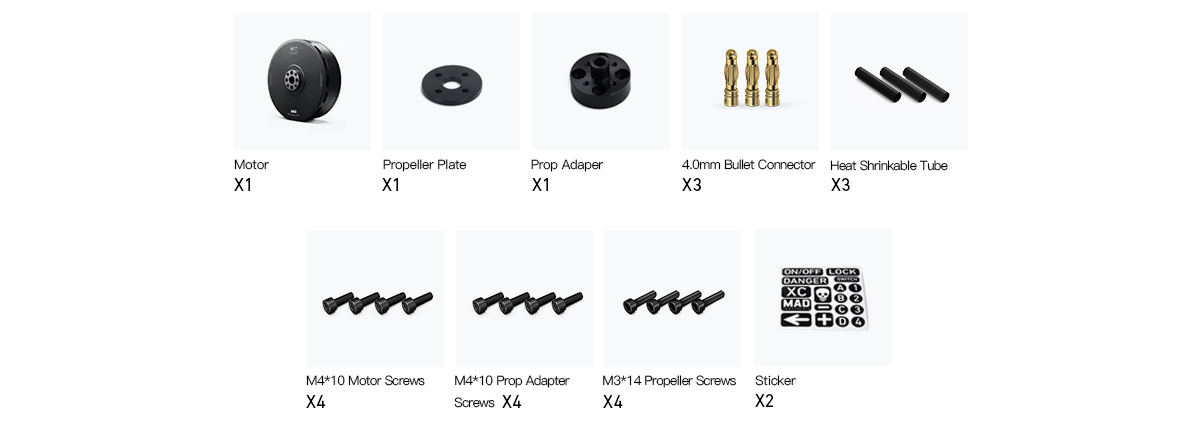

Accessories
More Information
| Manufacturer | MAD |
|---|
