M13 EEE Drone Motor
M13 EEE
About this product
About M13 EEE
Positioning:
• Heavy-lift motor optimized for 7–9 kg single-axis payloads with 36-inch carbon fiber propellers
• Engineered to maximize thrust-to-weight ratio for high-demand aerial applications
• Ideal for professional UAVs requiring high efficiency under 12S voltage
Key Features:
✔ Peak thrust up to 20.5 kg per axis
✔ Lightweight construction at only 615g
✔ Supports 12S voltage systems
Perfect for:
• Large multirotor drones with heavy payload requirements
• Industrial UAVs
• Builders focused on maximizing power output without increasing motor weight
Motor Data |
|||
| Motor Model | MAD M13 EEE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:116 × 35 mm | Motor Balance | 180°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:50 M5×4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |

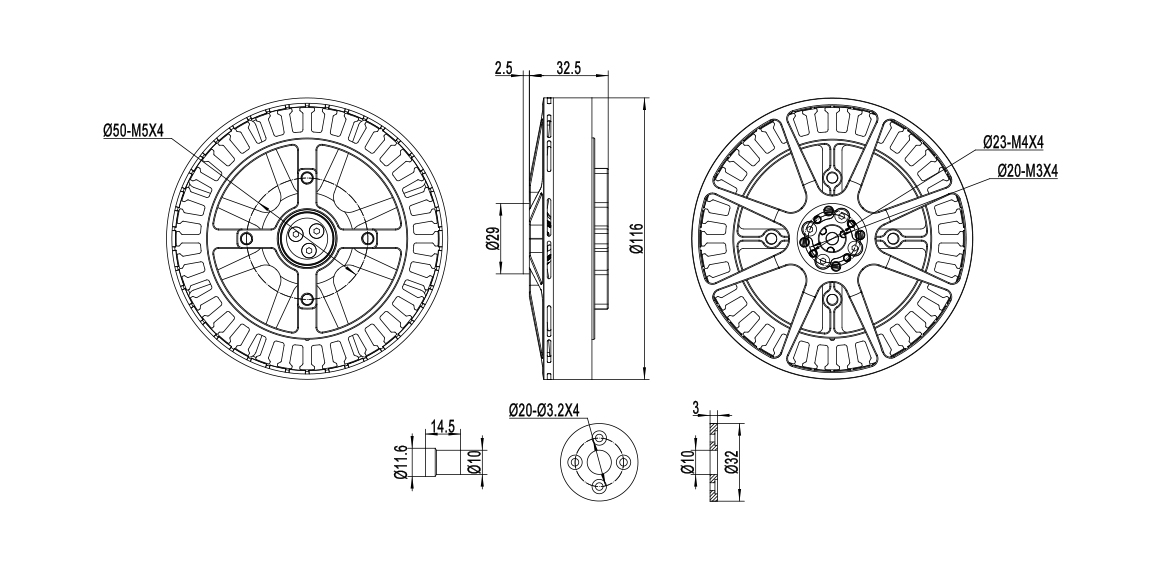

Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
