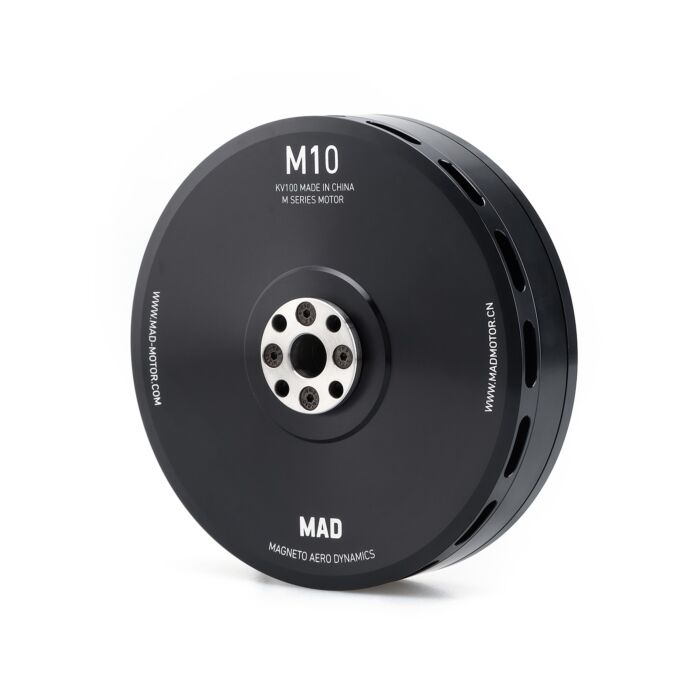

M10 IPE V2.0 Angular Contact Ball Bearing Version Drone Motor
As low as:
$329.00
As low as:
only left for same day shipping. Order now!
M10 IPE V2.0 Angular Contact Ball Bearing Version Drone Motor
M10 IPE V2.0
About this product
About M10 IPE V2.0 Drone Motor
Positioning:
• High-thrust motor designed for 5–6 kg single-axis payloads with 24–32 inch carbon fiber propellers
• Upgraded with angular contact ball bearings for enhanced durability and smoother operation
• Ideal for paramotors, heavy-lift drones, and long-endurance flight platforms
Key Features:
✔ Peak thrust up to 17.1 kg per axis
✔ Rated thrust: 5–6 kg
✔ Ultra-lightweight design at 617g
✔ Operates on 12S voltage systems
✔ Maximized thrust-to-weight ratio for high-efficiency performance
Perfect for:
• Electric paramotors and EPPG systems
• Heavy-lift UAVs with large-diameter props
• Builders requiring strong, lightweight motors for demanding aerial applications
Motor Data |
|||
| Motor Model | MAD M10 IPE V2.0 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:118 × 34 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:23 M3×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:50 M4×4, D:76 M4×4 |
| Bearing | 6902ZZ / 7902CTYNSULP4 | Disruptive test | 500 V |

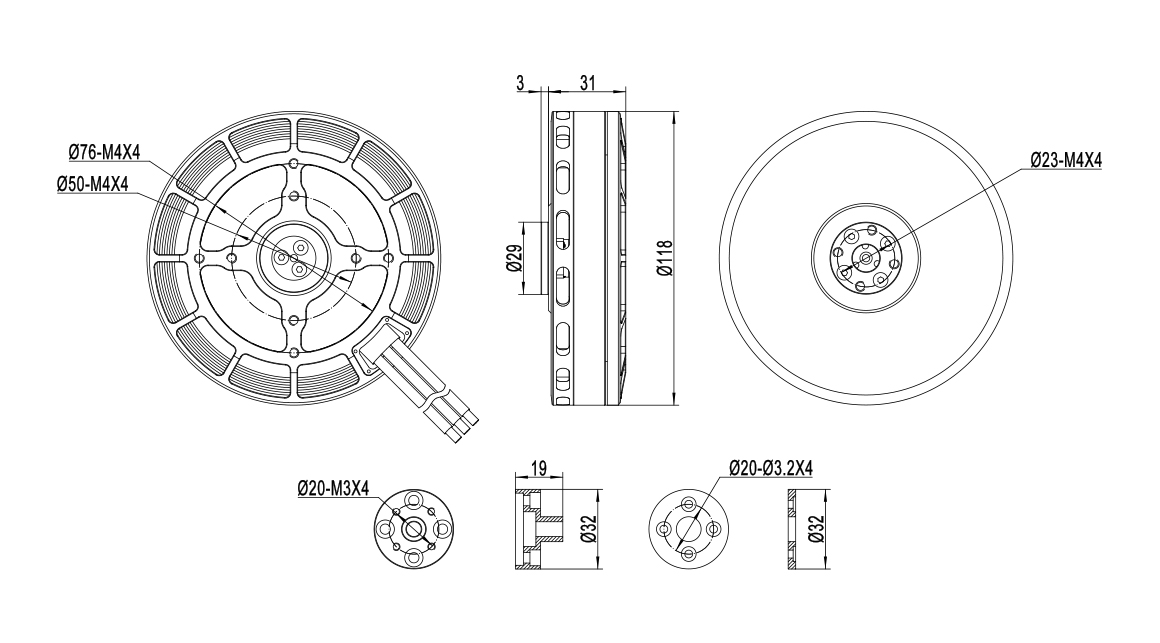

Drawing and mount holes
___________________________________________________________________________________________________________________________

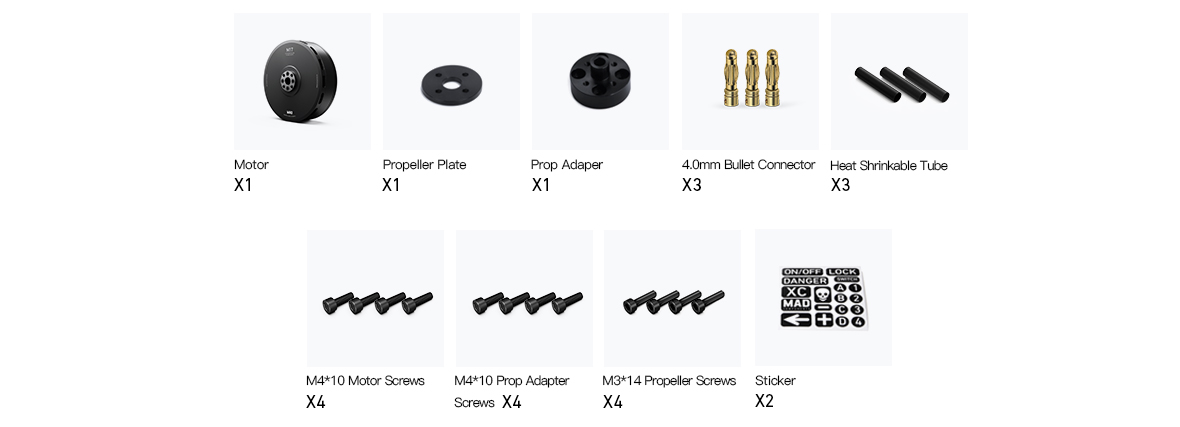

Accessories
