M10 IPE V1.0 Drone Brusless Motor for Paramotor
As low as:
$289.00
As low as:
only left for same day shipping. Order now!

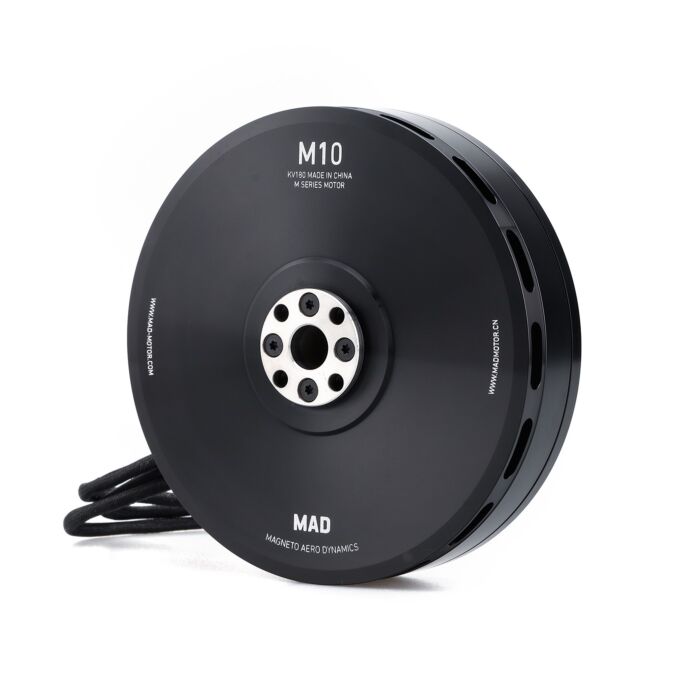

M10 IPE V1.0 Drone Brusless Motor for Paramotor
M10 IPE V1
About this product
About M10 IPE
Positioning:
• Specially designed for electric powered paragliding (EPPG) and paramotoring
• Offers reliable, clean, and efficient performance equivalent to a 50cc petrol engine
• Tailored for 5–6 kg single-axis payloads with 24–32 inch carbon fiber propellers
Key Features:
✔ Maximum thrust up to 17.1 kg per axis
✔ Motor weight: 617g
✔ Fast throttle response with stable and quiet operation
Perfect for:
• Electric paramotor and paragliding setups
• Builders seeking high-thrust, quiet propulsion for manned or semi-manned systems

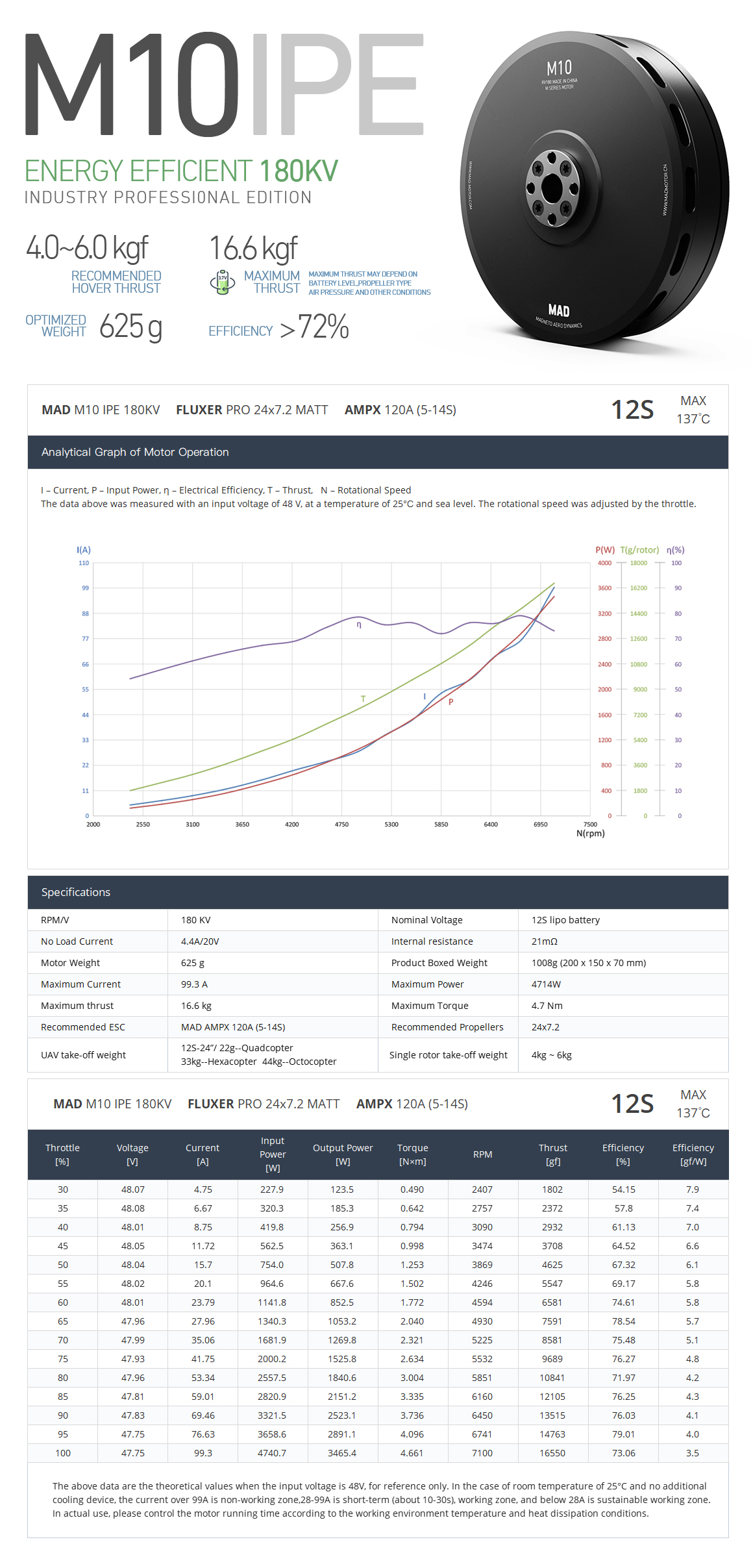

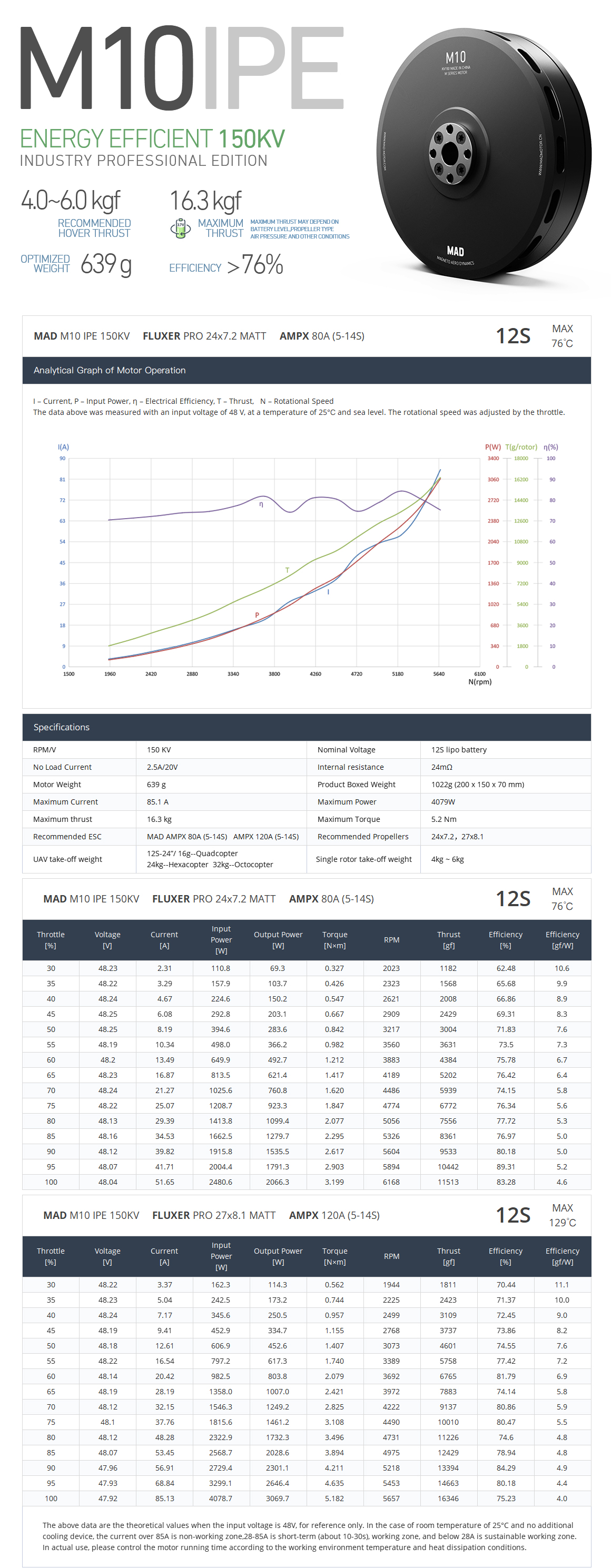

Motor Data |
|||
| Motor Model | MAD M10 IPE V1.0 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:118 × 34.3 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

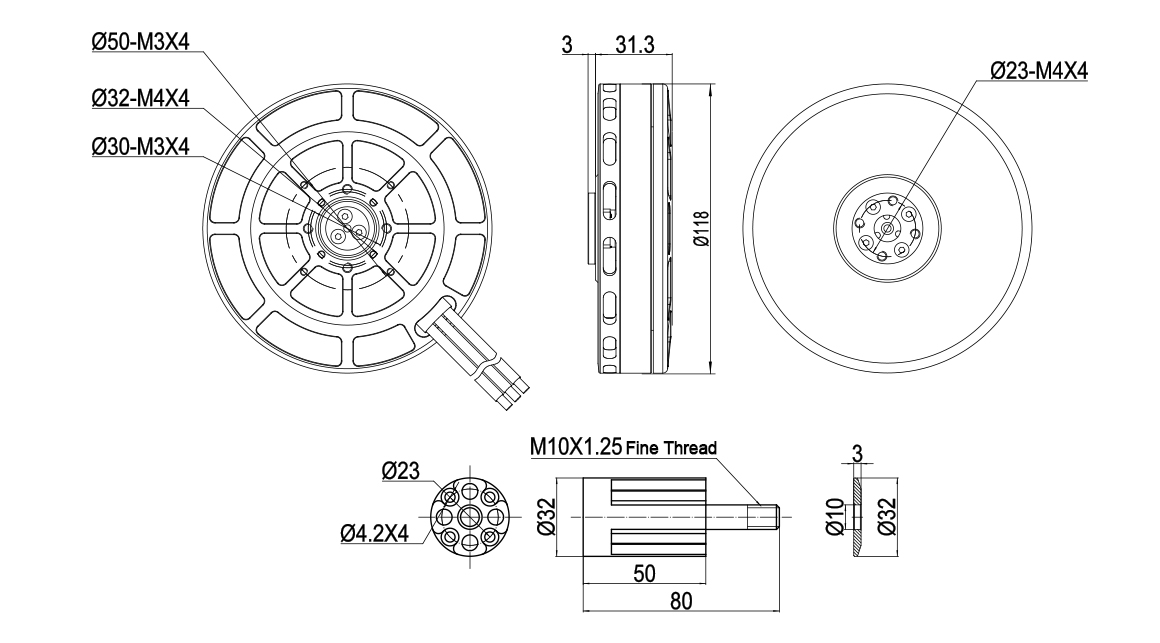

Drawing and mount holes
___________________________________________________________________________________________________________________________

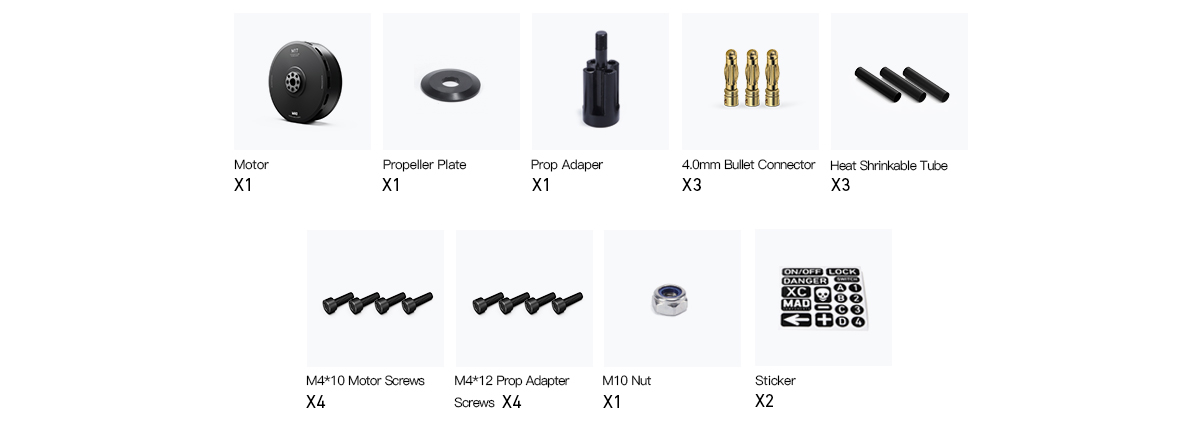

Accessories
More Information
| Manufacturer | MAD |
|---|
