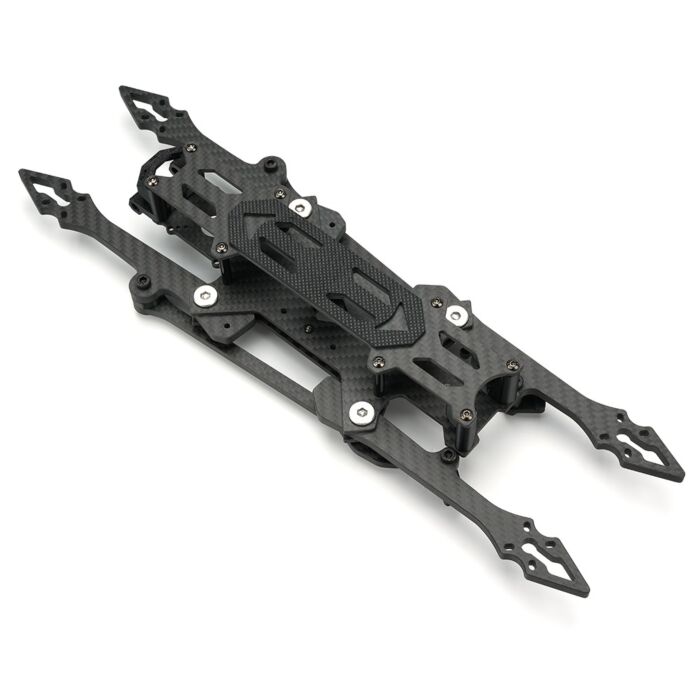

KONKER Fight SKY Foldable FPV Frame - 7 Inch / 10 Inch
As low as:
$79.00
As low as:
only left for same day shipping. Order now!
KONKER Fight SKY Foldable FPV Frame - 7 Inch / 10 Inch
5-Second Unfold, Zero Tools – Snap-Lock fasteners let the arms auto-align and lock in one step. No field screw assembly, no hole realignment, no prop-pitch recheck.40% Volume Reduction – Precision folding hinges bring all four arms parallel to the body, so the frame slides into any everyday backpack.Full T400 Carbon Fiber Body – Rigid T400 carbon plates plus T400 reinforcement rods and high-strength alloy steel joint screws hold geometry tight under hardcore freestyle loads.Zero Slop in Hardcore Flight – A new benchmark for folding frames: locked arms stay locked through punch-outs, propwash and crashes.7 Inch & 10 Inch, One Platform – 300mm / 408mm wheelbase, 25mm stack height, 30.5×30.5mm FC pattern, 20/19mm camera mount, VTX 20×20 / 25.5×25.5 / 30.5×30.5mm.
Fight SKY — the new benchmark for folding FPV frames. A 7 inch / 10 inch carbon platform that folds into a backpack in seconds and still flies with zero arm slop. Snap-Lock fasteners replace field screws: unfold, lock, fly.
Why pilots pick it
- Instant field deployment – "Unfold & Lock" in one motion, arms auto-align on the hinges.
- 40% packed volume reduction – arms fold fully parallel to the body.
- Full T400 carbon body – T400 plates, 5mm T400 reinforcement rods, high-strength alloy steel joint screws.
- Two platforms, one frame design – 300mm wheelbase (7") or 408mm (10"), 6mm / 7mm arms.
Specifications
| Parameter | 7" Folding Frame | 10" Folding Frame |
|---|---|---|
| Top / Middle / Bottom Plate | 2.5mm | 2.5mm |
| Brace Rod Thickness | 5mm | 5mm |
| Arm Thickness | 6mm | 7mm |
| Stack Height | 25mm | 25mm |
| Frame Weight | 257g | 353g |
| Wheelbase | 300mm | 408mm |
| FC Mounting Pattern | 30.5×30.5mm | 30.5×30.5mm |
| Camera Mounting Size | 20/19mm | 20/19mm |
| VTX Mounting Pattern | 20×20 / 25.5×25.5 / 30.5×30.5mm | 20×20 / 25.5×25.5 / 30.5×30.5mm |
| Material | T400 carbon fiber + alloy steel | T400 carbon fiber + alloy steel |
Package includes
1× Fight SKY folding frame kit (7" or 10"), pre-installed Snap-Lock fasteners, T400 reinforcement rods and alloy steel joint screws. Motors, electronics, props and battery not included.
More Information
| Manufacturer | MAD |
|---|
