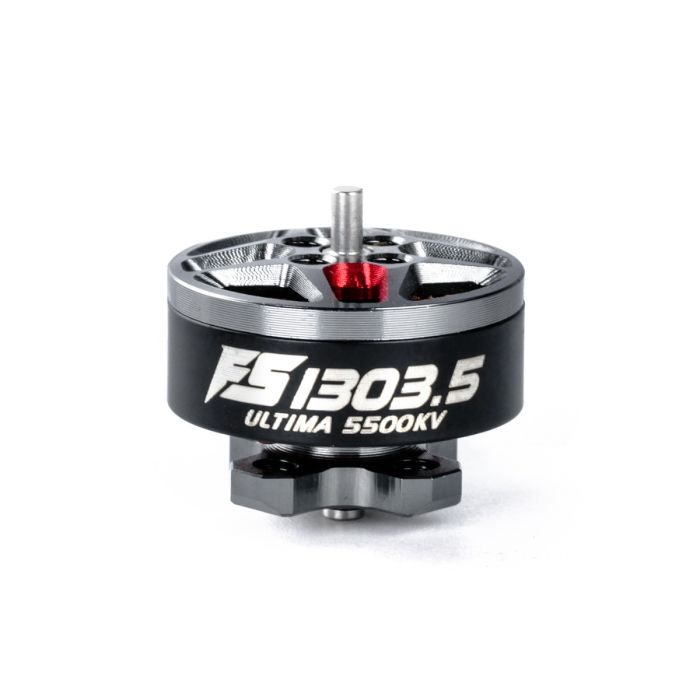

FS 1303.5 MYTHIC FPV Drone Motor

The FS series of MAD FPV brushless motors is specifically designed for freestyle flying. The development process involved six months of rigorous testing, resulting in refined aesthetics and improved functionality. The main difference between the FS and BSC series is the lightweight titanium shaft and the 0.15mm silicon steel sheet, which increases efficiency. Additionally, the product has an aesthetically pleasing appearance due to secondary anodizing.

Motor Data
Motor Model	MAD Ultima FS1303.5 V1.0	Number of pole pairs	9N12P
Motor Size	D:16.5 × 14.1 mm	Rotor Balance	≤3 mg
Propeller Mounting Holes	D:5 M2X4	Motor Mounting Holes	D:9 M2×4
Shaft Diameter	IN: 1.5 mm	Cable Length	130 mm 24# Awg(Black) silicone

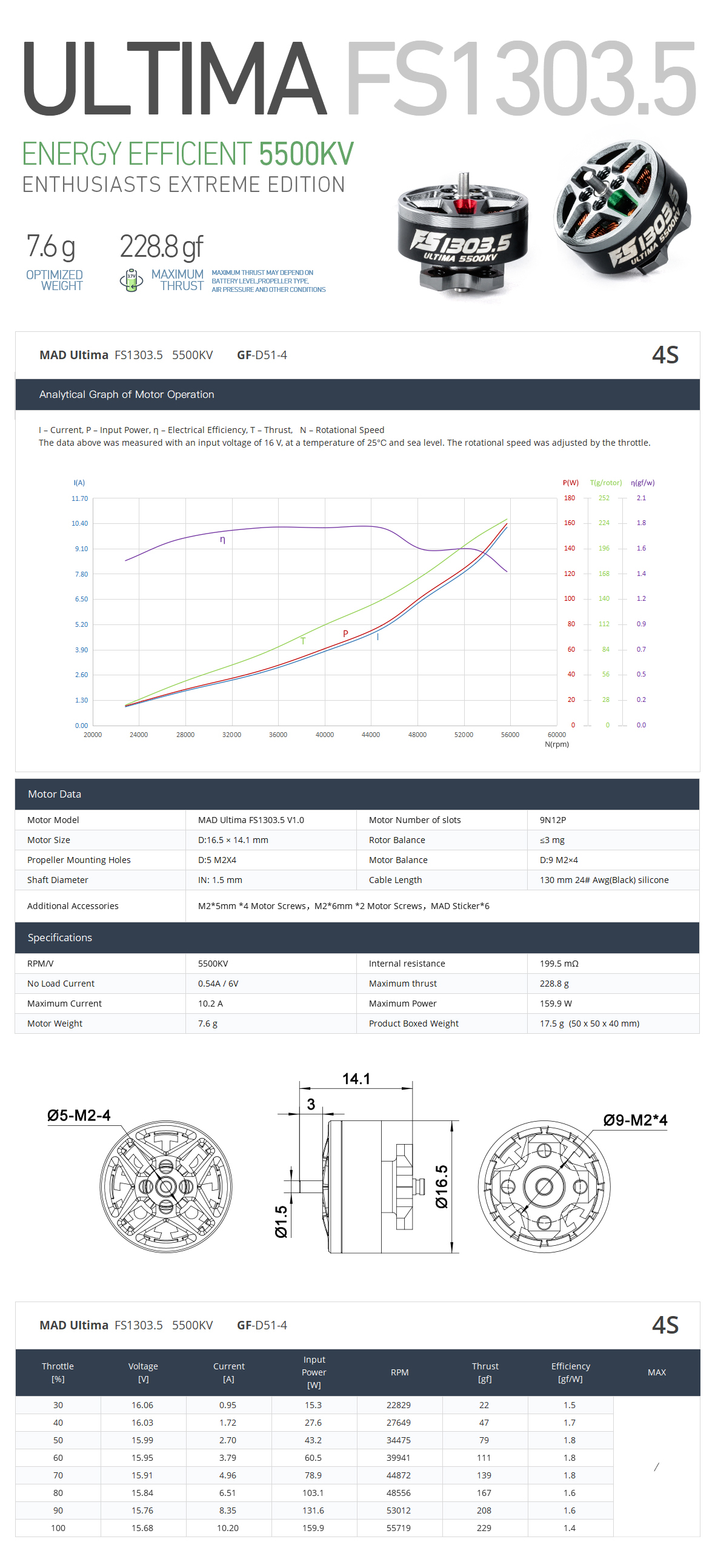

 Drawing and mount holes
