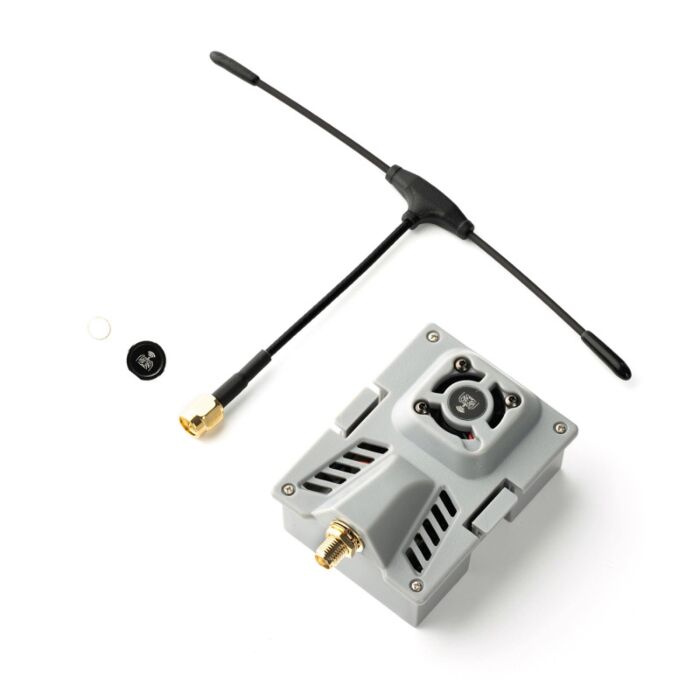

ExpressLRS module ES900TX/ES900RX Long range ELRS 915mhz/868mhz optional

As low as: $7.00

only left for same day shipping. Order now!
Model: ExpressLRS module ES900TX/ES900RX
Selected SKU: Select options

Options

ExpressLRS module ES900TX/ES900RX Long range ELRS 915mhz/868mhz optional
The ES900TX is a high-performance ExpressLRS transmitter module operating on the 915MHz or 868MHz long-range sub-GHz frequencies. Designed for open-source ultra-long-range FPV drone piloting, it interfaces seamlessly with your radio transmitter via the CRSF protocol. With a maximum output power exceeding 30dBm (1W), it delivers highly stable, low-latency control links for challenging long-range or freestyle flights.

ES900 RX ES900TX

MCU

ESP8285

ESP32+ESP8285

RF Chip

SX1276IMLTRT

SX1276IMLTRT

Antenna plug

IPEX1

SMA

Dimension

12mm*12mm*3mm

55mm*39mm*11mm

Weight

0.6g

/

Firmware upload Betaflight pass-through or Wifi

Wifi or Configurator
