DJI O4 Air Unit Pro

$275.00

only left for same day shipping. Order now!
Model: 0116DH0010
DJI O4 Air Unit Pro
In stock at our US warehouse and ready to ship. Orders are fulfilled directly from the United States for faster delivery. Note: This product is 100% genuine DJI hardware supplied in bulk/OEM packaging (clear protective bag) and does not include retail box packaging or printed manuals. Thank you for choosing MAD!

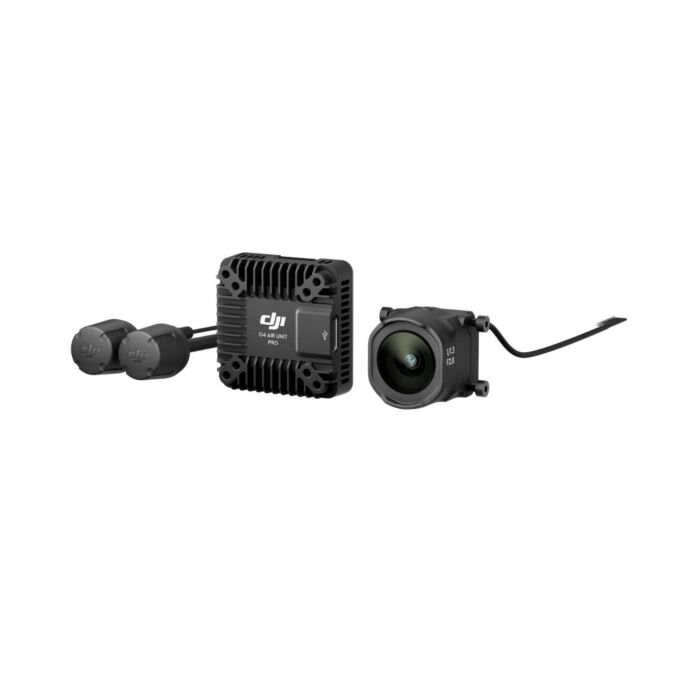

DJI O4 Air Unit Pro – 4K Digital FPV Transmission System

The DJI O4 Air Unit Pro is DJI’s flagship digital FPV transmission upgrade, built for pilots and creators who want   top-tier image quality, ultra-low latency, and long-range performance in a compact, build-friendly package.

Professional 4K Imaging

Featuring a large 1/1.3-inch CMOS sensor, the O4 Air Unit Pro records up to 4K/120fps onboard, delivering smooth,   high-frame-rate footage directly from your FPV build—often eliminating the need for an external action camera.

Ultra-Wide Cinematic Field of View

A 155° ultra-wide FOV (approximately 12 mm equivalent) captures immersive perspectives ideal for freestyle lines,   racing, and cinematic long-range flights.

Advanced O4 Digital Transmission Performance

Powered by DJI’s O4 digital system, pilots can expect a crisp 1080p/100fps live view with H.265 encoding for efficient,   high-quality video. In Racing Mode, latency can drop to 15 ms (with DJI Goggles 3), and the system supports up to   8 aircraft racing simultaneously. Under optimal FCC conditions, maximum transmission range can reach up to 15 km, with   intelligent auto frequency hopping for stable link performance.

10-Bit Color & Stabilization Tools

Capture in 10-bit D-Log M for improved dynamic range and flexible color grading in post-production.   Built-in RockSteady 3.0 electronic stabilization helps keep footage smooth during aggressive maneuvers, and the system   is Gyroflow compatible for additional tuning workflows.

Compact, Build-Friendly Design

Weighing approximately 32 g (including camera module) with a transmission module footprint of 33.5 × 33.5 × 13 mm,   it integrates cleanly into 3-inch+ freestyle and cinewhoop builds. Supports 2–6S power input, dual antennas, and up to   1200 mW output for strong signal performance.

Key Highlights

  • 1/1.3" CMOS sensor | 4K/120fps onboard recording
  • 155° ultra-wide FOV + 10-bit D-Log M
  • Up to 15 ms ultra-low latency in Racing Mode (DJI Goggles 3)
  • Up to 15 km max transmission range (FCC conditions)
  • 1080p/100fps H.265 live feed
  • RockSteady 3.0 stabilization
  • 4 GB internal storage + microSD support (up to 512 GB)
  • Compatible with DJI Goggles 3, Goggles 2, DJI Integra, and supported controllers

Whether you’re building for cinematic FPV, racing, or long-range exploration, the DJI O4 Air Unit Pro is designed to   deliver premium video quality, responsiveness, and reliable link performance.
