DJI O4 Air Unit Pro + Goggles 3 Bundle

$0.00

only left for same day shipping. Order now!
The price depends on the chosen options

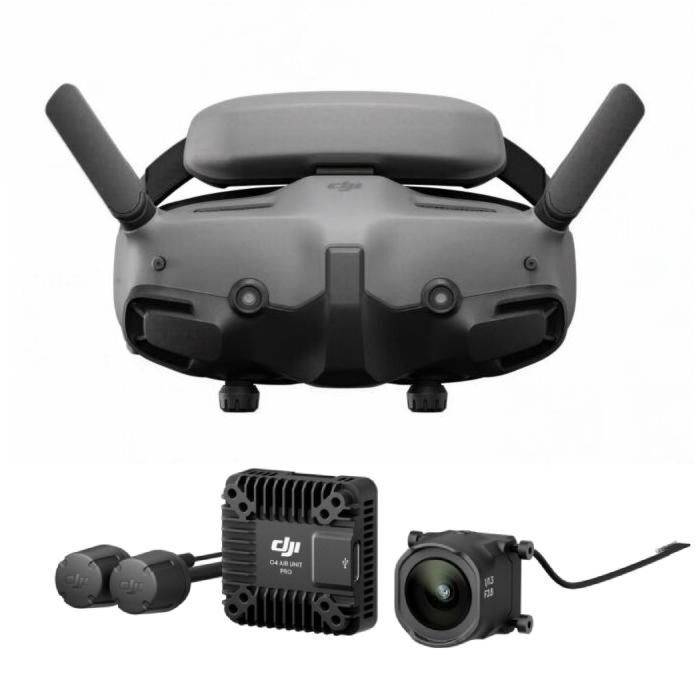

DJI O4 Air Unit Pro + Goggles 3 Bundle
The DJI Goggles 3 provide an immersive, high-definition FPV flying experience powered by a crisp Micro-OLED display. A major highlight is the innovative Real View Picture-in-Picture (PiP) feature and integrated pass-through cameras, allowing you to monitor your physical surroundings for enhanced safety without removing the headset. Driven by the advanced O4 video transmission system, it delivers ultra-low latency down to 24 ms and a transmission range extending up to 13 km. Additionally, the goggles incorporate a convenient flip-up hinge and a comfortable, streamlined design perfect for extended flight sessions. Bundled with DJI O4 Ait Unit Pro. Note: This product is 100% genuine DJI hardware supplied in bulk/OEM packaging (clear protective bag) and does not include retail box packaging or printed manuals.

Experience true HD FPV footage with the DJI Goggles 3. Now featuring pass-through cameras and flip-up hinge.

Features

Visionary Breakthrough
DJI Goggles 3 now has Real View PiP (Picture-In-Picture). Observe your surroundings without removing the goggles, for more safety and immersion. The Micro-OLED high-definition display and ultra-low-latency transmission bring the world in to view.

Specifications

Video Transmission
  • Video Transmission System: O4
  • Live View Quality: 1080p@30/50/60/100fps
  • Operating Frequency:
-2.400-2.4835 GHz
-5.170-5.250 GHz*
-5.725-5.850 GHz*
* 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.
  • Transmitter Power (EIRP):
-2.4 GHz
＜33 dBm (FCC)
＜20 dBm (CE/SRRC/MIC)
-5.1 GHz
< 23 dBm (CE)
-5.8 GHz
＜33 dBm (FCC)
＜30 dBm (SRRC)
< 14 dBm (CE)
  • Communication Bandwidth Max 60 MHz
  • Max Transmission Distance (unobstructed, free of interference)
-FCC: 13 km (subject to the aircraft's max flight distance)
-CE: 10 km
-SRRC: 10 km
-MIC: 10 km
* Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.
  • Max Transmission Distance (unobstructed, with interference)
-Strong Interference: Urban landscape, approx. 1.5-4 km
-Medium Interference: Suburban landscape, approx. 4-10 km
-Low Interference: Suburb/seaside, approx. 10-13 km
* Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
  • Max Transmission Distance (obstructed, with interference)
-Low Interference and Obstructed by Buildings: approx. 0-0.5 km
-Low Interference and Obstructed by Trees: approx. 0.5-3 km
* Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
  • Max Download Speed: Wi-Fi: 30 MB/s
* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
  • Lowest Latency With DJI Goggles 3:
-1080p/100fps Video Transmission Quality: 24 ms
-1080p/60fps Video Transmission Quality: 40 ms
  • Max Video Bitrate: 60Mbps
  • Antennas: 4 antennas, 2T4R

Includes

  • 1x DJI Goggles 3

DJI O4 Air Unit Pro – 4K Digital FPV Transmission System

The DJI O4 Air Unit Pro is DJI’s flagship digital FPV transmission upgrade, built for pilots and creators who want   top-tier image quality, ultra-low latency, and long-range performance in a compact, build-friendly package.

Professional 4K Imaging

Featuring a large 1/1.3-inch CMOS sensor, the O4 Air Unit Pro records up to 4K/120fps onboard, delivering smooth,   high-frame-rate footage directly from your FPV build—often eliminating the need for an external action camera.

Ultra-Wide Cinematic Field of View

A 155° ultra-wide FOV (approximately 12 mm equivalent) captures immersive perspectives ideal for freestyle lines,   racing, and cinematic long-range flights.

Advanced O4 Digital Transmission Performance

Powered by DJI’s O4 digital system, pilots can expect a crisp 1080p/100fps live view with H.265 encoding for efficient,   high-quality video. In Racing Mode, latency can drop to 15 ms (with DJI Goggles 3), and the system supports up to   8 aircraft racing simultaneously. Under optimal FCC conditions, maximum transmission range can reach up to 15 km, with   intelligent auto frequency hopping for stable link performance.

10-Bit Color & Stabilization Tools

Capture in 10-bit D-Log M for improved dynamic range and flexible color grading in post-production.   Built-in RockSteady 3.0 electronic stabilization helps keep footage smooth during aggressive maneuvers, and the system   is Gyroflow compatible for additional tuning workflows.

Compact, Build-Friendly Design

Weighing approximately 32 g (including camera module) with a transmission module footprint of 33.5 × 33.5 × 13 mm,   it integrates cleanly into 3-inch+ freestyle and cinewhoop builds. Supports 2–6S power input, dual antennas, and up to   1200 mW output for strong signal performance.

Key Highlights

  • 1/1.3" CMOS sensor | 4K/120fps onboard recording
  • 155° ultra-wide FOV + 10-bit D-Log M
  • Up to 15 ms ultra-low latency in Racing Mode (DJI Goggles 3)
  • Up to 15 km max transmission range (FCC conditions)
  • 1080p/100fps H.265 live feed
  • RockSteady 3.0 stabilization
  • 4 GB internal storage + microSD support (up to 512 GB)
  • Compatible with DJI Goggles 3, Goggles 2, DJI Integra, and supported controllers

Whether you’re building for cinematic FPV, racing, or long-range exploration, the DJI O4 Air Unit Pro is designed to   deliver premium video quality, responsiveness, and reliable link performance.
