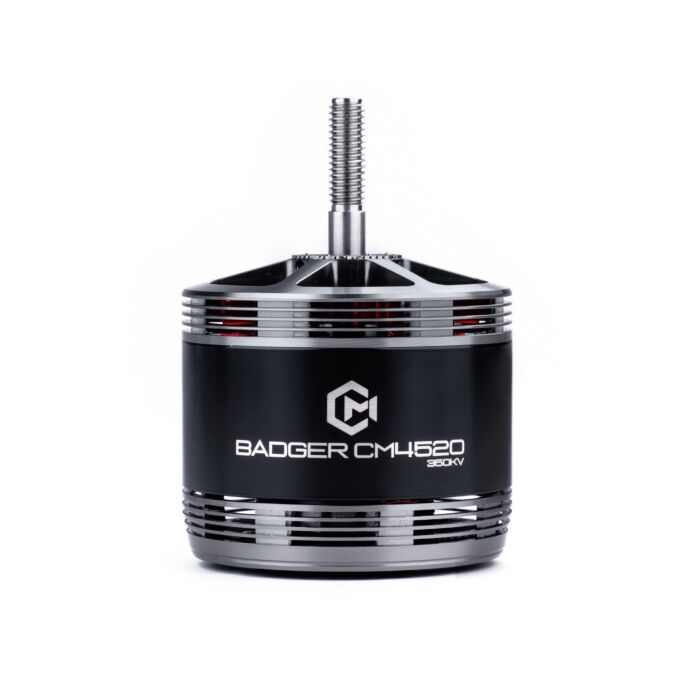

CM 4520 BADGER FPV Drone Motor
As low as:
$87.00
As low as:
only left for same day shipping. Order now!
CM 4520 BADGER FPV Drone Motor
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.

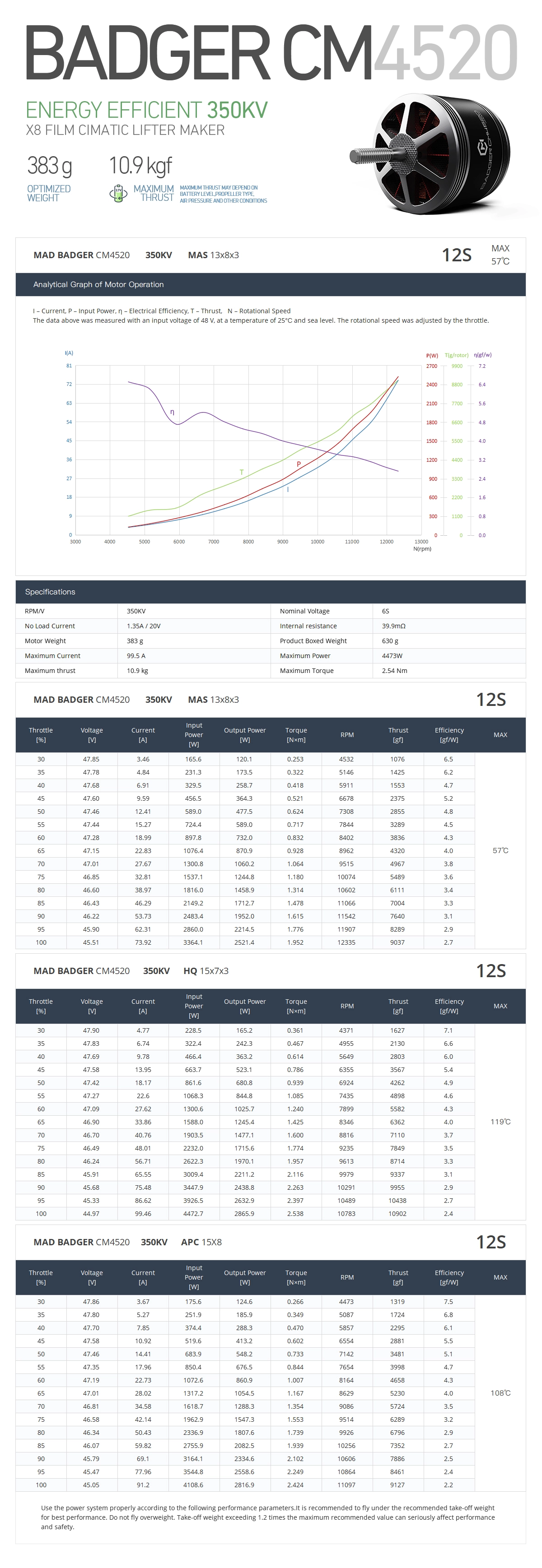

| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD BADGER CM4520 V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |

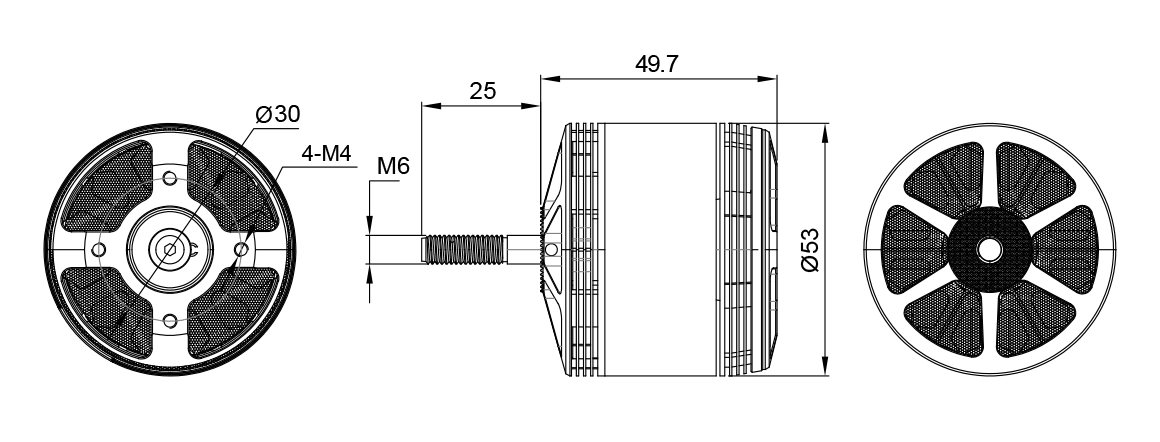

| Motor Size | D:53 × 74.7 mm | Motor Balance | 180°C |
| Propeller Mounting Holes | M6 Nut | Cable Length | 750 mm 14# Awg silicone |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:30 M4×4 |
| Bearing | 606 ZZ *3 | Disruptive test | 500 V |
More Information
| Manufacturer | MAD |
|---|
