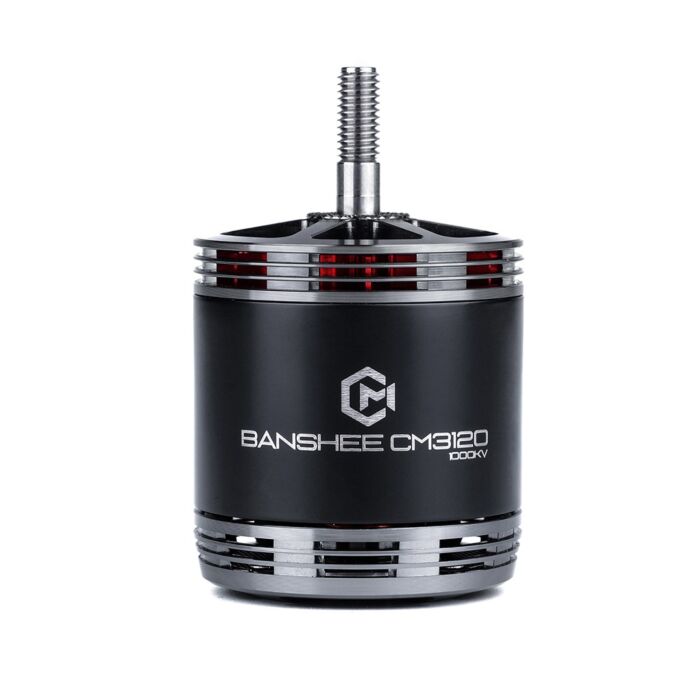

CM 3120 BANSHEE FPV Drone Motor
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.1. Two ultra-thin stainless steel dust filters are added inside the stator.2. The split exhaust blade is added inside the rotor.

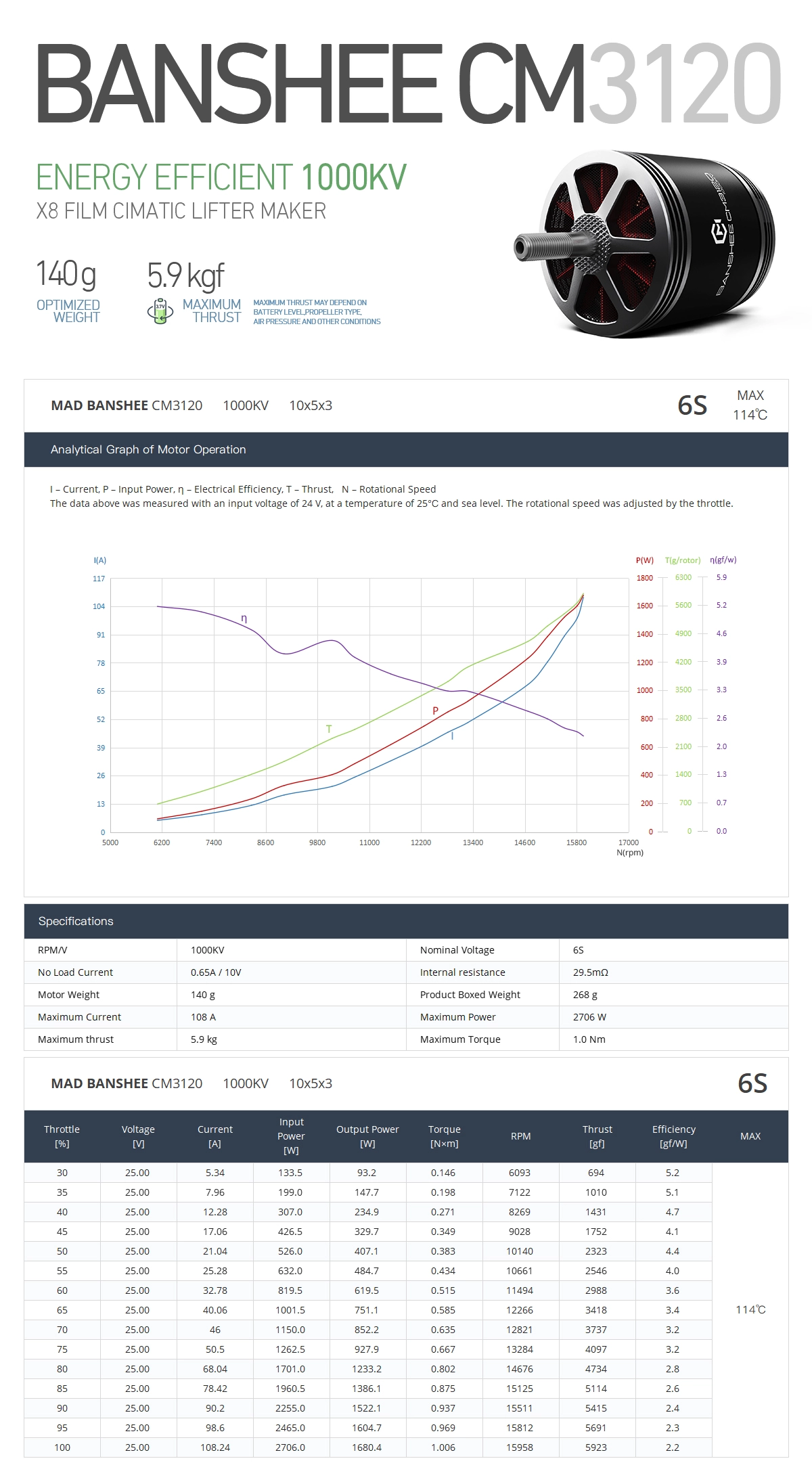

| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD BANSHEE CM3120 V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:37.1 × 59 mm | Motor Balance | 150°C |
| Propeller Mounting Holes | M6 Nut | Cable Length | 300 mm 16# Awg silicone |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:19 M3×4 |
| Bearing | 685*2 | Disruptive test | 500 V |
Drawing and mount holes
More Information
| Manufacturer | MAD |
|---|
