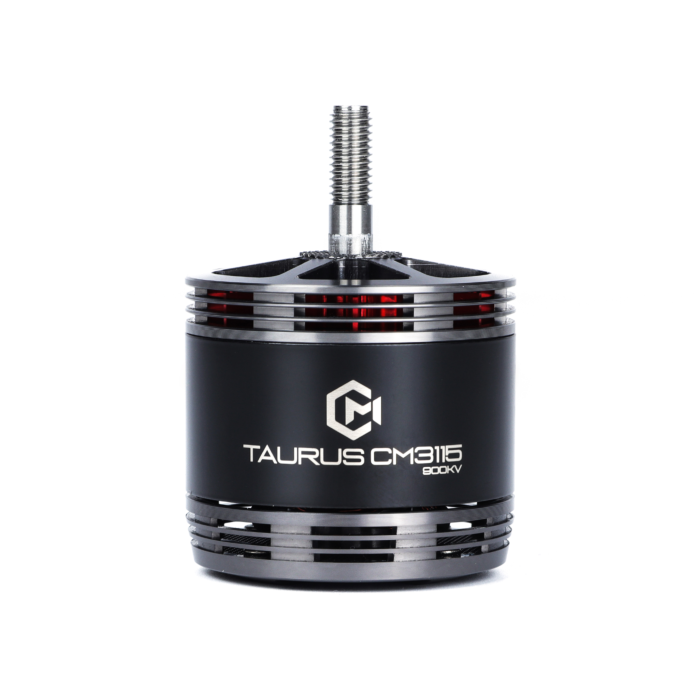

CM 3115 TAURUS FPV Drone Motor
As low as:
$54.90
As low as:
only left for same day shipping. Order now!
CM 3115 TAURUS FPV Drone Motor
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD TAURUS CM3115 V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:37.1×52.8 mm | Motor Balance | 150°C |
| Propeller Mounting Holes | IN: 5 mm | Cable Length | 300 mm 18# Awg silicone |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:19 M3×4 |
| Bearing | 685*2 | Disruptive test | 500 V |

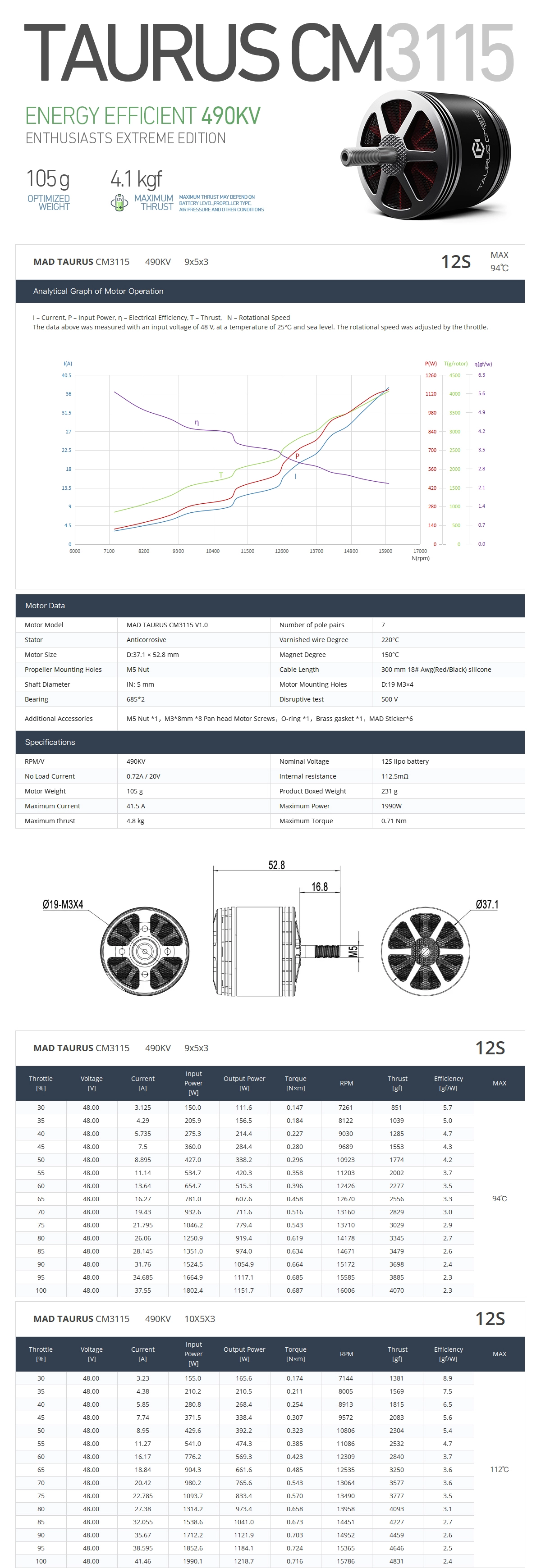

Drawing and mount holes
