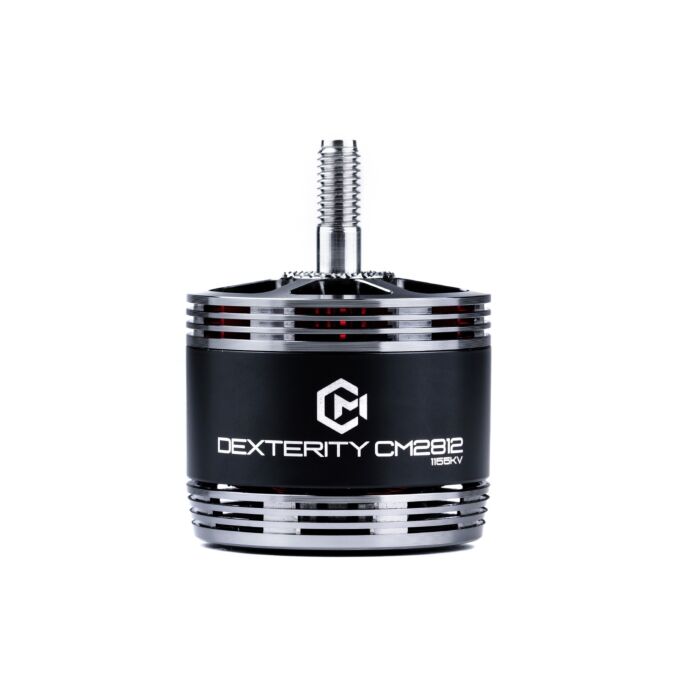

CM 2812 DEXTERITY FPV Drone Motor
As low as:
$42.90
As low as:
only left for same day shipping. Order now!
CM 2812 DEXTERITY FPV Drone Motor
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.1. Two ultra-thin stainless steel dust filters are added inside the stator.2. The split exhaust blade is added inside the rotor.
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD DEXTERITY CM2812 V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:33.6 × 44.8 mm | Motor Balance | 150°C |
| Propeller Mounting Holes | M5 Nut | Cable Length | 250 mm 18# Awg silicone |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:19 M3×4 |
| Bearing | 685*2 | Disruptive test | 500 V |

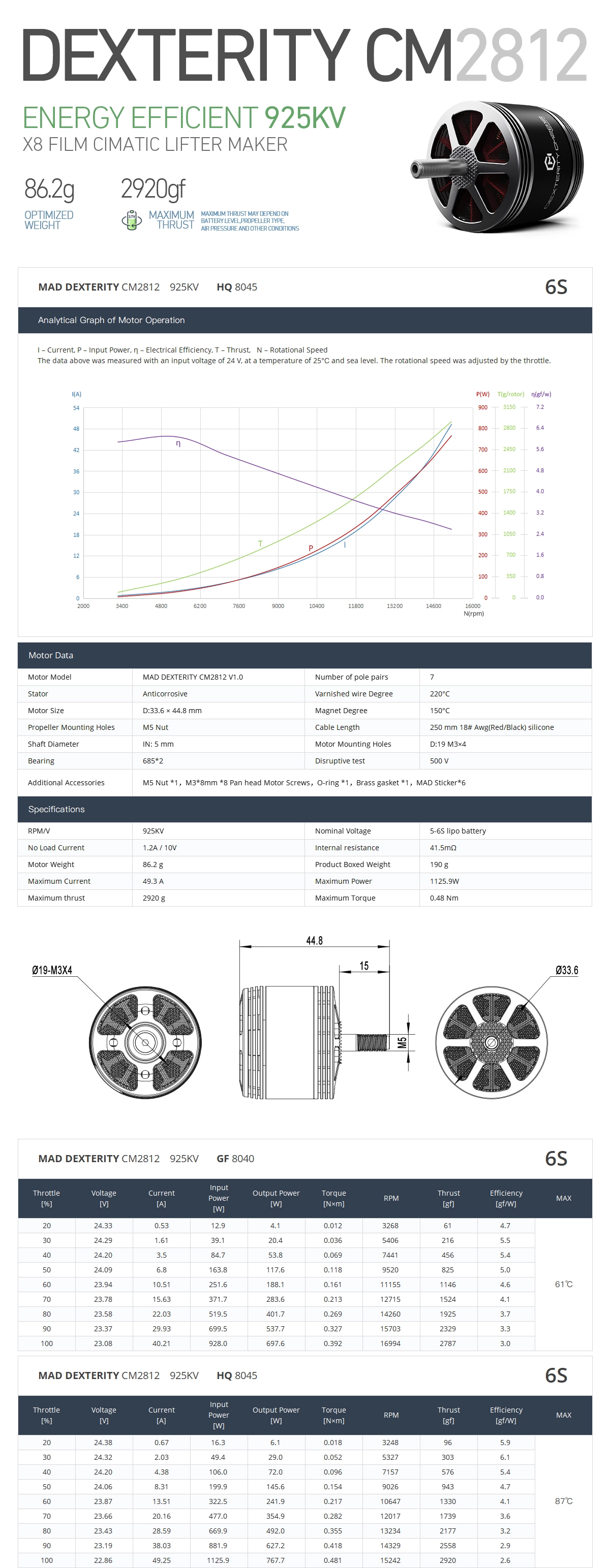

Drawing and mount holes
Include
More Information
| Manufacturer | MAD |
|---|
