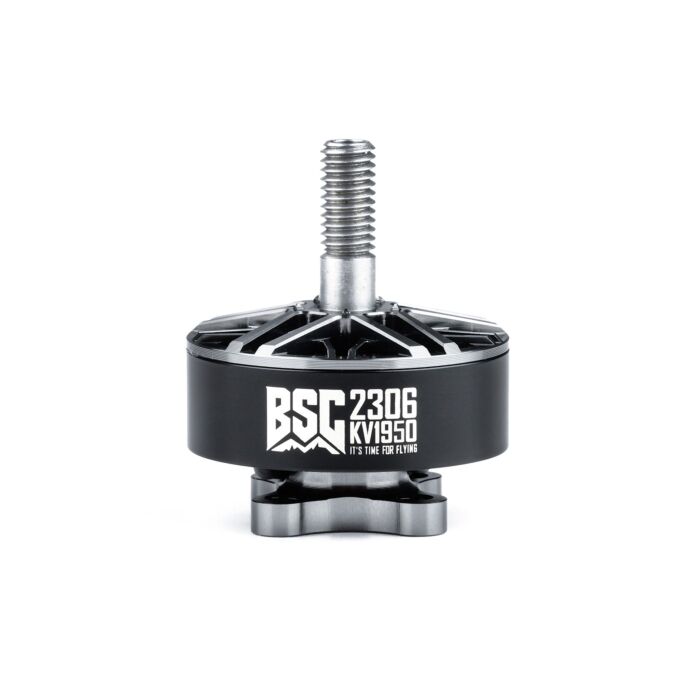

BSC 2306 FPV Drone Motor
As low as:
$14.99
As low as:
only left for same day shipping. Order now!
BSC 2306 FPV Drone Motor
Recommended accessories: 1.Motors: 2205/2206/2207/2305/2306ESC: 30A-50A Propeller: 5 inch Battery: 4S 1500mAh 6s 11 50mAh2.Motors: 2207 /2207.5/2305/2306/2407ESC: 35A-60A Propeller: 6 inch Battery: 4S 1500mAh 6s 1300mAh3.Motors: 2305/2306/2407/2408/2507ESC: 40A-60A Propeller: 7 inch Battery: 4S 1800mAh 6s 2200mAh

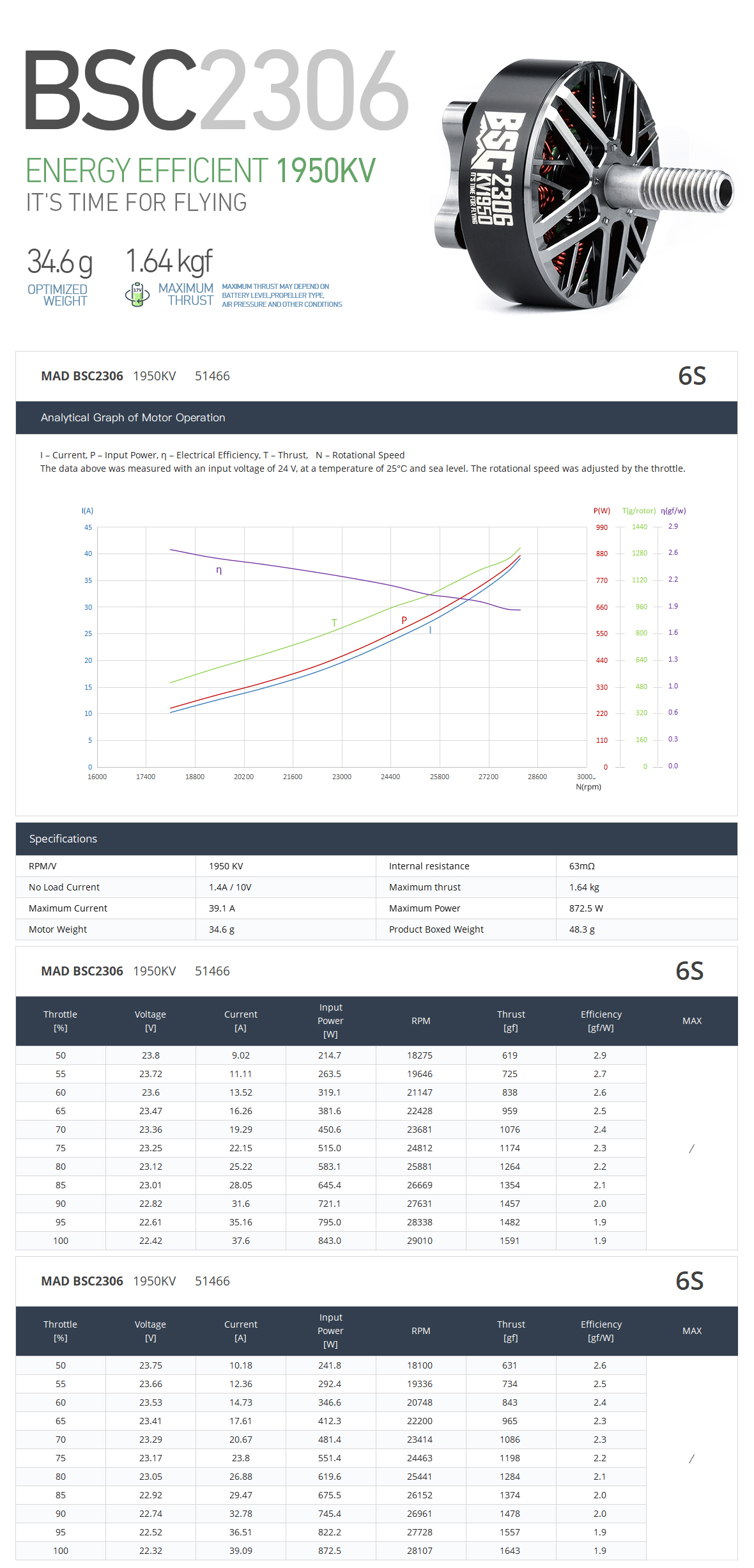

Motor Data |
|||
| Motor Model | MAD BSC2306 V1.0 | Motor Number of slots | 12N14P |
| Motor Size | D:28.2 × 31.9 mm | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | M5 Nut | Motor Balance | D:16 M3×4 |
| Shaft Diameter | IN: 4 mm | Cable Length | 150 mm 20# Awg(Black) silicone |
Drawing and mount holes
Download
BSC 2306 STP
BSC 2306 SPECIFICATIONS
More Information
| Manufacturer | MAD |
|---|
