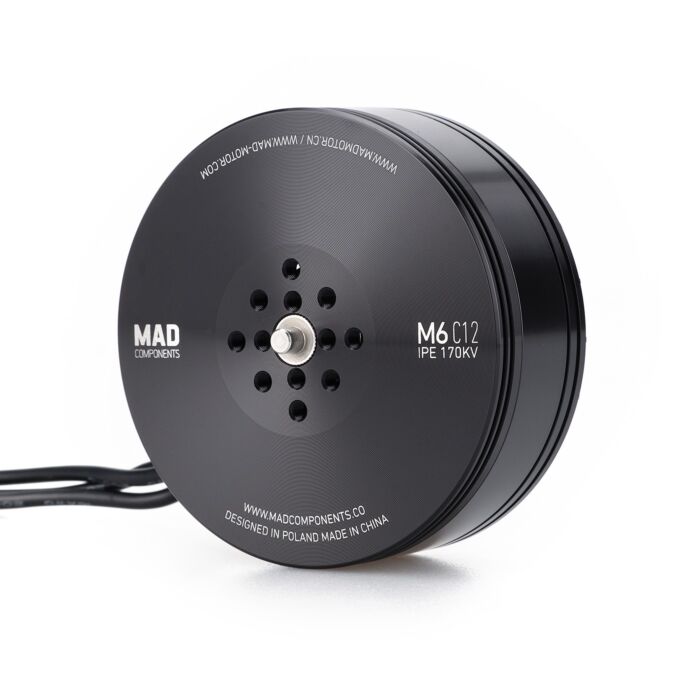

Antimatter M6C12 IPE V3 Drone Motor
As low as:
$146.00
As low as:
only left for same day shipping. Order now!
Antimatter M6C12 IPE V3 Drone Motor
M6C12 IPE V3
About this product
About M6C12 IPE V3.0
• Engineered for 2.5–5 kg single-axis payloads with a focus on high thrust and operational stability
• Optimized for use with 18–24 inch carbon fiber propellers
• Supports 6S to 12S voltage, ideal for high-demand multi-rotor applications
Key Features:
✔ Capable of delivering up to 10.8 kg thrust per axis
✔ Robust 281g motor build for increased strength and endurance
✔ Designed for maximum efficiency within the ANTIMATTER lineup
Perfect for:
• Industrial drones requiring stable lift for 2.5–5 kg payloads per rotor
• Users seeking advanced performance in long-range or heavy-lift flight missions

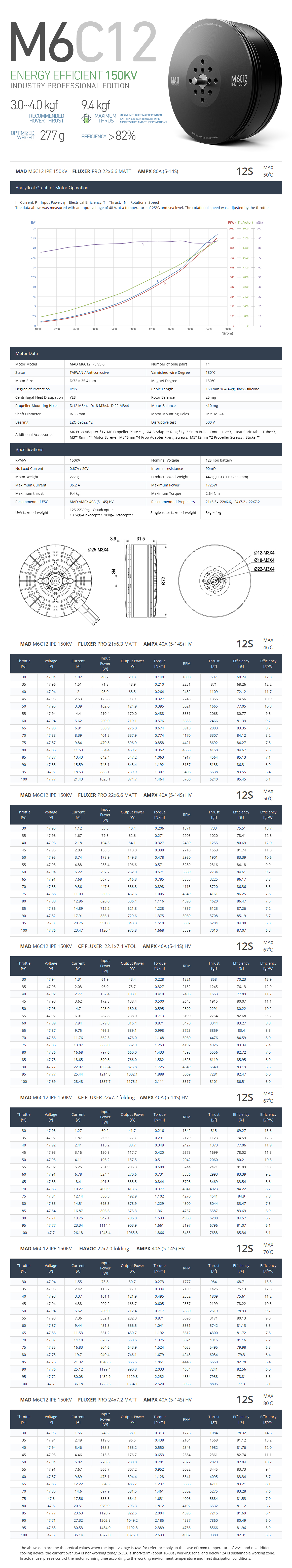

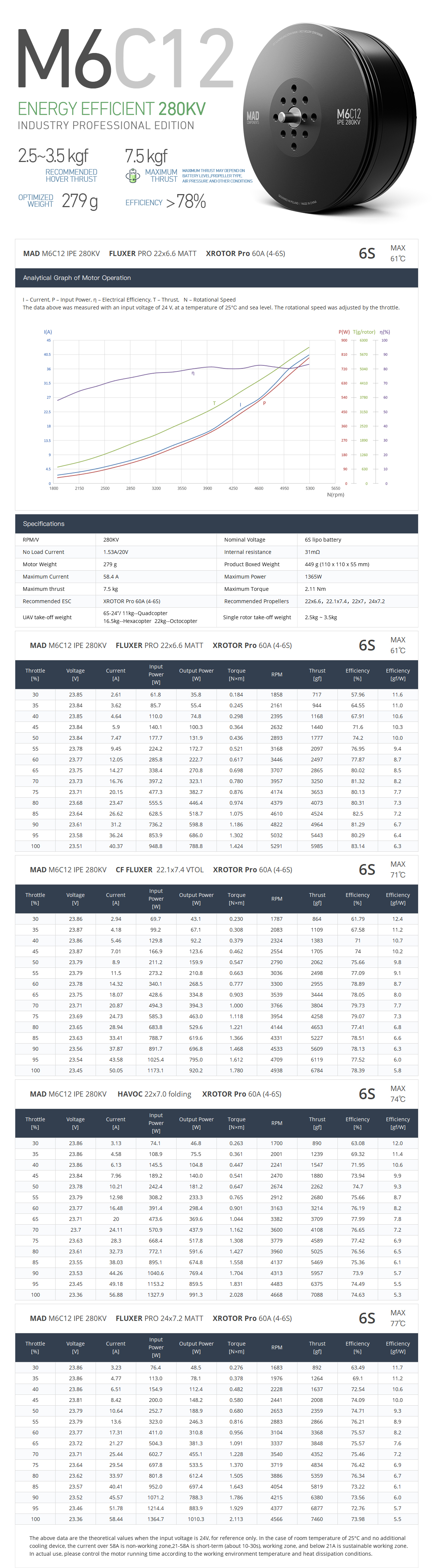

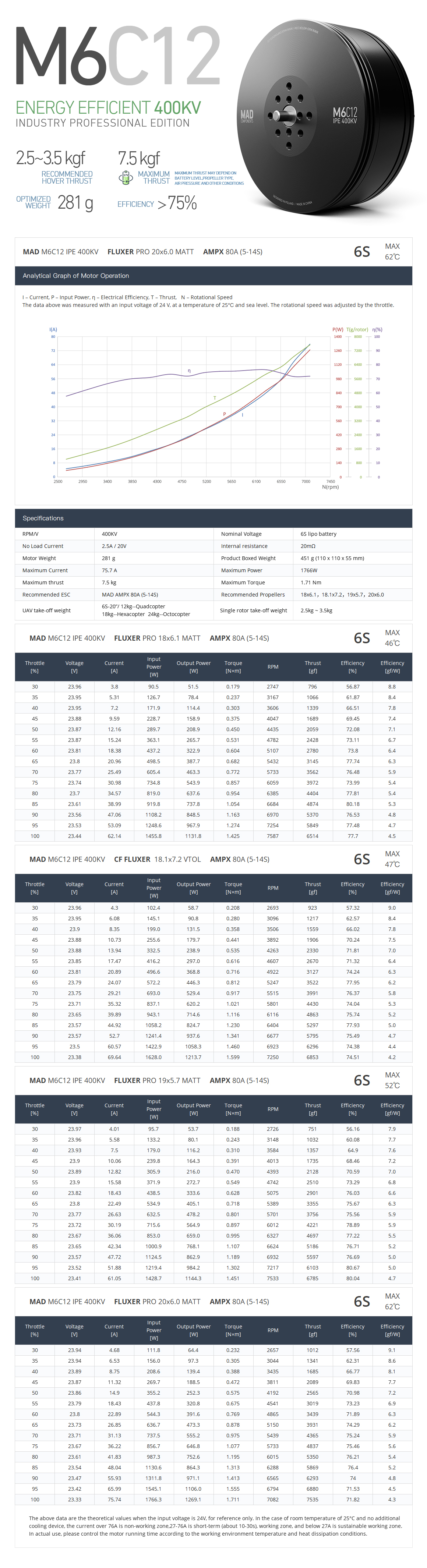

Motor Data |
|||
| Motor Model | MAD M6C12 IPE V3.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 35.4 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 696ZZ *2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
___________________________________________________________________________________________________________________________

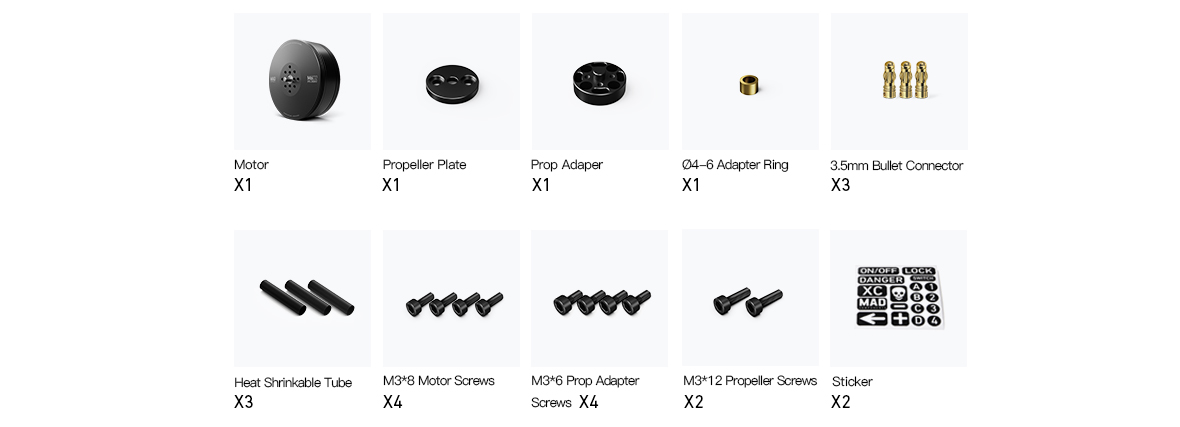

Accessories
More Information
| Manufacturer | MAD |
|---|
