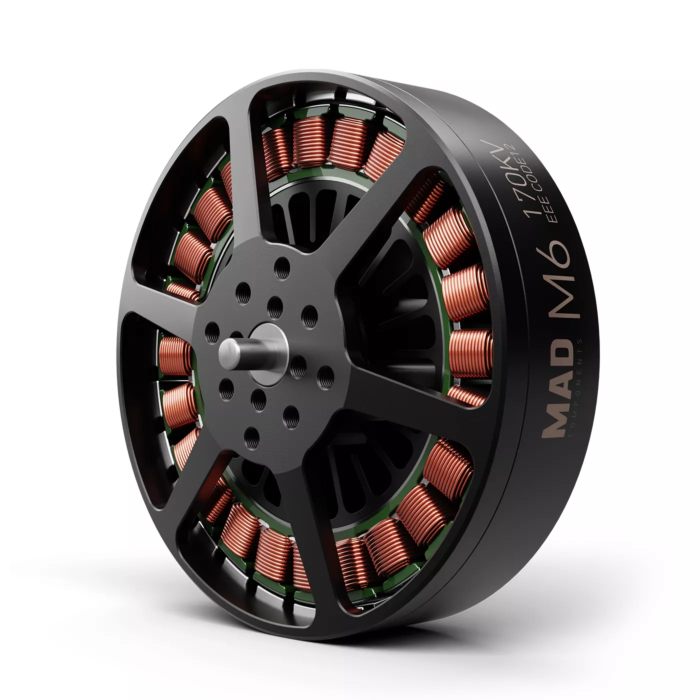

MAD Antimatter M6C12 EEE 150KV–400KV Heavy Lift Drone Motor

MAD Antimatter M6C12 EEE Heavy Lift Drone Motor (150KV / 170KV / 280KV / 400KV)

As low as: $129.00

only left for same day shipping. Order now!

MAD Antimatter M6C12 EEE Heavy Lift Drone Motor (150KV / 170KV / 280KV / 400KV)

The MAD Antimatter M6C12 EEE is a precision-engineered heavy lift brushless drone motor designed for industrial, agriculture, and high-payload multirotor platforms. Available in 150KV, 170KV, 280KV, and 400KV configurations, it delivers up to 10.8 kg of thrust per axis while supporting 6S–12S battery systems depending on KV selection and propeller setup. Built with high-efficiency laminations, refined rotor balance, anticorrosive treatment, and durable construction, the M6C12 EEE is validated through controlled testing for reliable operation in demanding environments. Ships from our U.S. distribution center.

About Antimatter M6C12 EEE

Designed for 2.5–5 kg single-axis payloads
Optimized for use with 18–24 inch carbon fiber propellers
Supports 6S to 12S voltage configurations for versatile applications

Key Features:

Provides up to 10.8 kg thrust per axis
Robust motor weight of 257g for enhanced durability and power
Engineered for maximum efficiency with large propellers
Validated for high performance and reliability in demanding conditions

Perfect for:

Heavy-lift multi-rotor drones requiring strong thrust and payload capacity
Drone builders seeking top-tier power within the ANTIMATTER lineup

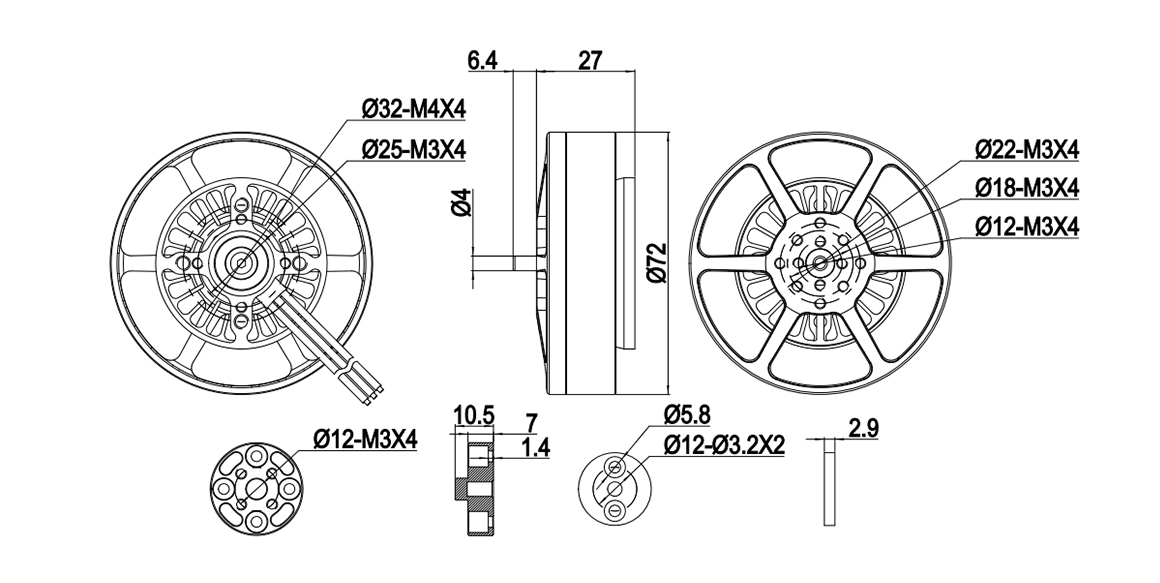

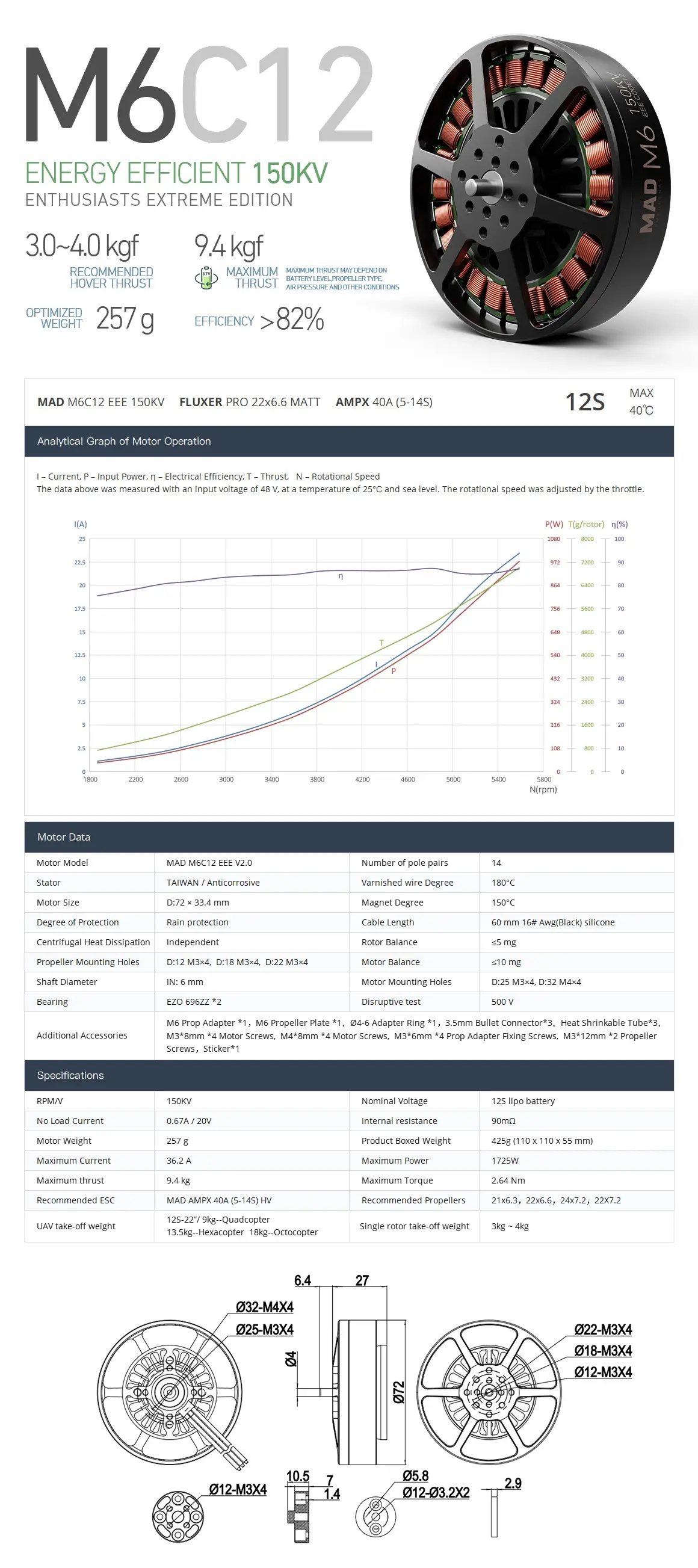

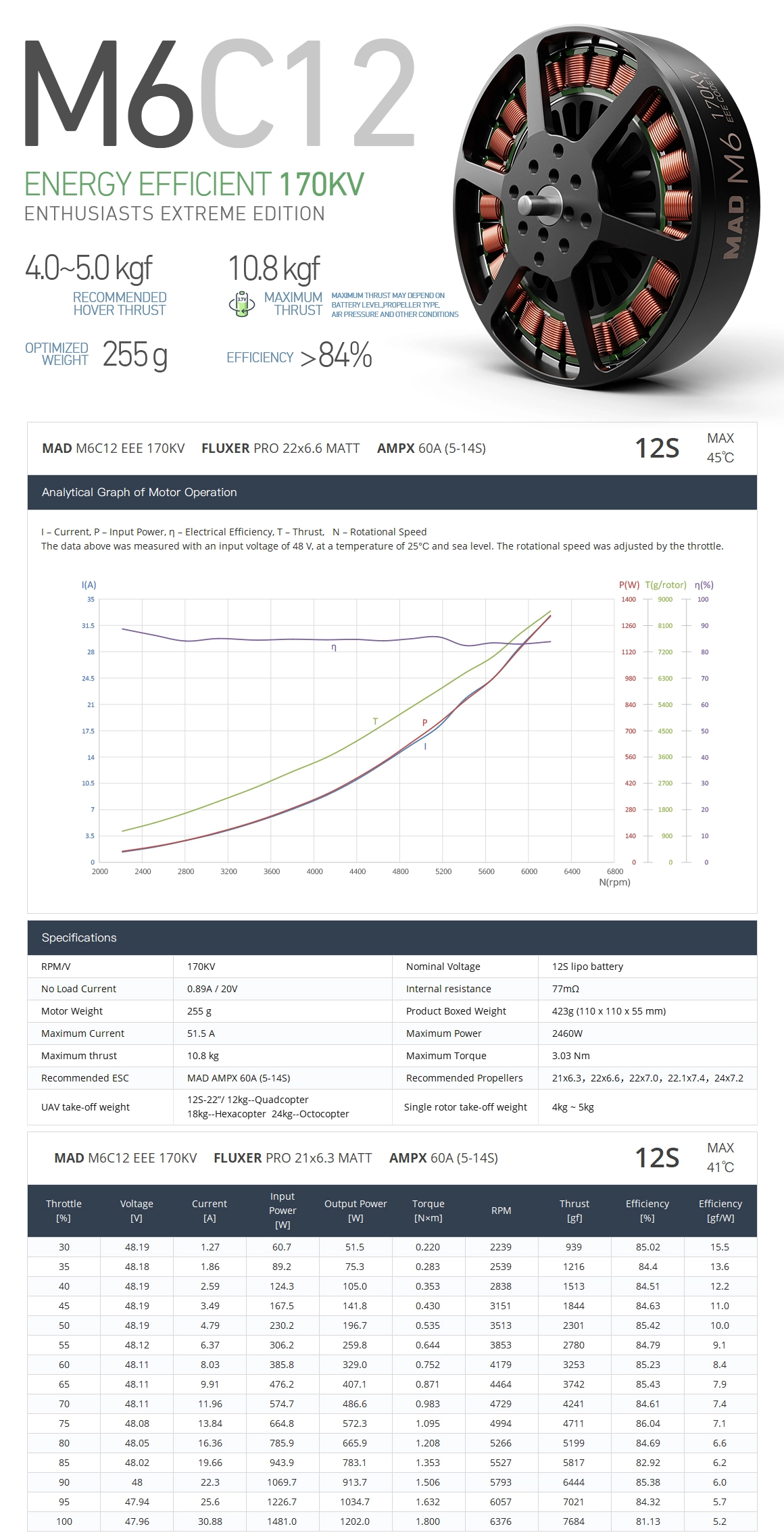

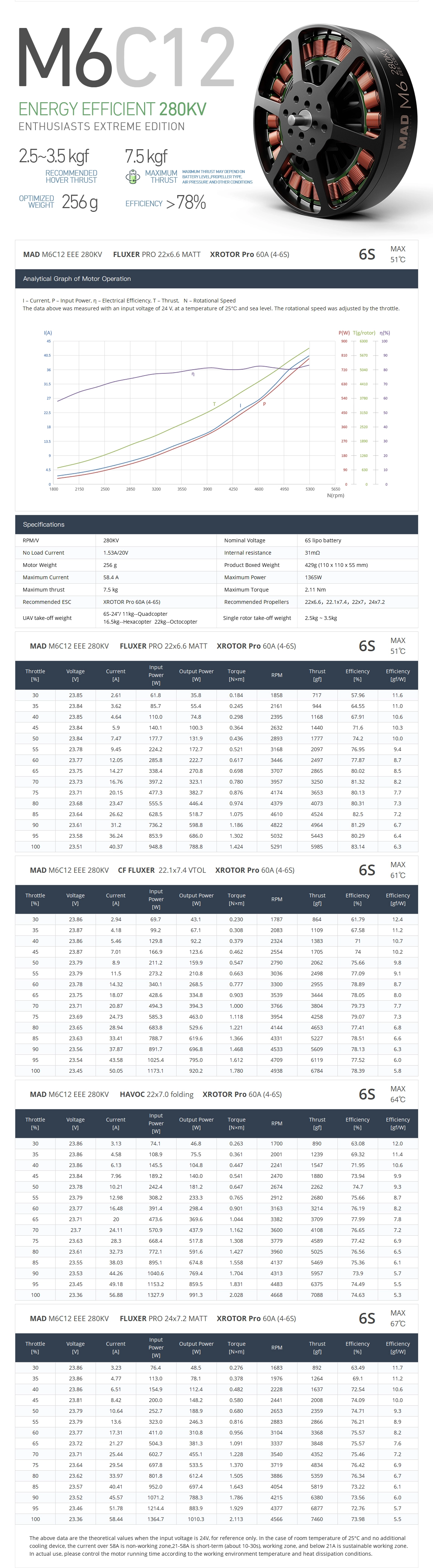

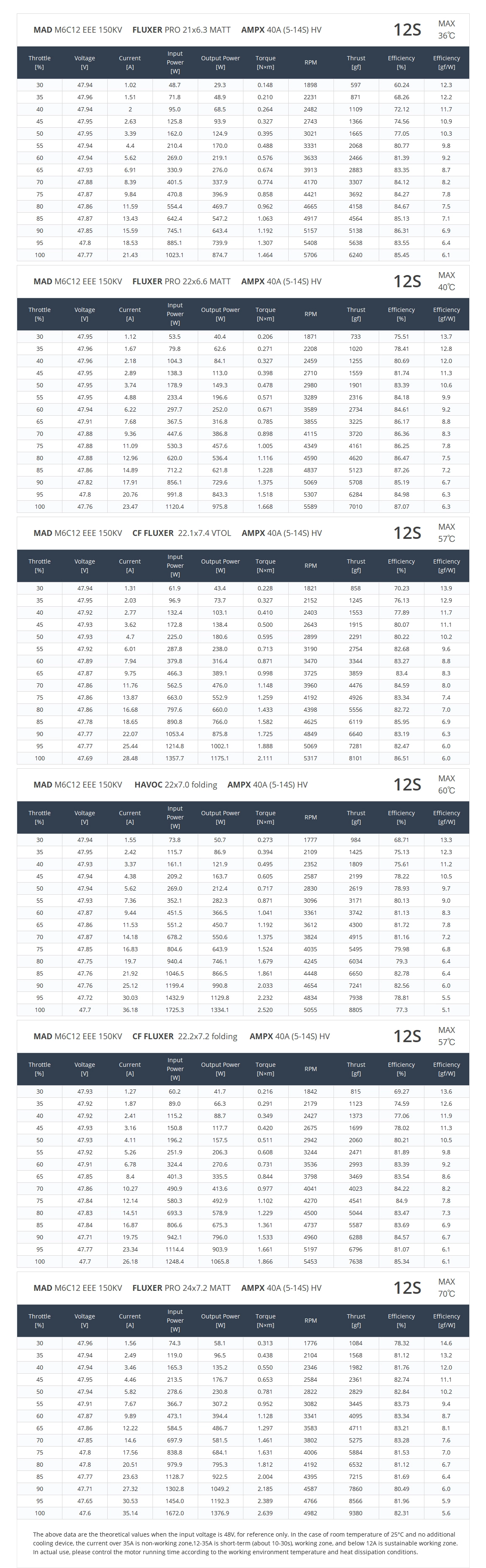

Motor Data

Motor Model	MAD M6C12 EEE V3.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:72 × 33.4 mm	Magnet Degree	150°C
Degree of Protection	Rain protection	Cable Length	60 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, 18 M3×4, 22 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M3×4, D:32 M4×4
Bearing	696ZZ *2	Disruptive test	500 V
