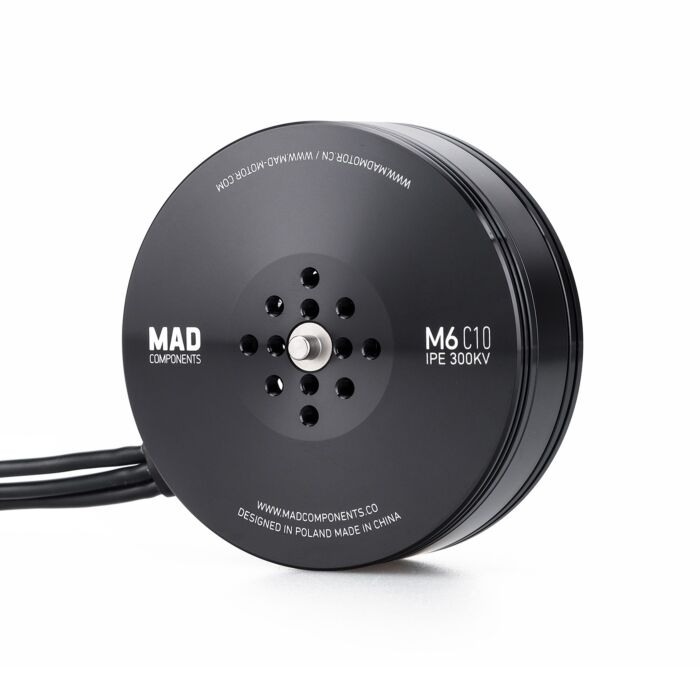

Antimatter M6C10 IPE V3 Drone Motor

$136.00

only left for same day shipping. Order now!

Antimatter M6C10 IPE V3 Drone Motor

M6C10 IPE V3

About this product

About M6C10 IPE V3.0

Launched after a full year of design and testing to optimize performance with 21–24 inch propellers
• Designed for 2.5–5 kg single-axis payloads, with a focus on reliability and high thrust output
• Supports a wide voltage range from 6S to 12S for flexible drone configurations

Key Features:
✔ Delivers up to 10.4 kg thrust per axis
✔ Sturdy 257g motor weight balances power and durability

Perfect for:
• Heavy-payload multi-rotor platforms requiring stable power delivery.
• Builders seeking reliable, high-thrust propulsion from a proven design.

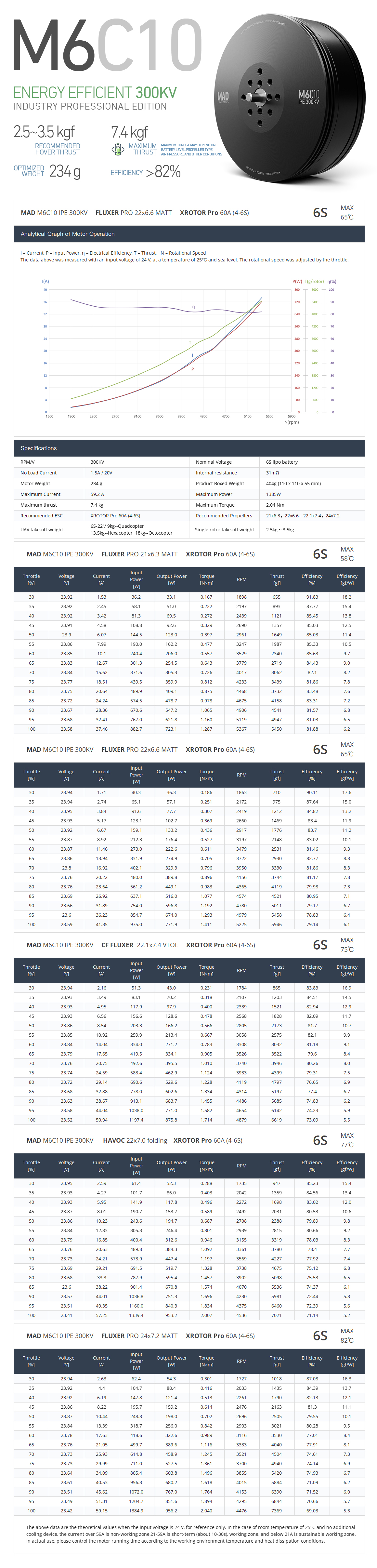

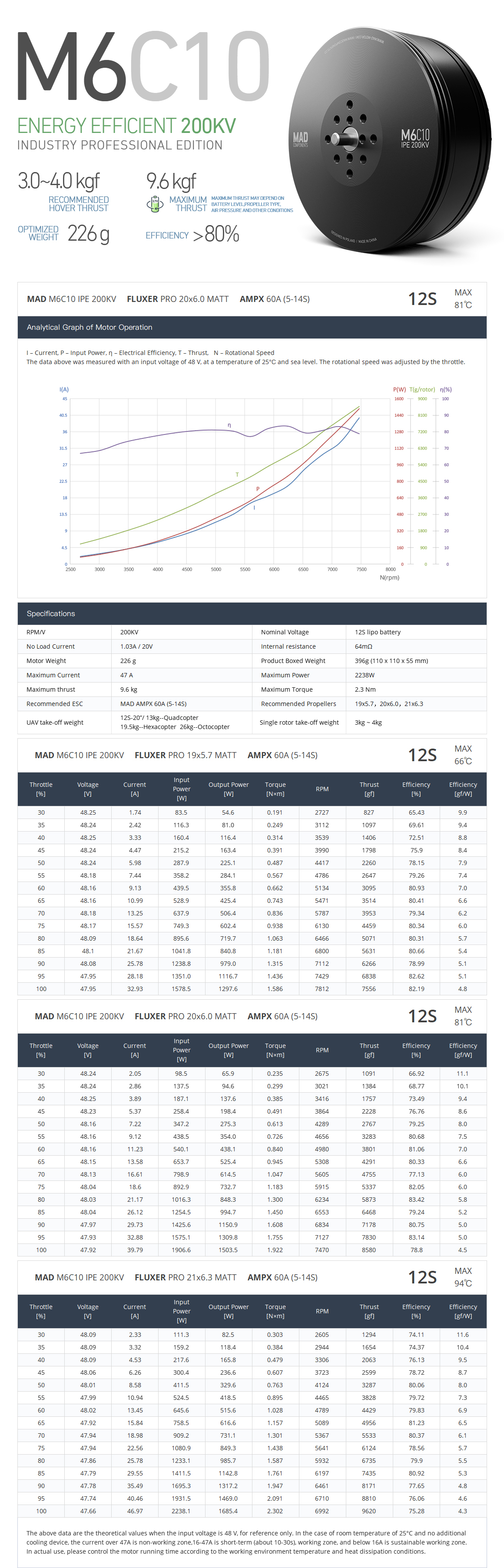

Motor Data
Motor Model	MAD M6C10 IPE V3.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C

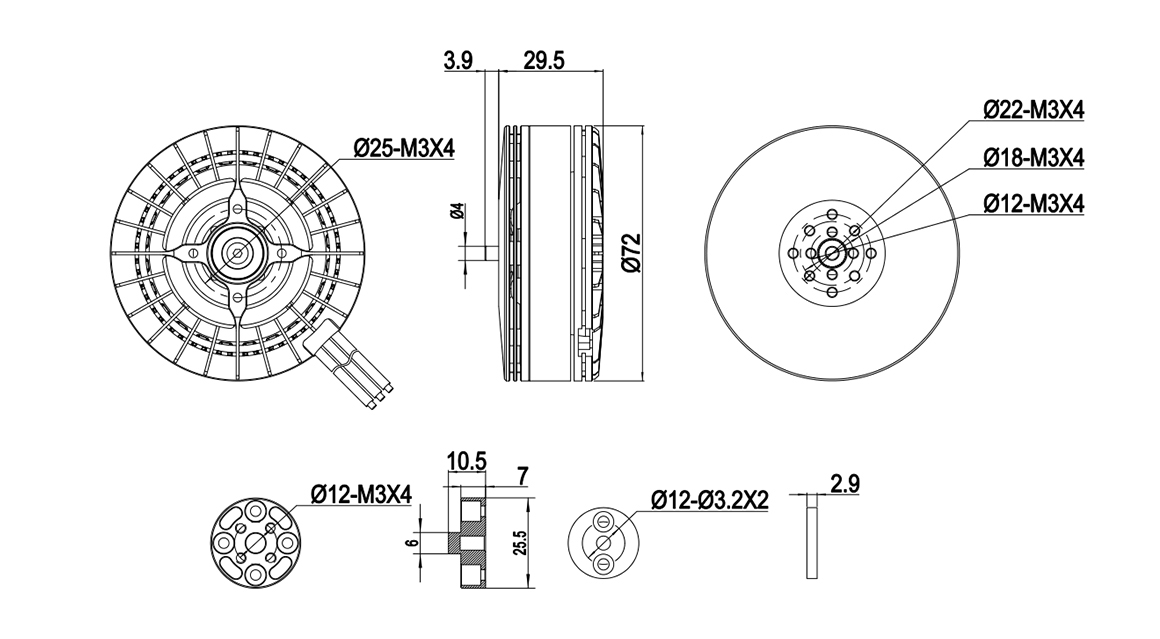

Motor Size	D:72 × 33.4 mm	Magnet Degree	150°C
Degree of Protection	IP45	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, 18 M3×4, 22 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M3×4
Bearing	696ZZ *2	Disruptive test	500 V
