Antimatter M6C10 EEE Drone Motor
As low as:
$119.00
As low as:
only left for same day shipping. Order now!
Antimatter M6C10 EEE Drone Motor
M6C10 EEE
About this product
About M6C10 EEE
Engineered for 2.5–5 kg single-axis payloads
• Optimized for use with 18–24 inch carbon fiber propellers
• Supports a broad voltage range from 6S to 12S
Key Features:
✔ Delivers up to 10.4 kg thrust per axis
✔ Lightweight motor design at 214g
✔ Designed for maximum efficiency with large propellers
✔ Tested for high performance and reliability
Perfect for:
• Medium to heavy-lift multi-rotor drones requiring 2.5–5 kg payload capacity per motor
• Builders focused on efficiency and power in the ANTIMATTER motor lineup
| Specification |
|||||||||
| Motor Model |
MAD M6C10 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:72 × 31.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:22 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4, D:32 M4×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
||||||
___________________________________________________________________________________________________________________________ Drawing and mount holes |
|||||||||

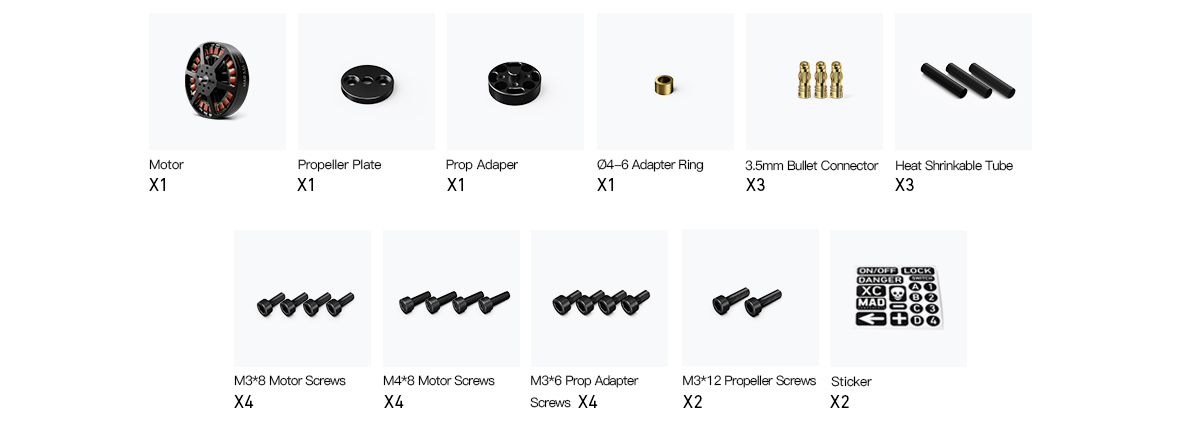

___________________________________________________________________________________________________________________________Accessories
More Information
| Manufacturer | MAD |
|---|
