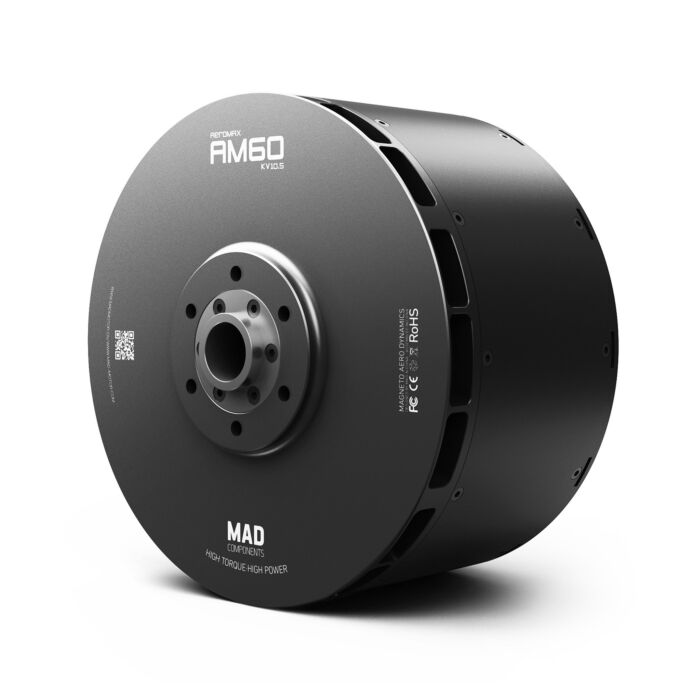

AM60 Heavy-Lift Drone Motor
As low as:
$1,370.00
As low as:
only left for same day shipping. Order now!
AM60 Heavy-Lift Drone Motor
AM60
About this product
| Motor Data | |||||||||
| Motor Model | MAD AeroMAX AM60 V1.0 | Number of pole pairs | 21 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 220°C | ||||||

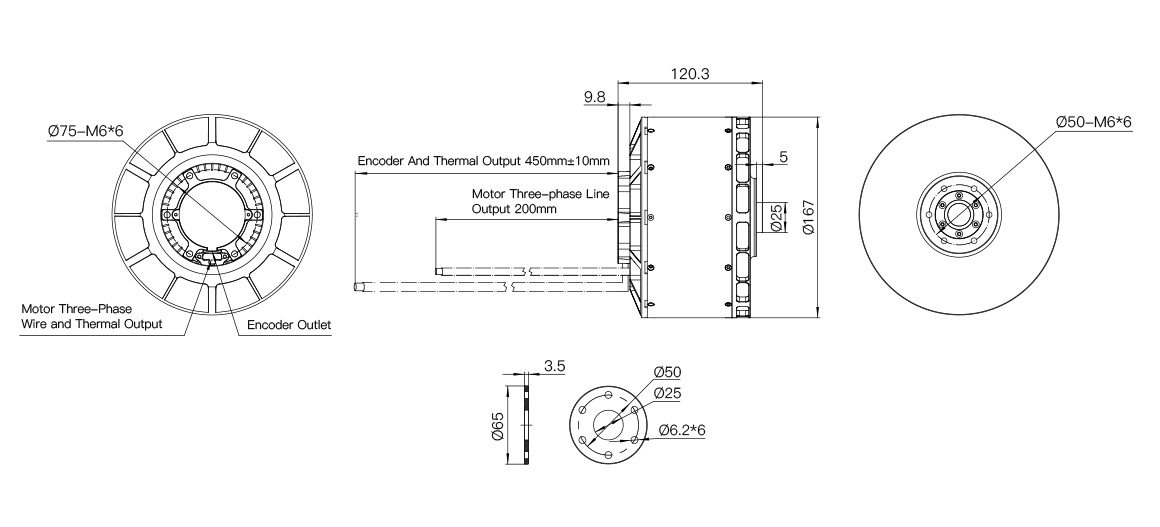

| Motor Size | D:167 × 120.3 mm | Magnet Degree | 180°C | ||||||
| Degree of Protection | IP45 | Cable Length | 200 mm (extended Enameled wires） | ||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg | ||||||
| Propeller Mounting Holes | D:50 M6×6 | Motor Balance | ≤20 mg | ||||||
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:75 M6×6 | ||||||
| Bearing | NSK 6205 ZZ *2 NSK 6817 ZZ*1 | Disruptive test | 1000 V | ||||||
More Information
| Manufacturer | MAD |
|---|
