AM32 100A 12S ESC

$89.00

only left for same day shipping. Order now!
Model: 0102DT0306

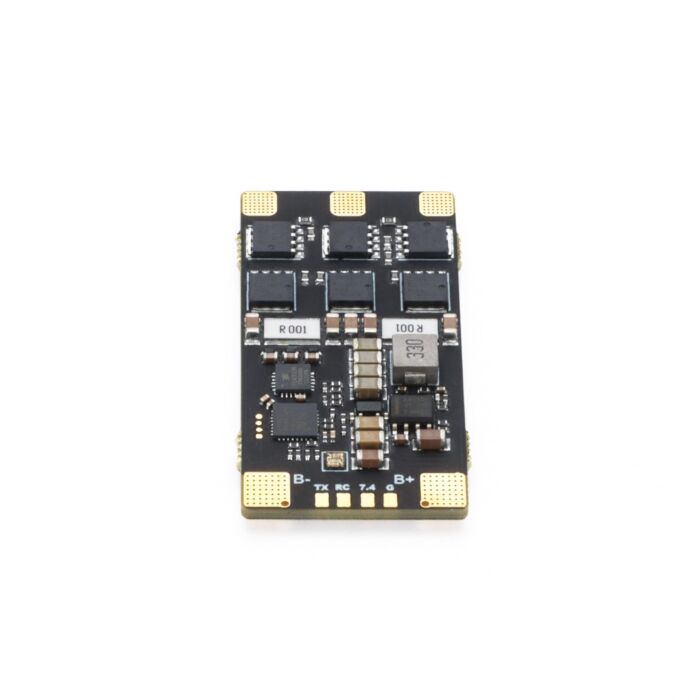

AM32 100A 12S ESC
AM32 100A 12S ESC uses the new STM32-bit M4 high-performance motor-specific processor, integrated three-in-one driver, ultra-high-speed response, and smooth flight experience

Hardcore Specifications

  • Current Handling:

    • Continuous: 100A (real-world sustained)

    • Burst (5s): 150A+ (with proper cooling)

  • Voltage Range: 3-12S LiPo (11.1V-50.4V)

  • Firmware: AM32 (supports BLHeli_32 parity features)

  • Key Upgrades:

    • 600MHz ARM Cortex processor (vs 480MHz in typical BLHeli_32)

    • 96kHz PWM capability (ultra-smooth operation)

    • Dual-wire current sensing (±1% accuracy)

      Nuclear-Grade Setup

      Wiring:

      • Battery Input: XT90H + 2× 1000μF 63V capacitors (mandatory for 12S)

      • Signal Lines:

        • Double-shielded 28AWG for DShot1200

        • Optical isolation recommended for >10S builds

      Thermal Management:

      • Minimum Cooling:

        • 4mm copper baseplate + 30×30mm heatsink

        • 12V 40mm fan (≥7CFM) for sustained >80A

      • Extreme Cooling:

        • Vapor chamber + liquid cooling loop (for 150A bursts)

AM32 100A 12S Specs

More Information

Battery Voltage 8-12S
Manufacturer MAD
